TOP 600 XTPRO: Service & Maintenance Manual - rev. 2.0
Page 7.12
7.11. DISASSEMBLING THE CHAIN

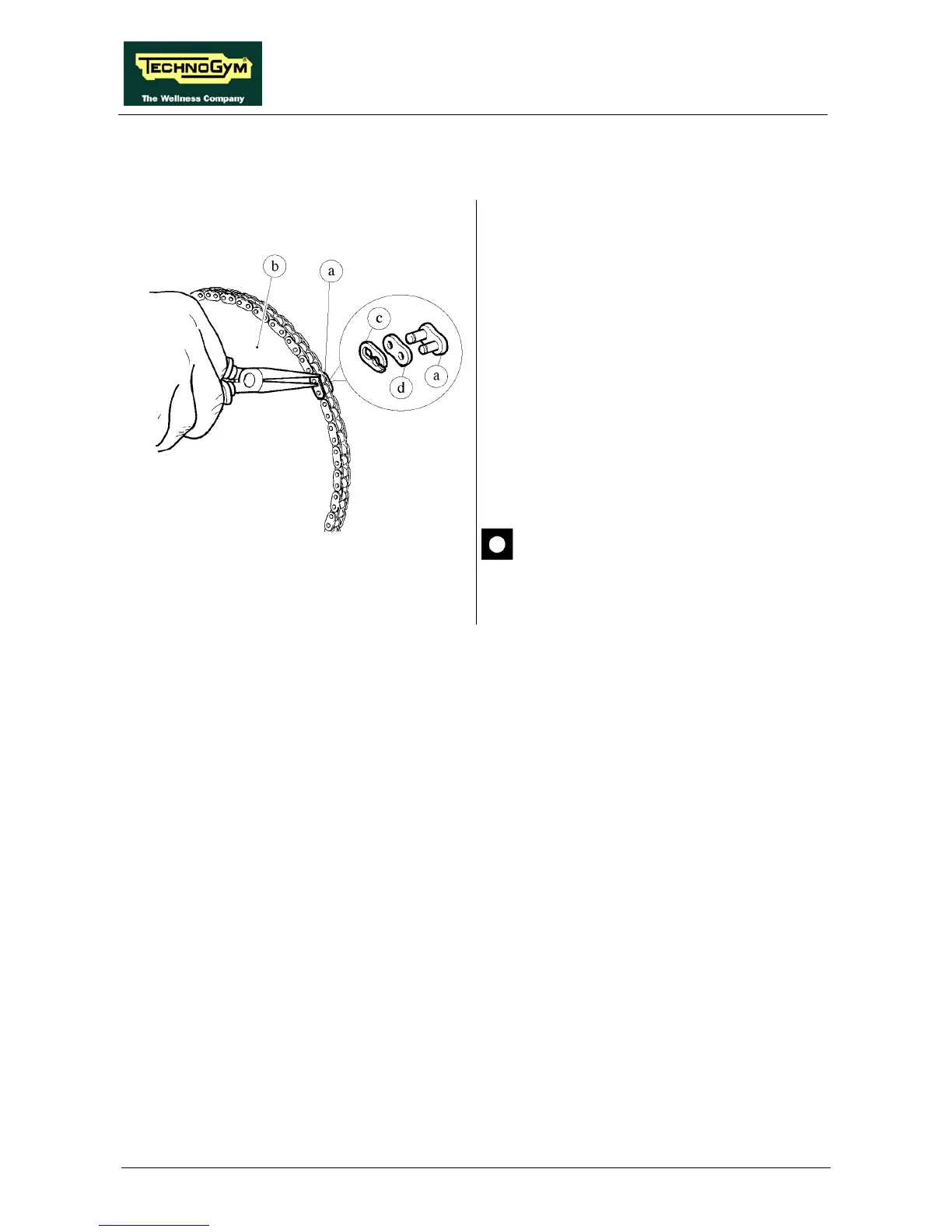

Figure 7.11-1
Carry out the procedures described in paragraph
7.6. “Disassembling the right and left side
casings”.
1. Turn the CHAIN until the connecting link a
is on the sprocket wheel b.
2. Release clip c from the link using the special
pliers.
3. Remove the connecting plate d.
4. Remove the connecting link a.
5. Remove the CHAIN.
To reassemble the CHAIN, carry out the above
steps in reverse order.
After completing this procedure, adjust
the alignment and tension of the CHAIN
as described in paragraphs 8.3. and 8.4. .
