TOP 600 XTPRO: Service & Maintenance Manual - rev. 2.0
Page 12.8
12.2.2. SEAT ASSEMBLY SLIDING

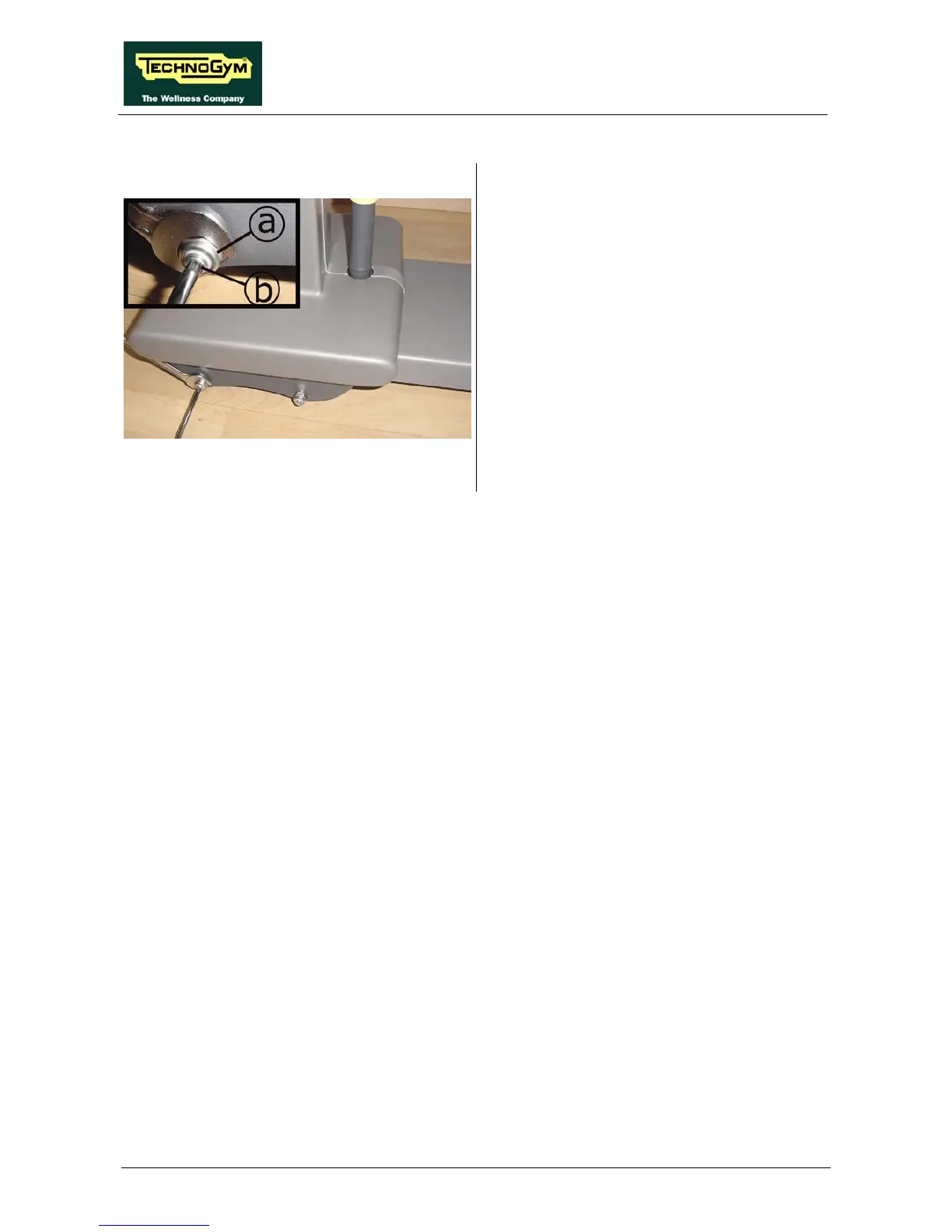

Figure 12.2.2-1
With the seat assembly mounted on the machine:
For all the eccentric pins:
1. Loose the nut a using a 17-mm wrench.
2. Adjust the eccentric pin b using a 5-mm
Allen wrench in such a way that the saddle
moves smoothly and does not have any
excessive play vertically.
3. Separate and re-insert the seat assembly a
few times, making sure it slides easily onto
the guides in the machine.
4. After completing the adjustment, lock down
what previously backed off.
