8.6. WEAR OF BRUSHES

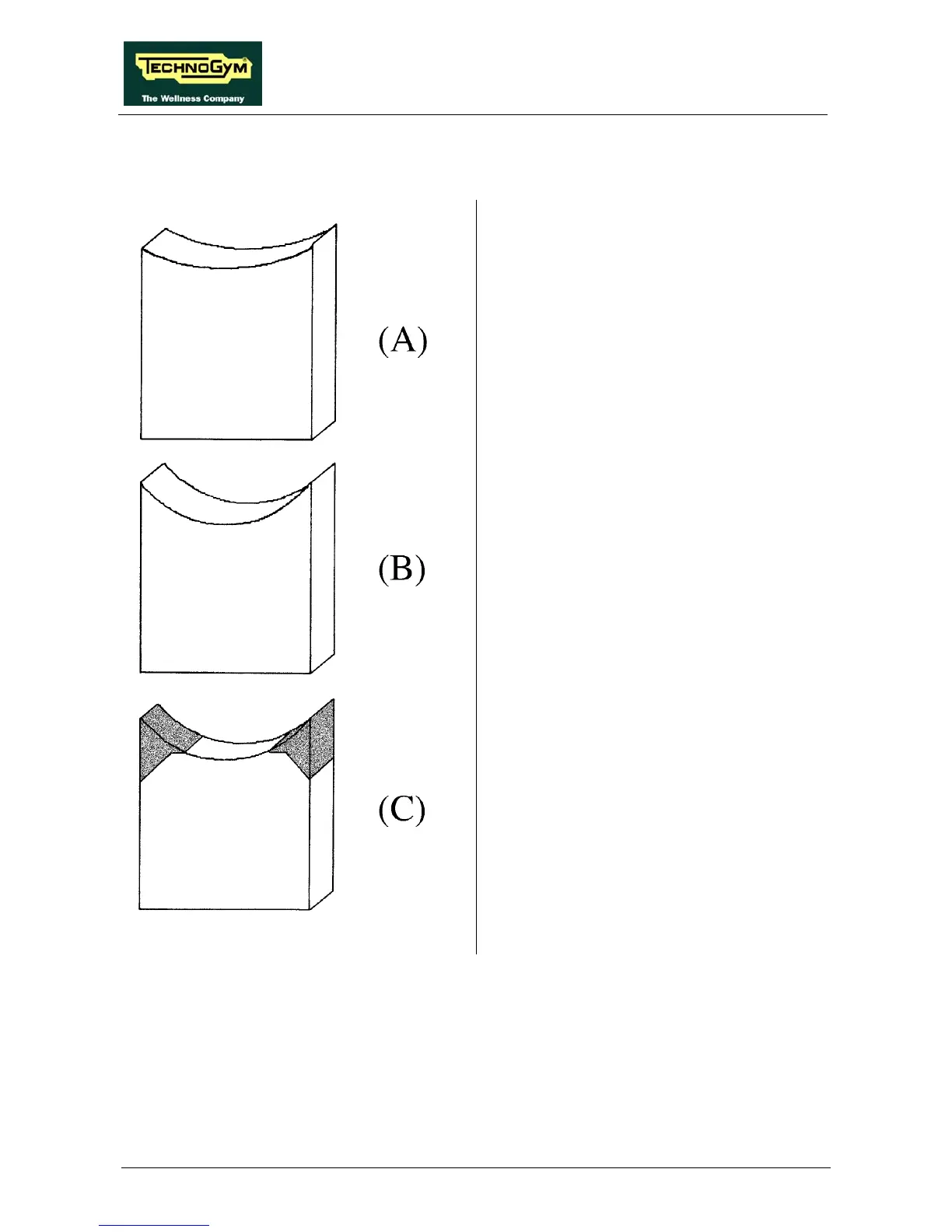

Figure 8.6-1
Carry out the procedure described in paragraph
7.16. “Disassembling the alternator brushes”.
1. Inspect the 2 brushes for wear, referring to
the figures at left and the descriptions below:
• The brush shown in (A) is correctly
worn.
• The brush shown in (B) is irregularly
worn and may result in noise and wear of
the alternator collector.
2. Using abrasive paper, eliminate the pointed
edges as shown in figure (C).
3. After completing the adjustment, lock down
what previously backed off.
