12.1. DISASSEMBLY OF COMPONENTS
12.1.1. DISASSEMBLING SEAT

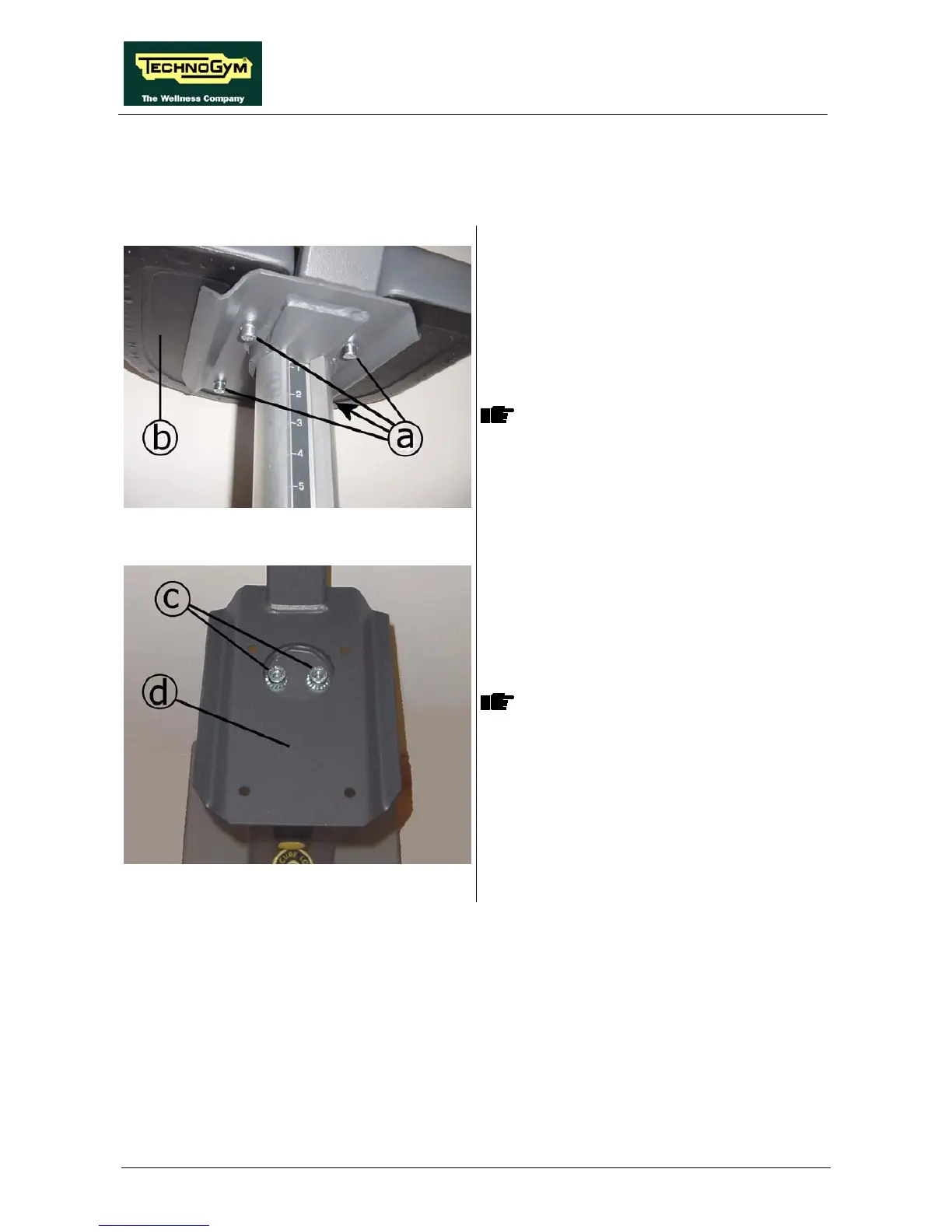

Figure 12.1.1-1
1. Turn off the machine and unplug the mains
lead from the wall outlet.
2. Remove the seat assembly from the machine.
3. Back off the 4 screws a using an 6-mm Allen
wrench.
During reassembly, remember to fit the
washers on screw (a).
4. Remove the seat b.
Figure 12.1.1-2
5. Back off the 2 screws c using a 10-mm Allen
wrench.
During reassembly, remember to fit the
washers on screw (c).
6. Remove the seat support d.
To reassembly the seat, carry out the above steps
in reverse order.
