TOP 600 XTPRO: Service & Maintenance Manual - rev. 2.0
7.12. DISASSEMBLING THE PULLEY

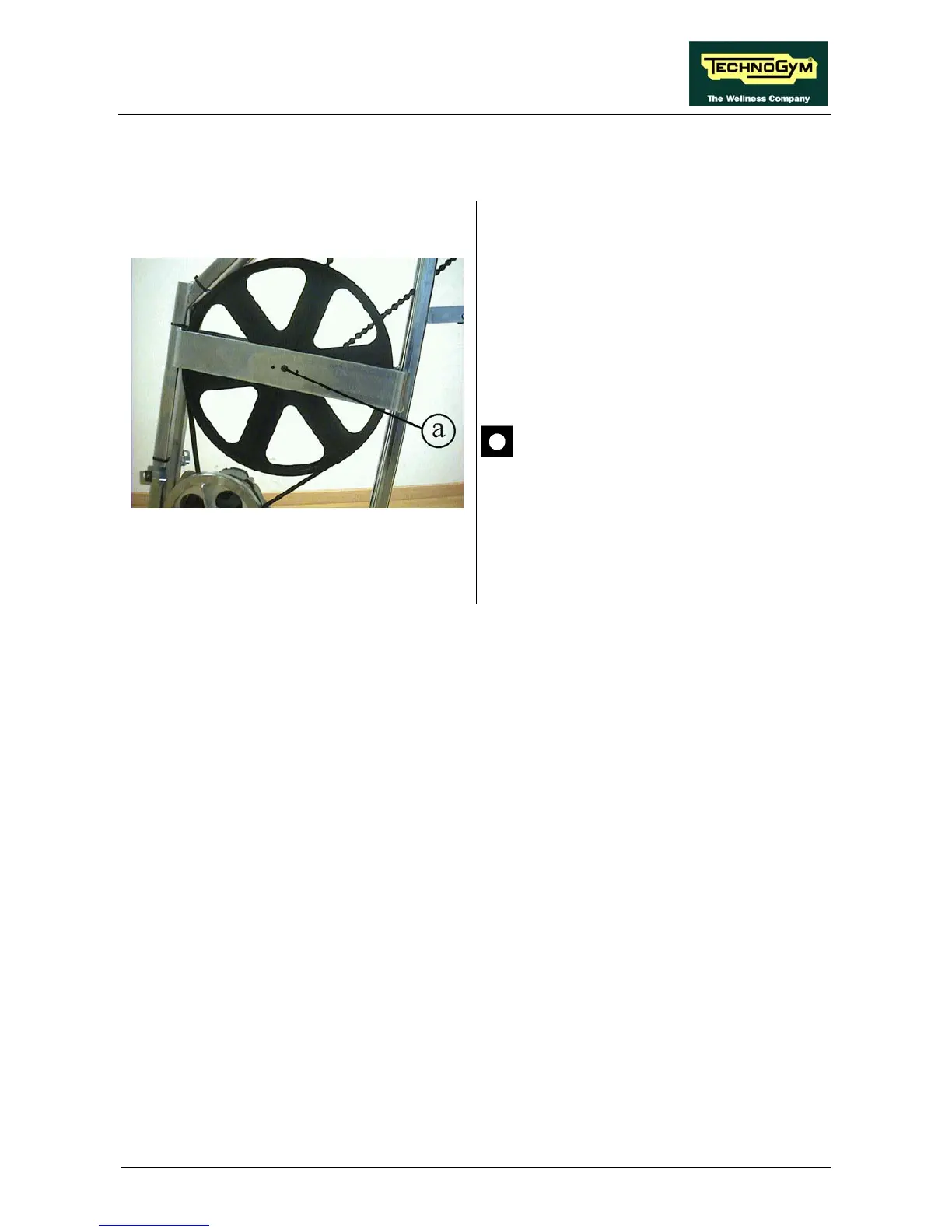

Figure 7.12-1
Carry out the procedures described in paragraphs
7.10. “Disassembling the belt” and 7.11.
“Disassembling the chain”.
Working from the left side:
1. Push pin a until it comes out from the right
side.
2. Remove the PULLEY from the side.
After completing the procedure, adjust
the alignment and tension of the chain
and belt as described in paragraphs 8.1.
, 8.2. , 8.3. and 8.4. .
To reassemble the PULLEY, carry out the above
steps in reverse order.
Page 7.13
