7.10. DISASSEMBLING THE BELT

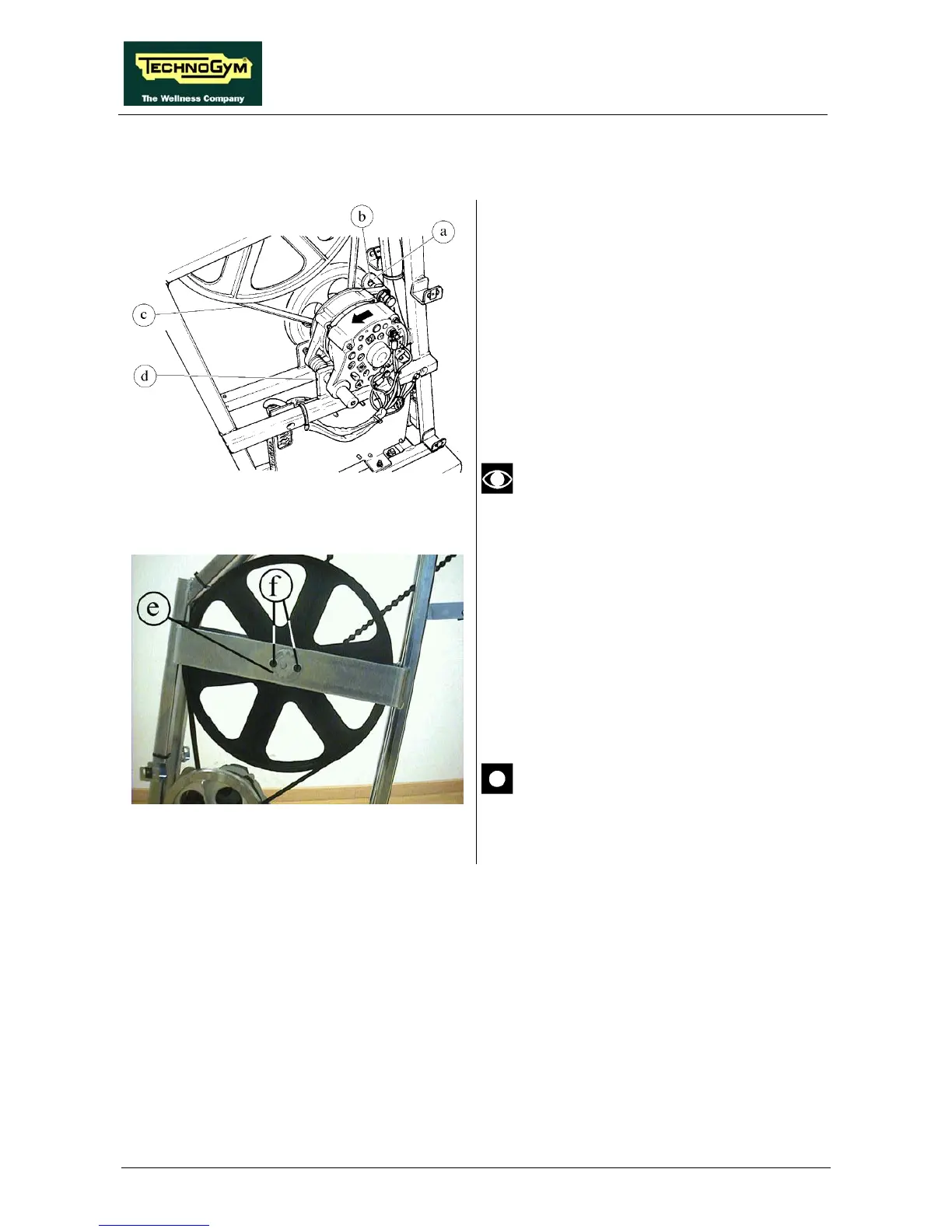

Figure 7.10-1
Carry out the procedures described in paragraph
7.6. “Disassembling the right and left side
casings”.
1. Back off nut a of belt tension rod b using a
17-mm wrench.
2. Back off dowel d with a 4-mm hex T-
wrench.
3. Move the alternator until BELT c can be
removed.
To facilitate the operation, the belt can
first be removed from the pulley.
Figure 7.10-2
From both sides of the machine:
4. Use a marker pen to fix a reference index
between cam e and the machine frame to
facilitate readjustment during reassembly.
5. Unscrew the 2 screws f which fix the cam to
the machine frame, using a 4-mm hex T
wrench.
6. Disassemble the left hand cam.
The 2 cams are different: the one on the
left is threaded, the one on the right is
not.
Continued on following pages →
