TOP 600 XTPRO: Service & Maintenance Manual - rev. 2.0

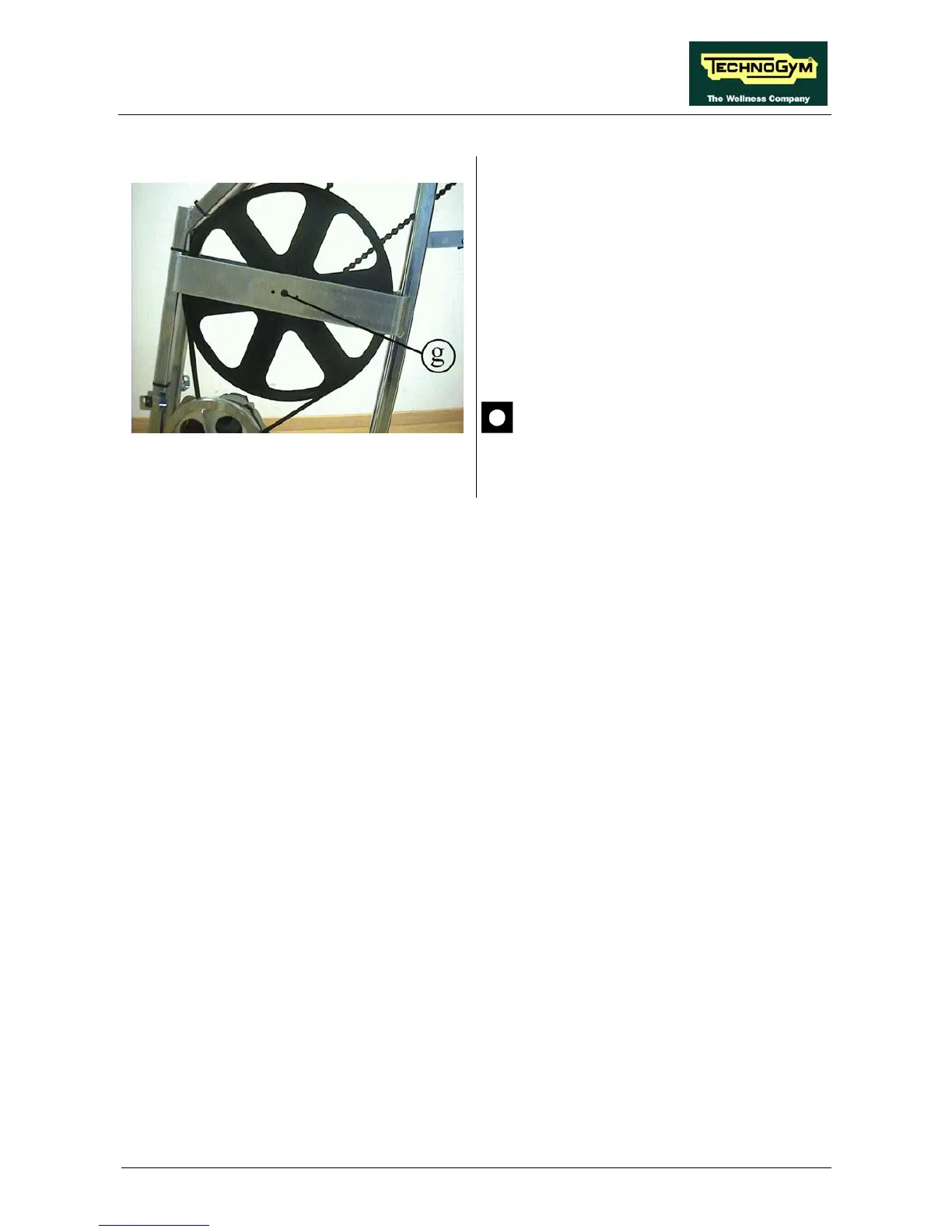

Figure 7.10-3
Working from the left side:
7. Remove snap ring g using the special pliers.
8. Push the pin toward the right until there is
enough space for BELT to pass through.
9. Remove the BELT.
To reassemble the BELT, follow the above steps
in reverse order.
After completing the procedure, adjust
the alignment and tension of the belt as
instructed in paragraphs 8.1. 8.2.
Page 7.11
