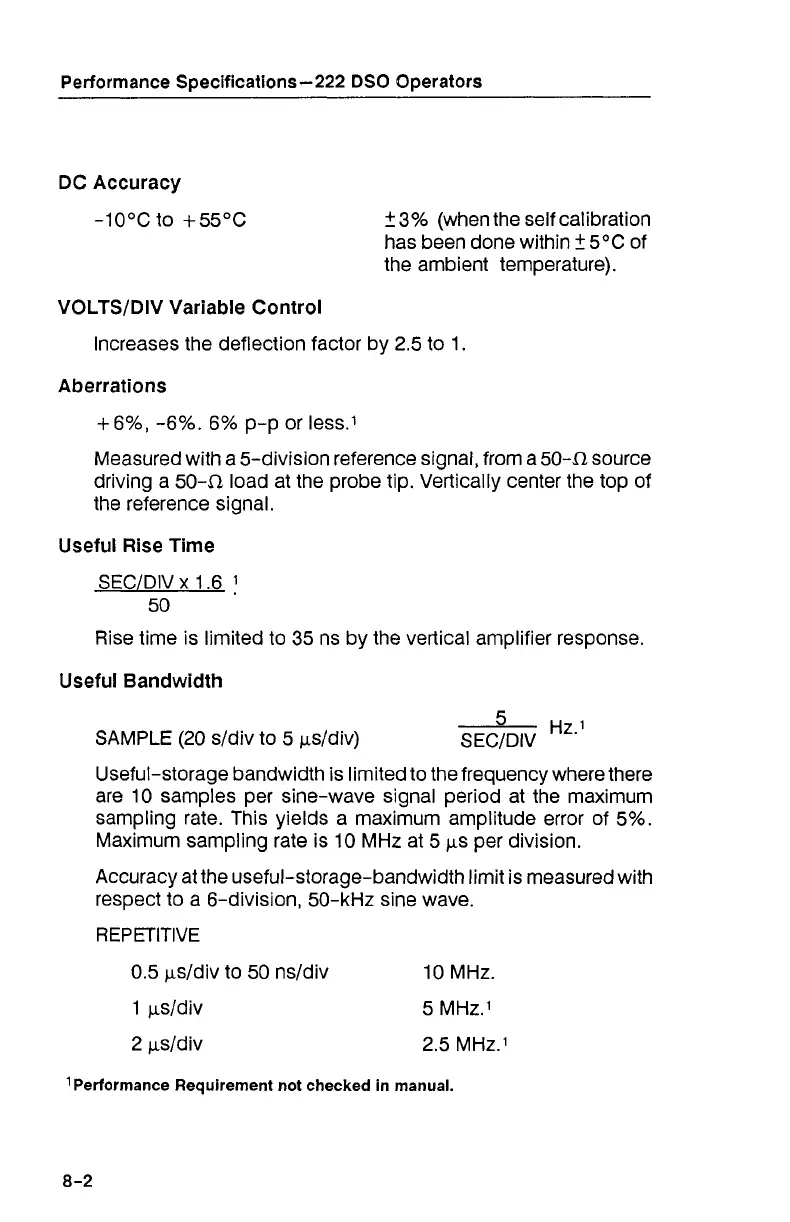

Performance S~ecifications-222
DSO
O~erators
DC Accuracy
-10°C to +55"C
2
3%
(when the self calibration
has been done within
2
5OC of
the ambient temperature).
VOLTSIDIV Variable Control
Increases the deflection factor by 2.5 to 1.
Aberrations
+
6%, -6%. 6% p-p or less.'
Measured with a 5-division reference signal, from
a
50-52 source
driving a 50-52 load at the probe tip. Vertically center the top of
the reference signal.
Useful Rise Time
SECIDIV x 1.6
1
50
Rise time is limited to 35 ns by the vertical amplifier response.
Useful Bandwidth
SAMPLE (20
sldiv to 5 Ksldiv)
Hz.1
SECIDIV
Useful-storage bandwidth is limited to the frequency where there
are 10 samples per sine-wave signal period at the maximum
sampling rate. This yields a maximum amplitude error of 5%.
Maximum sampling rate is 10 MHz at 5
ks per division.
Accuracy at the useful-storage-bandwidth limit is measured with
respect to a 6-division, 50-kHz sine wave.
REPETITIVE
0.5 ~sldiv to 50 nsldiv
10 MHz.
1
~.~s/div 5 MHz.'
2 pldiv 2.5 MHz.'
Performance Requirement not checked
in
manual.
