222 DSO Operators-How It Works

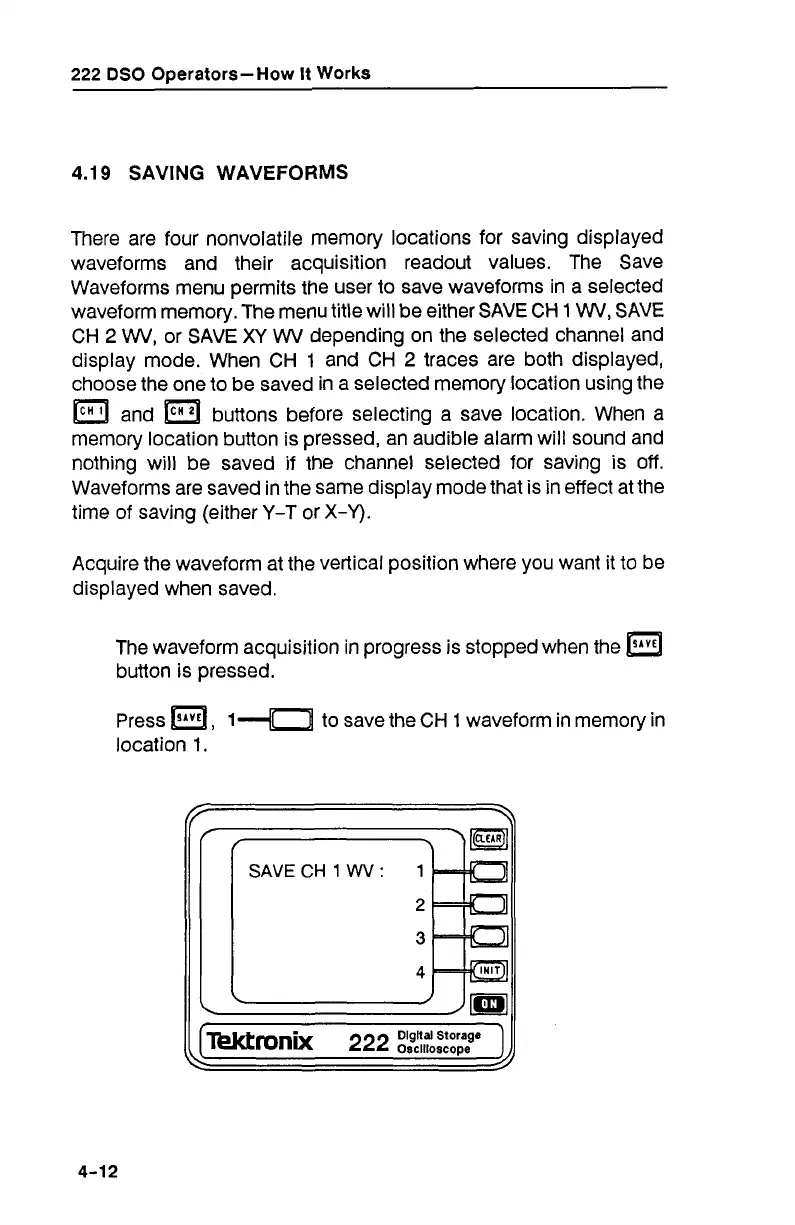

4.1 9 SAVING WAVEFORMS
There are four nonvolatile memory locations for saving displayed
waveforms and their acquisition readout values. The Save
Waveforms menu permits the user to save waveforms in a selected
waveform memory. The menu title will be either
SAVE CH 1 WV, SAVE
CH 2 WV, or SAVE XY WV depending on the selected channel and
display mode. When CH
1 and CH 2 traces are both displayed,
choose the one to be saved in a selected memory location using the
ItH and
buttons before selecting a save location. When a
memory location button is pressed, an audible alarm will sound and
nothing will be saved if the channel selected for saving is off.
Waveforms are saved in the same display mode that is in effect at the
time of saving (either Y-T or
X-Y).
Acquire the waveform at the vertical position where you want it to be
displayed when saved.
The waveform acquisition in progress is stopped when the
button is pressed.
Press
I9'.YE1, 1- to save the CH 1 waveform in memory in
location
1.
,
SAVECHI WV: 1
