What the Controls Do-222 DSO Operators
3.9
REAR PANEL CONTROLS AND CONNECTORS
See Figure
3-10
for the following items.
a
HORlZ ALIGN
-
a screwdriver adjustment used to align the dis-
play with the horizontal graticule lines. The ALIGN test pattern
available in the AUX Functions menu provides a display to aid in
adjusting this control.
@
VERT ALIGN
-
a screwdriver adjustment used to align the dis-
play with the vertical graticule lines. Use the ALIGN test pattern
available in the AUX Functions menu as an aid in adjusting this
control.
@
FOCUS
-
a screwdriver adjustment used to adjust for best focus

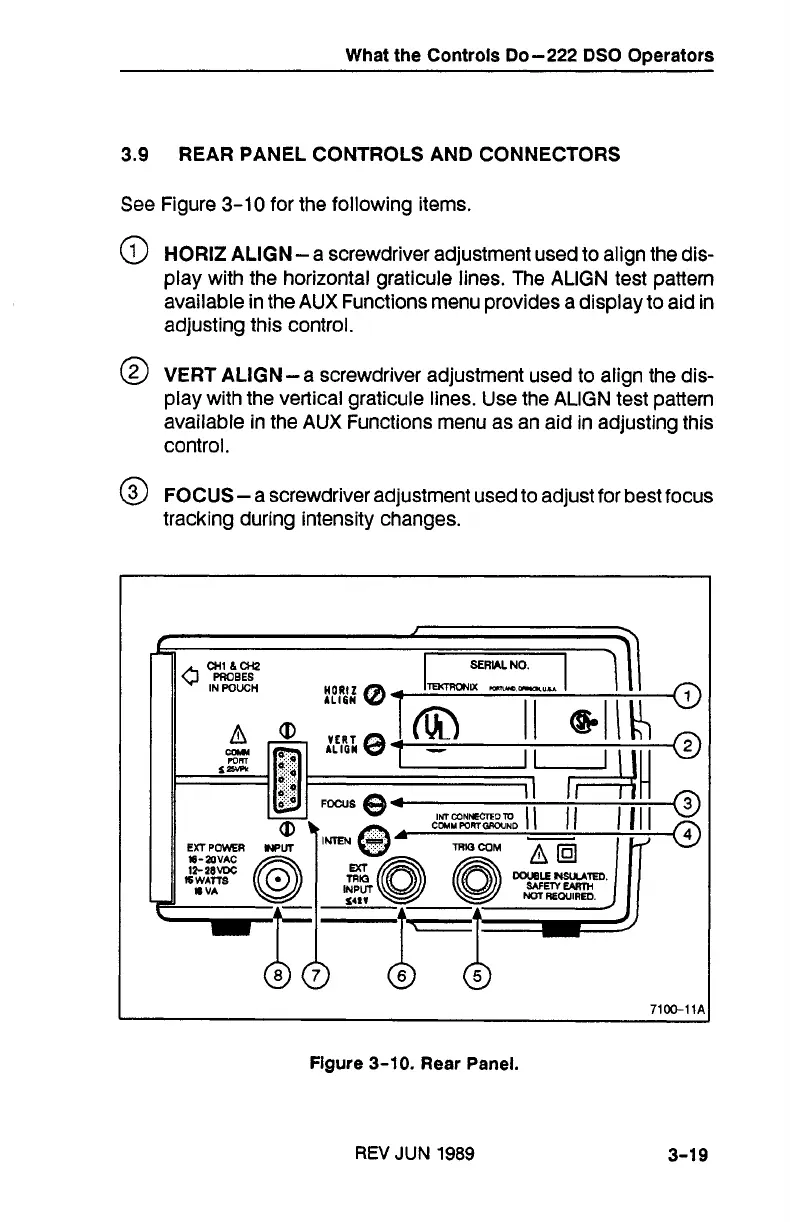

Figure 3-10. Rear Panel.
REV
JUN
1989
