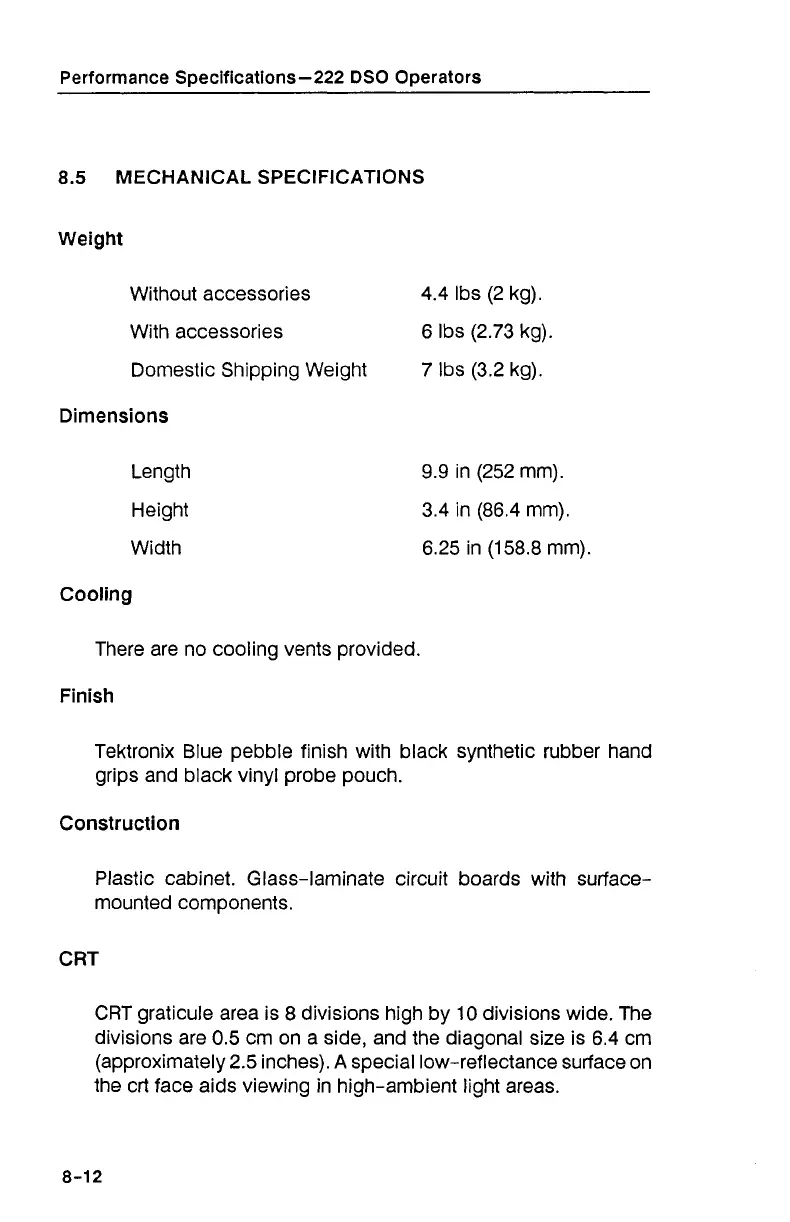

Performance Specifications-222 DSO Operators
8.5
MECHANICAL SPECIFICATIONS
Weight
Without accessories
4.4 Ibs (2 kg).
With accessories
6 Ibs (2.73 kg).
Domestic Shipping Weight 7 Ibs (3.2 kg).
Dimensions
Length
Height
Width
9.9
in (252 mm).
3.4 in (86.4 mm).
6.25 in (158.8 mm).
Cooling
There are no cooling vents provided.
Finish
Tektronix Blue pebble finish with black synthetic rubber hand
grips and black vinyl probe pouch.
Construction
Plastic cabinet. Glass-laminate circuit boards with surface-
mounted components.
CRT
CRT
graticule area is
8
divisions high by 10 divisions wide. The
divisions are 0.5 cm on a side, and the diagonal size is 6.4 cm
(approximately 2.5 inches).
A
special low-reflectance surface on
the crt face aids viewing in high-ambient light areas.
