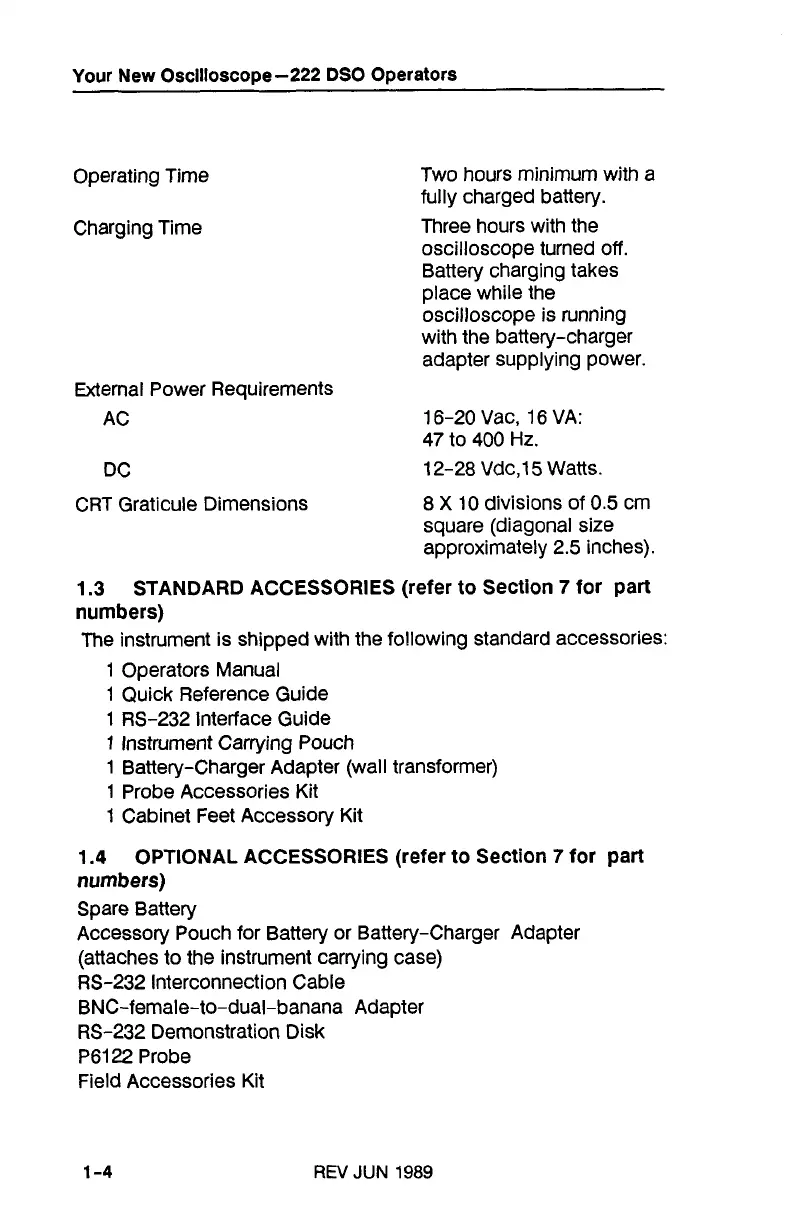

Your New Oscilloscope-222 DSO Operators
Operating Time
Charging Time
Two hours minimum with a
fully charged battery.
Three hours with the
oscilloscope turned off.
Battery charging takes
place while the
oscilloscope is running
with the battery-charger
adapter supplying power.
External Power Requirements
AC 16-20 Vac, 16 VA:
47 to 400
Hz.
DC 12-28 Vdc, 15 Watts.
CRT Graticule Dimensions
8
X 10 divisions of 0.5 cm
square (diagonal size
approximately 2.5 inches).
1.3
STANDARD ACCESSORIES (refer to Section 7 for part
numbers)
The instrument is shipped with the following standard accessories:
1 Operators Manual
1 Quick Reference Guide
1 RS-232 Interface Guide
1 Instrument Carrying Pouch
1 Battery-Charger Adapter (wall transformer)
1 Probe Accessories Kit
1 Cabinet Feet Accessory Kit
1.4
OPTIONAL ACCESSORIES (refer to Section 7 for part
numbers)
Spare Battery
Accessory Pouch for Battery or Battery-Charger Adapter
(attaches to the instrument carrying case)
RS-232 Interconnection Cable
BNC-female-to-dual-banana Adapter
RS-232 Demonstration Disk
P6122 Probe
Field Accessories Kit
REV JUN 1989
