Section 3 -222 DSO Operators
SECTION 3
CONTROLS AND INDICATORS
3.1 CONTROL REFERENCE TABLES

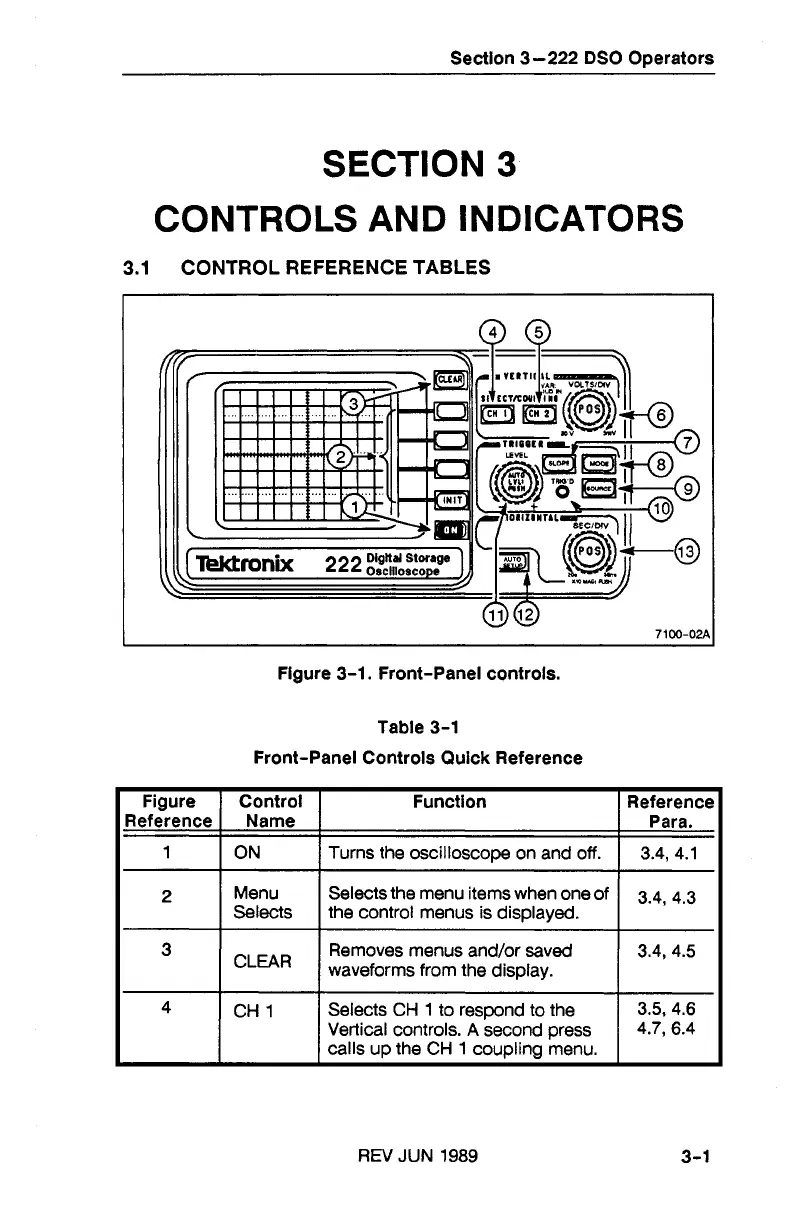

Figure 3-1. Front-Panel controls.
Table 3-1
Front-Panel Controls Quick Reference
Figure
Reference
1
( CLEAR I
Removes menus andlor saved
waveforms from the display.
2
Control
Name
ON
REV JUN 1989 3-1
Menu
Selects
4
ICH1 I
Selects CH 1 to respond to the
Vertical controls.
A second press
calls up the
CH 1 couplinn menu.
Function
Turns the oscilloscope on and off.
3.5, 4.6
4.7, 6.4
Reference
Para.
3.4, 4.1
Selects the menu items when one of
the control menus is displayed.
3.4, 4.3
