Your New OscilIoscope-222 DSO Operators

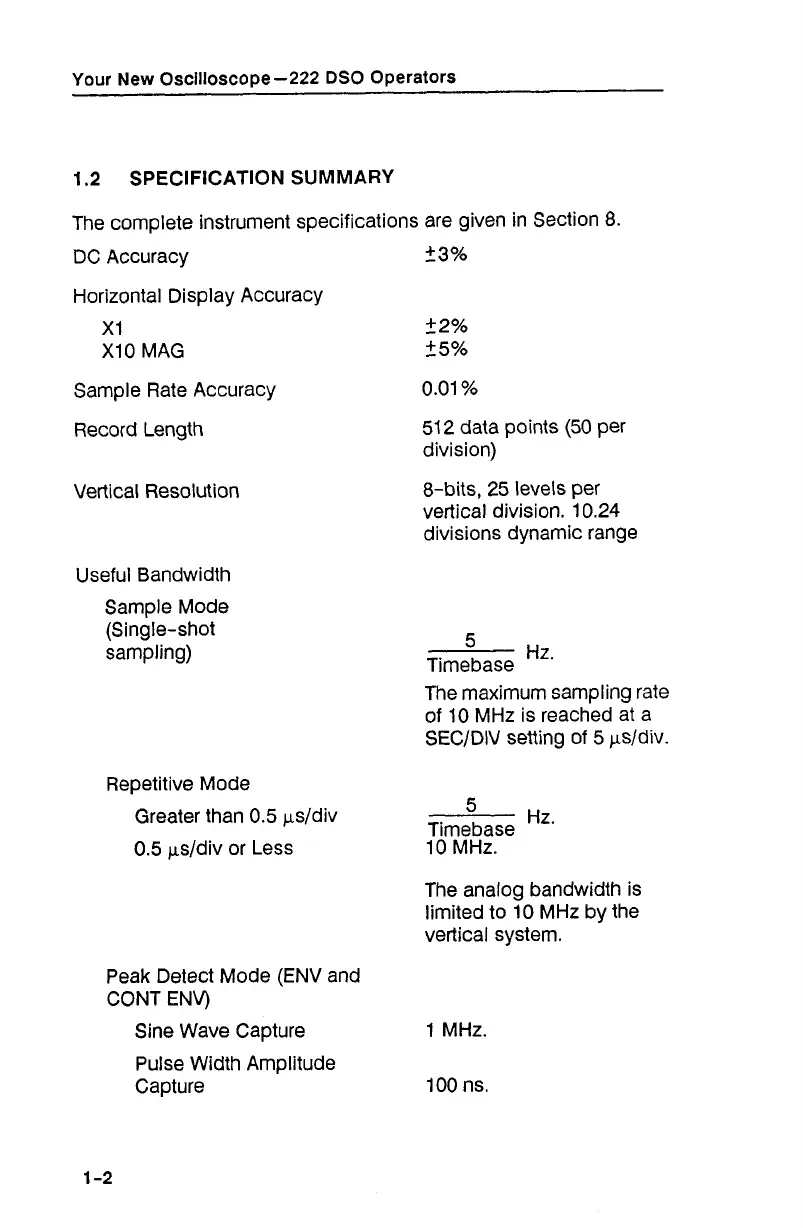

1.2 SPECIFICATION SUMMARY
The complete instrument specifications are given in Section 8.
DC Accuracy 23%
Horizontal Display Accuracy
X 1 22%
XI0 MAG + 5%
Sample Rate Accuracy
0.01 %
Record Length
Vertical Resolution
Useful Bandwidth
Sample Mode
(Single-shot
sampling)
Repetitive Mode
Greater than
0.5 p/div
0.5 ps/div or Less
Peak Detect Mode (ENV and
CONT ENV)
Sine Wave Capture
Pulse Width Amplitude
Capture
51
2 data points (50 per
division)
8-bits, 25 levels per
vertical division.
10.24
divisions dynamic range
Hz.
Timebase
The maximum sampling rate
of
10 MHz is reached at a
SEC/DIV setting of 5 psldiv.
Hz.
Timebase
10 MHz.
The analog bandwidth is
limited to
10 MHz by the
vertical system.
1 MHz.
100 ns.
