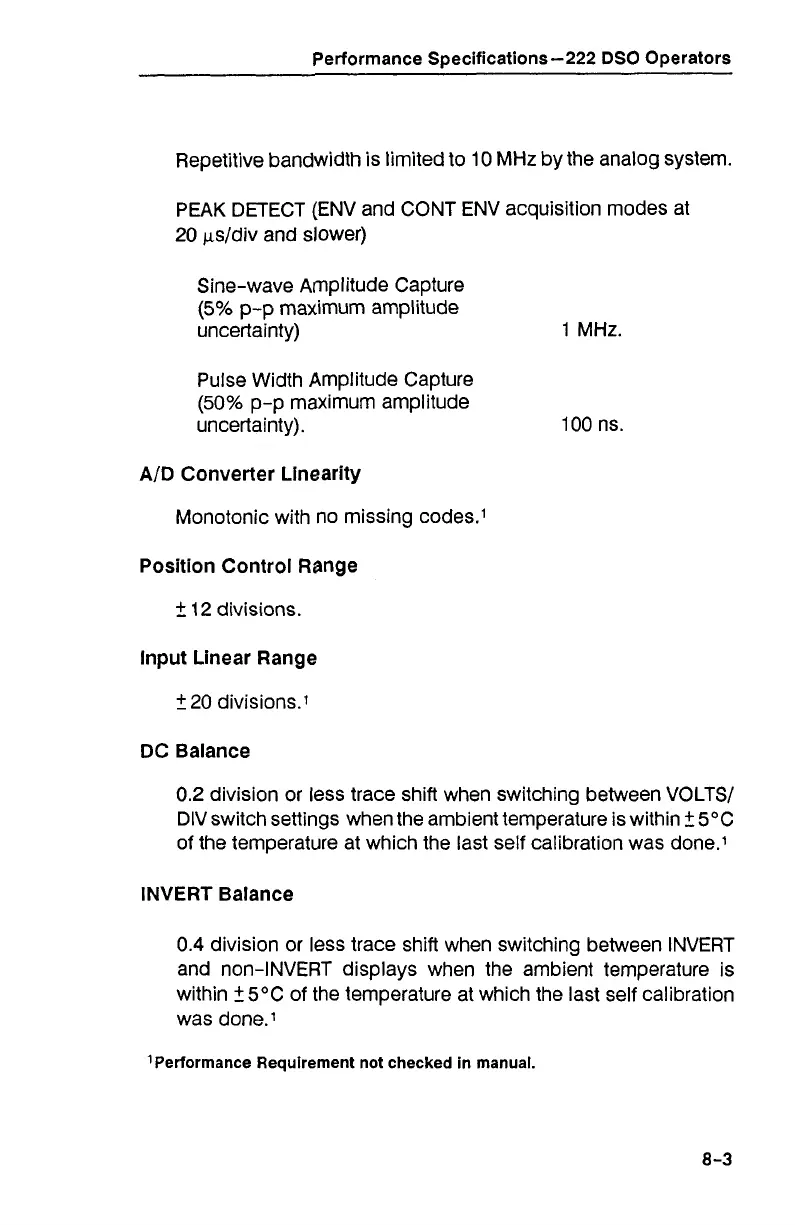

Performance S~ecifications-222
DSO
Operators
Repetitive bandwidth is limited to 10
MHz
by the analog system.
PEAK DETECT (ENV and CONT ENV acquisition modes at
20 ~s/div and slower)
Sine-wave Amplitude Capture
(5% p-p maximum amplitude
uncertainty)
Pulse Width Amplitude Capture
(50% p-p maximum amplitude
uncertainty).
1
MHz.
100 ns.
AID
Converter Linearity
Monotonic with no missing codes.'
Position Control Range
2
12
divisions.
Input Linear Range
DC
Balance
0.2 division or less trace shift when switching between VOLTS/
DIV switch settings when the ambient temperature is within
t
5OC
of the temperature at which the last self calibration was done.?
INVERT Balance
0.4
division or less trace shift when switching between INVERT
and non-INVERT displays when the ambient temperature is
within 25°C of the temperature at which the last self calibration
was
done.'
Performance Requirement not checked in manual.
