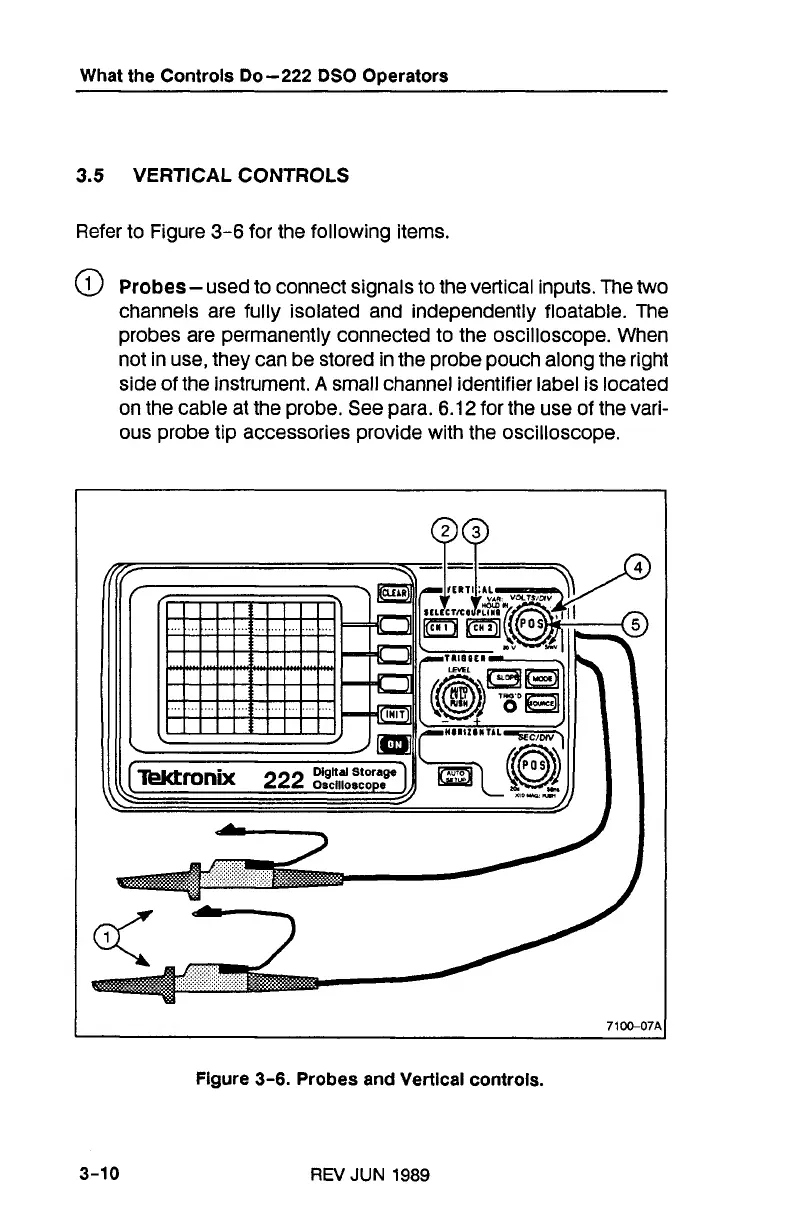

What the Controls Do-222 DSO Operators
3.5
VERTICAL CONTROLS
Refer to Figure
3-6
for the following items.
@
Probes-
used to connect signals to the vertical inputs. The two
channels are fully isolated and independently floatable. The
probes are permanently connected to the oscilloscope. When
not in use, they can be stored in the probe pouch along the right
side of the instrument.
A
small channel identifier label is located
on the cable at the probe. See para.
6.12
for the use of the vari-
ous probe tip accessories provide with the oscilloscope.
Figure 3-6. Probes and Vertical controls.
REV
JUN
1989
