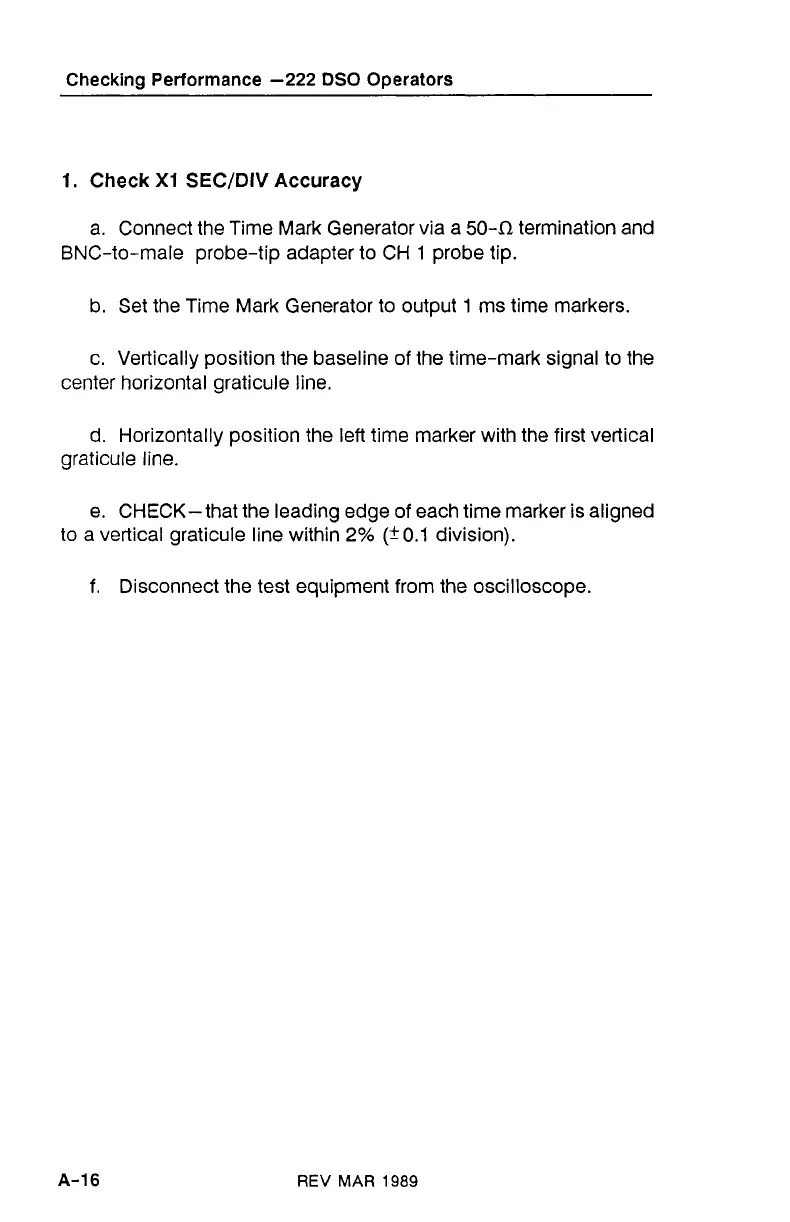

Checking Performance -222 DSO Operators
1. Check XI SECIDIV Accuracy
a. Connect the Time Mark Generator via a 504 termination and
BNC-to-male probe-tip adapter to CH
1 probe tip.
b. Set the Time Mark Generator to output
1 ms time markers.
c. Vertically position the baseline of the time-mark signal to the
center horizontal graticule line.
d. Horizontally position the left time marker with the first vertical
graticule line.
e. CHECK-that the leading edge of each time marker is aligned
to a vertical graticule line within
2% (f 0.1 division).
f. Disconnect the test equipment from the oscilloscope.
REV MAR 1989
