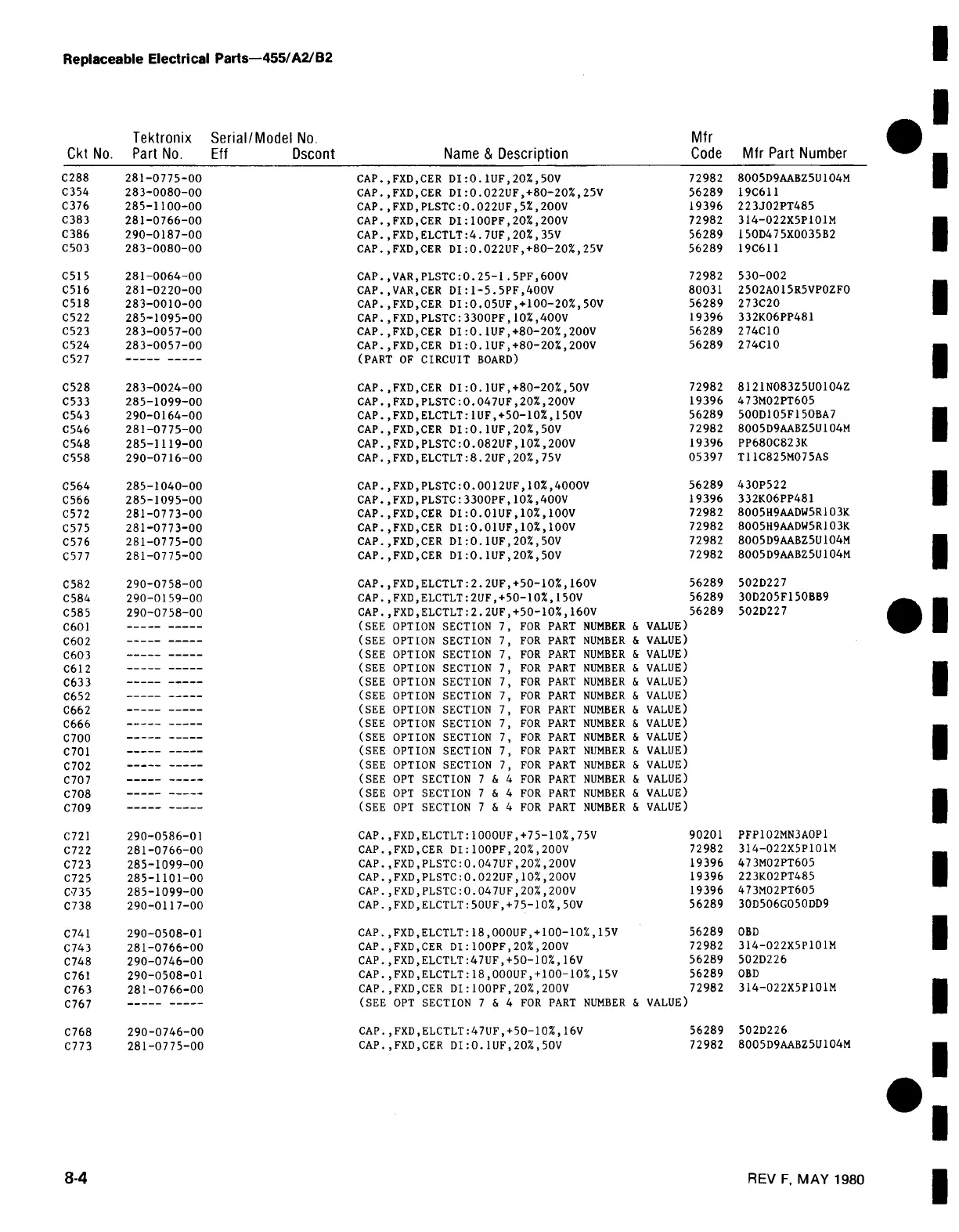

Replaceable Electrical Parts—455/A2/B2
Ckt No.
Tektronix
Part No.
Serial/Model No.
Eft Dscont Name & Description
Mfr
Code
Mir Part Number
C288
281-0775-00
CAP. .,FXD,CER DI:0.1UF,20%,50V
72982
8005D9AABZ5U104M
C354
283-0080-00 CAP. ,,FXD,CER DI:0.022UF,+80-20%,25V
56289 19C611
C376
285-1100-00 CAP. ,, FXD, PLSTC: 0.022UF, 5%, 200V
19396
223J02PT485
C383
281-0766-00 CAP. .
,FXD,CER DI:100PF,20%,200V
72982 314-022X5P101M
C386
290-0187-00 CAP. .
,FXD,ELCTLT:4.7UF,20%,35V
56289
150D47 5X0035B2
C503
283-0080-00 CAP. ,
,FXD,CER DI:0.022UF,+80-20%,25V
56289
19C611
C51 5
281-0064-00
CAP.
,VAR,PLSTC:0.25-1.5PF,600V
72982
530-002
C516
281-0220-00
CAP.
,VAR,CER DI:1-5.5PF,400V
80031
2502A015R5VP0ZF0
C518
283-0010-00
CAP.
,FXD,CER DI:0.05UF,+100-20%,50V 56289
273C20
C522
285-1095-00
CAP. ,FXD,PLSTC:3300PF,10%,400V
19396
332K06PP481
C523
283-0057-00
CAP. ,FXD,CER DI:0.1UF,+80-20%,200V 56289
274C10
C524
283-0057-00
CAP.
,FXD.CER DI:0.1UF,+80-20%,200V 56289
274C10
C527
(PART OF CIRCUIT BOARD)
C528
283-0024-00
CAP. ,FXD.CER DI:0.1UF,+80-20%,50V
72982
8121N083Z5U0104Z
C533 285-1099-00
CAP. ,FXD,PLSTC:0.047UF,20%,200V
19396 473M02PT605
C543 290-0164-00
CAP.
,FXD,ELCTLT:1UF,+50-10%,150V
56289
500D105F150BA7
C546 281-0775-00
CAP.
,FXD.CER DI:0.1UF,20%,50V
72982
8005D9AABZ5U104M
C548 285-1119-00
CAP.
,FXD,PLSTC:0.082UF,10%,200V
19396 PP680C823K
C558 290-0716-00
CAP. .,FXD,ELCTLT:8.2UF,20%,75V
05397
T11C825M075AS
C564
285-1040-00
CAP. ,FXD,PLSTC:0.0012UF,10%, 4000V
56289 430P522
C566 285-1095-00
CAP.
,FXD,PLSTC:3 300PF,10%,400V
19396 332K06PP481
C572 281-0773-00
CAP. ,FXD.CER DI:0.01UF,10%,100V
72982
8005H9AADW5R103K
C575 281-0773-00
CAP. ,FXD.CER DI:0.01UF,10%,100V
72982
8005H9AADW5R103K
C576 281-0775-00
CAP. ,FXD.CER DI:0.1UF,20%,50V
72982
8005D9AABZ5U104M
C577
281-0775-00
CAP. ,FXD.CER DI:0.1UF,20%,50V
72982
8005 D9AABZ5U104M
C582 290-0758-00
CAP.
,FXD,ELCTLT:2.2UF,+50-10%,160V
56289
502D227
C584 290-0159-00
CAP. ,FXD,ELCTLT:2UF,+50-10%,150V
56289
30D205F150BB9
C585 290-0758-00
CAP.
,FXD,ELCTLT:2.2UF,+50-10%,160V
56289 502D227
C601 (SEE OPTION SECTION 7, FOR PART NUMBER & VALUE)
C602 (SEE OPTION SECTION 7, FOR PART NUMBER & VALUE)
C603 (SEE OPTION SECTION 7, FOR PART NUMBER & VALUE)
C612 (SEE OPTION SECTION 7, FOR PART NUMBER & VALUE)
C633 (SEE OPTION SECTION 7, FOR PART NUMBER & VALUE)
C652 (SEE OPTION SECTION 7, FOR PART NUMBER & VALUE)
C662 (SEE OPTION SECTION 7, FOR PART NUMBER & VALUE)
C666 (SEE OPTION SECTION 7, FOR PART NUMBER & VALUE)
C700 (SEE OPTION SECTION 7, FOR PART NUMBER & VALUE)
C701 (SEE OPTION SECTION 7, FOR PART NUMBER & VALUE)
C702 (SEE OPTION SECTION 7, FOR PART NUMBER & VALUE)
C707 (SEE OPT SECTION 7 & 4 FOR PART NUMBER & VALUE)
C708 (SEE OPT SECTION 7 & 4 FOR PART NUMBER & VALUE)
C709 (SEE OPT SECTION 7 & 4 FOR PART NUMBER & VALUE)
C721 290-0586-01
CAP. ,FXD,ELCTLT:1000UF,+75-10%,75V
90201
PFP1O2MN3A0P1
C722
281-0766-00
CAP. .
,FXD.CER DI:100PF,20%,200V
72982
314-022X5P101M
C723 285-1099-00
CAP. ,FXD,PLSTC:0.047UF,20%,200V
19396
473M02PT605
C725
285-1101-00
CAP. ,FXD,PLSTC:0.022UF,10%,200V
19396
223K02PT485
C735
285-1099-00
CAP. ,FXD,PLSTC:0.047UF,20%,200V
19396
473M02PT605
C738 290-0117-00
CAP.
,FXD,ELCTLT:50UF,+75-10%,50V 56289
30D506G050DD9
C741 290-0508-01
CAP. ,FXD,ELCTLT:18,000UF,+100-10%,15V 56289
OBD
C743
281-0766-00
CAP.
,FXD.CER DI:100PF,20%,200V
72982
314-022X5P101M
C748
290-0746-00
CAP. ,FXD,ELCTLT:47UF,+50-10%,16V
56289
502D226
C761
290-0508-01
CAP.
,FXD,ELCTLT:18,000UF,+100-10%,15V
56289
OBD
C763
C767
281-0766-00
CAP.
(SEE
,FXD.CER DI:100PF,20%,200V
OPT SECTION 7 & 4 FOR PART NUMBER &
72982
VALUE)
314-022X5P101M
C768
290-0746-00
CAP. ,FXD,ELCTLT:47UF,+50-10%,16V 56289
502D226
C773
281-0775-00
CAP.
,FXD.CER DI:0.1UF,20%,50V
72982
8005D9AABZ5U104M
8-4 REV F, MAY 1980
