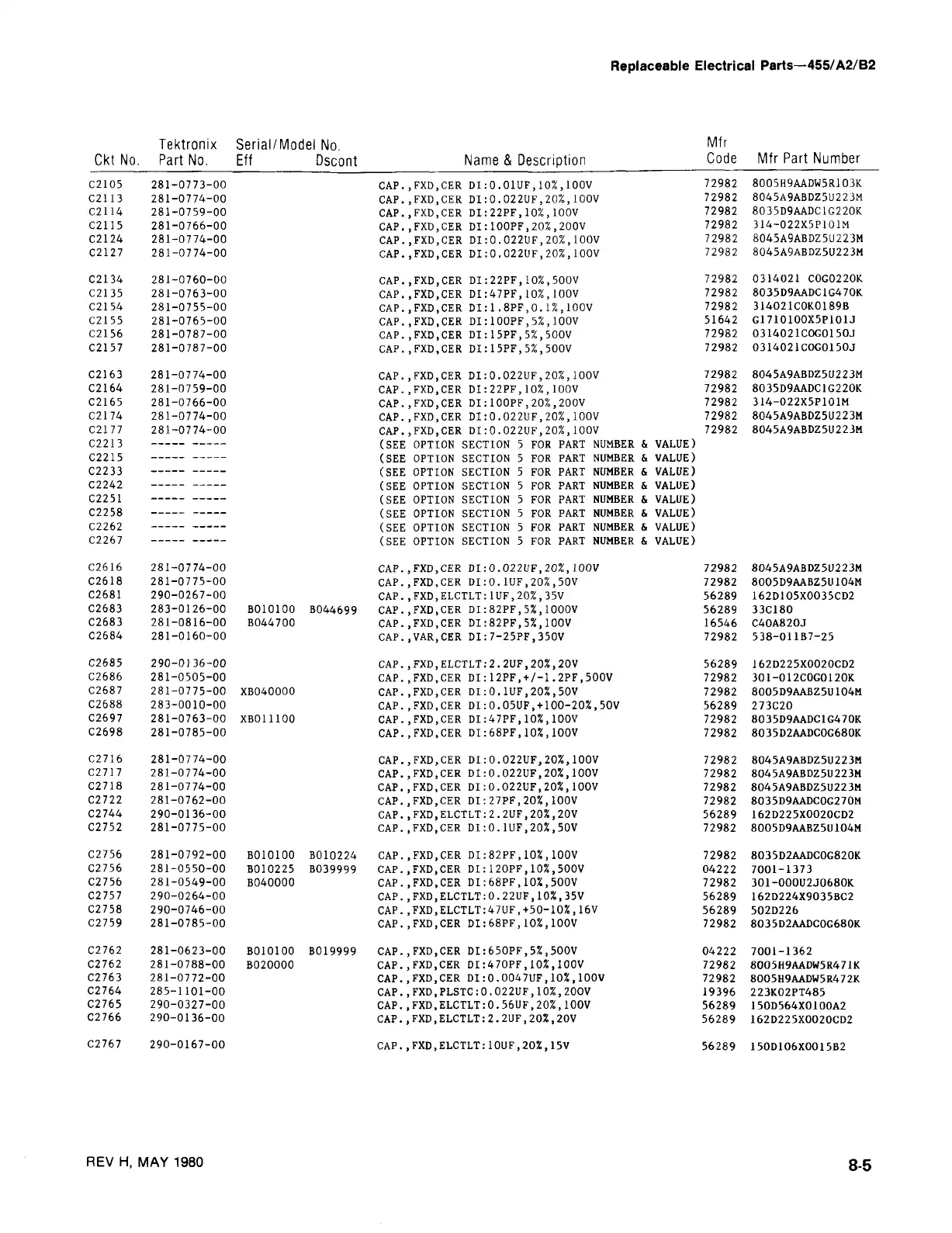

Replaceable Electrical Parts—455/A2/B2
Tektronix
Ckt No. Part No.
Serial/Model No.
Eff Dscont
Name & Description
Mfr
Code Mfr Part Number
C2105 281-0773-00 CAP.,FXD,CER DI:0.01UF,10%,100V 72982 8005H9AADW5R103K
C2113 281-0774-00 CAP.,FXD,CER DI:0.022UF,20%,100V 72982 8045A9ABDZ5U223M
C2114 281-0759-00 CAP.,FXD,CER DI:22PF,10%,100V 72982 8035D9AADC1G220K
C2115 281-0766-00 CAP.,FXD,CER DI:100PF,20%,200V 72982 314-022X5P101M
C2124 281-0774-00 CAP.,FXD,CER DI:0.022UF,20%,100V 72982 8045A9ABDZ5U223M
C2127 281-0774-00 CAP.,FXD,CER DI:0.022UF,20%,100V 72982 8045A9ABDZ5U223M
C2134 281-0760-00 CAP.,FXD,CER DI:22PF,10%,500V 72982 0314021 C0G0220K
C2135 281-0763-00 CAP.,FXD,CER DI:47PF,10%,100V 72982 8035D9AADC1G470K
C2154 281-0755-00 CAP.,FXD,CER DI:1.8PF,0.1%,100V 72982 314021C0K0189B
C2155 281-0765-00 CAP.,FXD,CER DI:1OOPF,5%,100V 51642 G1710100X5P101J
C2156 281-0787-00 CAP.,FXD,CER DI:15PF,5%,500V 72982 0314021COG0150J
C2157 281-0787-00 CAP.,FXD,CER DI:15PF,5%,500V 72982 0314021COG0150J
C2163 281-0774-00 CAP.,FXD,CER DI:0.022UF,20%,100V 72982 8045A9ABDZ5U223M
C2164 281-0759-00 CAP.,FXD,CER DI:22PF,10%,100V 72982 8035D9AADC1G220K
C2165 281-0766-00 CAP.,FXD,CER DI:100PF,20%,200V 72982 314-022X5P101M
C2174 281-0774-00 CAP.,FXD,CER DI:0.022UF,20%,100V 72982 8045A9ABDZ5U223M
C2177 281-0774-00 CAP.,FXD,CER DI:0.022UF,20%,100V 72982 8045A9ABDZ5U223M
C2213 (SEE OPTION SECTION 5 FOR PART NUMBER & VALUE)
C2215 (SEE OPTION SECTION 5 FOR PART NUMBER & VALUE)
C2233 (SEE OPTION SECTION 5 FOR PART NUMBER & VALUE)
C2242 (SEE OPTION SECTION 5 FOR PART NUMBER & VALUE)
C2251 (SEE OPTION SECTION 5 FOR PART NUMBER & VALUE)
C2258 (SEE OPTION SECTION 5 FOR PART NUMBER & VALUE)
C2262 (SEE OPTION SECTION 5 FOR PART NUMBER & VALUE)
C2267 (SEE OPTION SECTION 5 FOR PART NUMBER & VALUE)
C2616
281-0774-00
CAP.
,FXD,CER DI:0.022UF,20%,100V
72982
804 5A9ABDZ 5U22 3M
C2618 281-0775-00
CAP.
,FXD,CER DI:0.1UF,20%,50V 72982 8005D9AABZ5U104M
C2681 290-0267-00
CAP.
,FXD,ELCTLT:1UF,20%,35V
56289
162D105X0035CD2
C2683
283-0126-00 B010100
B044699
CAP.
,FXD,CER DI:82PF,5%,1000V
56289
33C180
C2683
281-0816-00
B044700
CAP. ,FXD,CER DI:82PF,5%,100V 16546
C40A820J
C2684
281-0160-00
CAP.
,VAR,CER DI:7-25PF,350V 72982 538-011B7-25
C2685
290-0136-00
CAP.
,FXD,ELCTLT:2.2UF,20%,20V
56289
162D225X0020CD2
C2686
281-0505-00
CAP.
,FXD,CER DI:12PF,+/-1.2PF,500V
72982
301-012COG0120K
C2687
281-0775-00 XB040000
CAP.
,FXD,CER DI:0.1UF,20%,50V
72982
8005D9AABZ5U104M
C2688
283-0010-00
CAP.
,FXD,CER DI:0.05UF,+100-20%,50V
56289
273C20
C2697
281-0763-00
XB011100
CAP.
,FXD,CER DI:47PF,10%,100V
72982
803 5D9AADC1G4 7 OK
C2698
281-0785-00
CAP.
,FXD,CER DI:68PF,10%,100V
72982
8035D2AADC0G680K
C2716
281-0774-00
CAP.
,FXD,CER DI:0.022UF,20%,100V
72982
804 5A9ABDZ 5U2 2 3M
C2717
281-0774-00
CAP.
,FXD,CER DI:0.022UF,20%,100V
72982
8045A9ABDZ5U223M
C2718
281-0774-00
CAP.
,FXD,CER DI:0.022UF,20%,100V
72982
8045A9ABDZ5U223M
C2722
281-0762-00
CAP.
,FXD,CER DI:27PF,20%,100V
72982
8035D9AADC0G270M
C2744
290-0136-00
CAP.
,FXD,ELCTLT:2.2UF,20%,20V
56289
162D225X0020CD2
C2752
281-0775-00
CAP.
,FXD,CER DI:0.1UF,20%,50V
72982
8005D9AABZ5U104M
C2756
281-0792-00 B010100
B010224 CAP.
,FXD,CER DI:82PF,10%,100V
72982 8035D2AADC0G820K
C2756
281-0550-00
B010225
B039999
CAP.
,FXD,CER DI:120PF,10%,500V
04222
7001-1373
C2756
281-0549-00
B040000 CAP.
,FXD,CER DI:68PF,10%,500V
72982
301-000U2J0680K
C2757
290-0264-00
CAP.
,FXD,ELCTLT:0.22UF,10%,35V
56289
162D224X9035BC2
C2758
290-0746-00
CAP.
,FXD,ELCTLT:47UF,+50-10%,16V
56289
502D226
C2759
281-0785-00
CAP.
,FXD,CER DI:68PF,10%,100V
72982
8035D2AADC0G680K
C2762
281-0623-00 B010100
B019999 CAP.
,FXD,CER DI:650PF,5%,500V
04222
7001-1362
C2762
281-0788-00
B020000
CAP.
,FXD,CER DI:470PF,10%,I00V
72982
8005H9AADW5R471K
C2763
281-0772-00
CAP.
,FXD,CER DI:0.0047UF,10%,100V
72982 8005H9AADW5R472K
C2764
285-1101-00
CAP.
,FXD,PLSTC:0.022UF,10%, 200V
19396
223K02PT485
C2765
290-0327-00
CAP.
,FXD,ELCTLT:0.56UF,20%,100V
56289
150D564X0100A2
C2766
290-0136-00
CAP.
,FXD,ELCTLT:2.2UF,20%,20V
56289 162D225X0020CD2
C2767
290-0167-00
CAP.
,FXD,ELCTLT:10UF,20%,15V
56289
150D106X0015B2
REV H, MAY 1980
8-5
