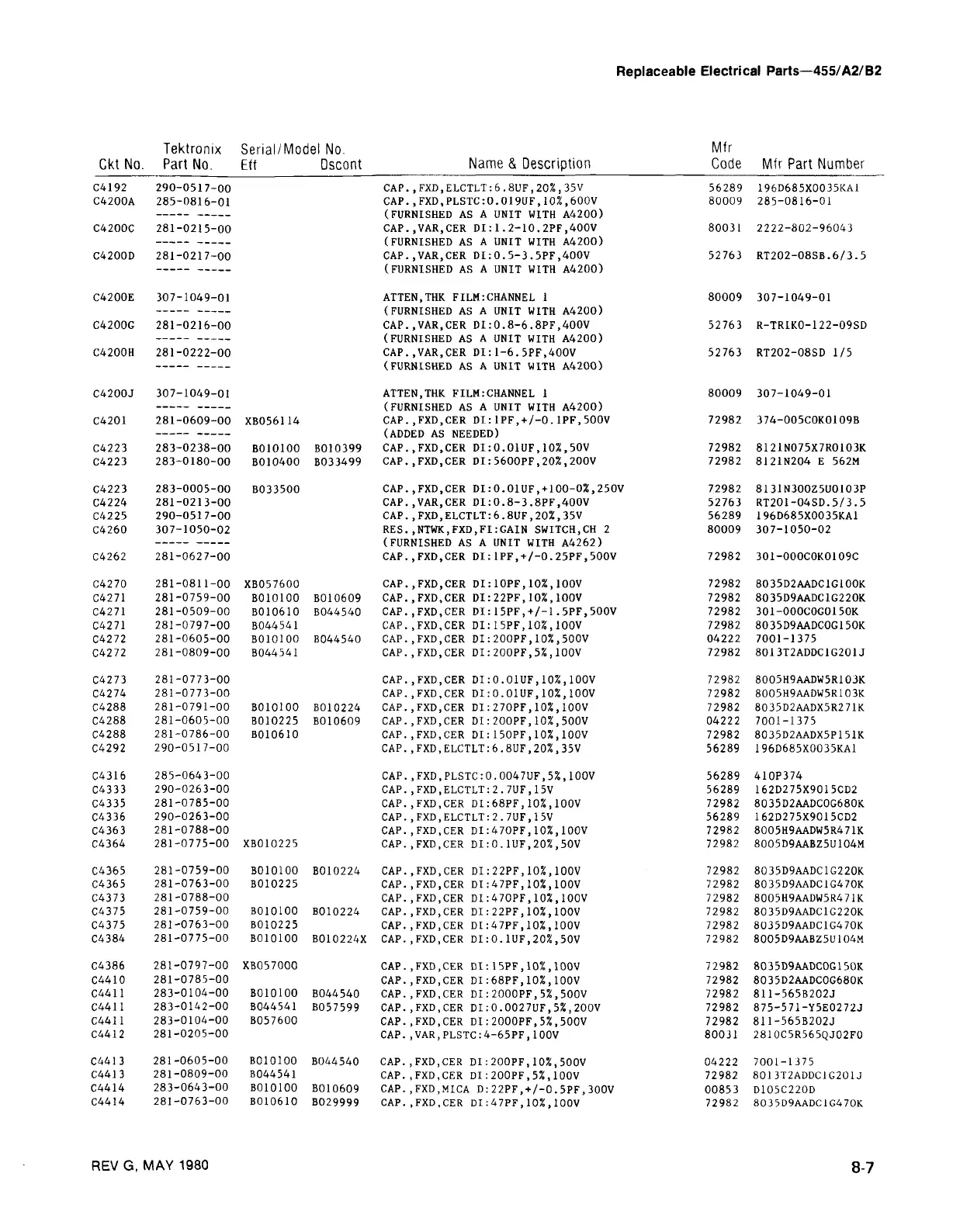

Replaceable Electrical Parts—455/A2/B2
Ckt No.
Tektronix
Part No.
Serial/Model No.
Eft Dscont
Name & Description
Mfr
Code Mfr Part Number
C4192
290-0517-00
CAP.
,,FXD,ELCTLT:6.8UF,20%,35V
56289
196D685X0035KA1
C4200A
285-0816-01
CAP.
,,FXD,PLSTC:0.019UF,10%,600V
80009 285-0816-01
(FURNISHED AS A UNIT WITH A4200)
C4200C
281-0215-00
CAP.
..VAR.CER DI:1.2-10.2PF,400V 80031
2222-802-96043
(FURNISHED AS A UNIT WITH A4200)
C4200D
281-0217-00
CAP. .VAR.CER DI:0.5-3.5PF,400V
52763 RT202-08SB.6/3.5
(FURNISHED AS A UNIT WITH A4200)
C4200E
307-1049-01
ATTEN.THK FILMiCHANNEL 1 80009 307-1049-01
(FURNISHED AS A UNIT WITH A4200)
C4200G
281-0216-00
CAP.
.VAR.CER DI:0.8-6.8PF,400V
52763 R-TR1K0-122-09SD
(FURNISHED AS A UNIT WITH A4200)
C4200H
281-0222-00
CAP. .VAR.CER DI:1-6.5PF,400V
52763 RT202-08SD 1/5
(FURNISHED AS A UNIT WITH A4200)
C4200J
307-1049-01
ATTEN.THK FILM:CHANNEL 1
80009
307-1049-01
(FURNISHED AS A UNIT WITH A4200)
C4201
281-0609-00 XB056114
CAP. ,FXD,CER DI:lPF,+/-0.1PF.500V
72982
374-005C0K0109B
(ADDED AS NEEDED)
C4223
283-0238-00
B010100
B010399
CAP. ,FXD.CER DI:0.01UF,10%,50V 72982 8121N075X7R0103K
C4223
283-0180-00
BO 10400
B033499
CAP. ,FXD.CER DI:5600PF,20%,200V 72982 8121N204 E 562M
C4223
283-0005-00 B033500
CAP. ,FXD.CER DI:0.01UF,+100-0%,250V 72982
8131N300Z5U0103P
C4224
281-0213-00
CAP. ,VAR.CER DI:0.8-3.8PF,400V
52763 RT201-04SD.5/3.5
C4225
290-0517-00
CAP.
,FXD,ELCTLT:6.8UF,20%,35V
56289 196D685X0035KA1
C4260
307-1050-02
RES.
,NTWK,FXD,FI:GAIN SWITCH,CH 2
80009 307-1050-02
(FURNISHED AS A UNIT WITH A4262)
C4262
281-0627-00
CAP.
.FXD.CER DI:1PF,+/-0.25PF,500V
72982 301-000C0K0109C
C4270
281-0811-00 XB057600
CAP. ,FXD.CER DI:10PF,10%,100V
72982 8035D2AADC1G100K
C4271 281-0759-00 B010100
B010609
CAP. ,FXD.CER DI:22PF,10%,100V 72982 8035D9AADC1G220K
C4271
281-0509-00
B010610
B044540
CAP. ,FXD.CER DI:15PF,+/-l.5PF,500V 72982 301-000C0G0150K
C4271 281-0797-00
B044541
CAP.
,FXD.CER DI:15PF,10%,100V
72982
8035D9AADC0G150K
C4272 281-0605-00 B010100 B044540
CAP. .FXD.CER DI:200PF,10%,500V
04222
7001-1375
C4272
281-0809-00
B044541
CAP.
.FXD.CER DI:200PF,5%,100V
72982
8013T2ADDC1G201J
C4273 281-0773-00
CAP.
.FXD.CER DI:0.01UF,10%,100V
72982
8005H9AADW5R103K
C4274
281-0773-00 CAP.
.FXD.CER DI:0.01UF,10%,100V 72982 8005H9AADW5R103K
C4288
281-0791-00
B010100
B010224
CAP. .FXD.CER DI:270PF,10%,100V 72982 8035D2AADX5R271K
C4288
281-0605-00
B010225
B010609
CAP. .FXD.CER DI:200PF,10%,500V 04222 7001-1375
C4288
281-0786-00
B010610 CAP.
.FXD.CER DI:150PF,10%,100V 72982 8035D2AADX5P151K
C4292
290-0517-00
CAP. ,FXD,ELCTLT:6.8UF,20%,35V
56289 196D685X0035KA1
C4316
285-0643-00
CAP. ,FXD,PLSTC:0.0047UF,5%,100V
56289
410P374
C4333
290-0263-00
CAP.
,FXD,ELCTLT:2.7UF,15V 56289
162D275X9015CD2
C4335
281-0785-00
CAP. .FXD.CER DI:68PF,10%,100V
72982
8035D2AADC0G680K
C4336
290-0263-00
CAP. ,FXD,ELCTLT:2.7UF,15V
56289
162D275X9015CD2
C4363
281-0788-00
CAP. .FXD.CER DI:470PF,10%,100V
72982
8005H9AADW5R47 IK
C4364
281-0775-00 XB010225
CAP. .FXD.CER DI:0.1UF,20%,50V
72982
8005D9AABZ5U104M
C4365
281-0759-00
B010100
B010224 CAP.
.FXD.CER DI:22PF,10%,100V
72982
8035D9AADC1G220K
C4365
281-0763-00
B010225
CAP.
.FXD.CER DI:47PF,10%,100V
72982 8035D9AADC1G470K
C4373
281-0788-00
CAP. .FXD.CER DI:470PF,10%,100V 72982 8005H9AADW5R471K
C4375
281-0759-00
B010100
B010224
CAP.
.FXD.CER DI:22PF,10%,100V
72982 8035D9AADC1G220K
C4375
281-0763-00
B010225
CAP.
.FXD.CER DI:47PF,10%,100V
72982 8035D9AADC1G470K
C4384
281-0775-00
B010100
B010224X
CAP.
.FXD.CER DI:0.1UF,20%,50V
72982 8005D9AABZ5U104M
C4386
281-0797-00
XB057000
CAP.
.FXD.CER DI:15PF,10%,100V
72982
8035D9AADC0G150K
C4410
281-0785-00
CAP.
.FXD.CER DI:68PF,10%,100V
72982 8035D2AADC0G680K
C4411 283-0104-00 B010100
B044540
CAP.
.FXD.CER DI:2000PF,5%,500V
72982 811-565B202J
C4411
283-0142-00 B044541
B057599
CAP. .FXD.CER DI:0.0027UF,5%,200V 72982
875-571-Y5E0272J
C4411
283-0104-00
B057600
CAP. .FXD.CER DI:2000PF,5%,500V 72982 811-565B202J
C4412
281-0205-00
CAP. ,VAR,PLSTC:4-65PF,100V 80031
2810C5R565QJ02F0
C4413
281-0605-00
B010100
B044540
CAP.
.FXD.CER DI:200PF,10%,500V
04222
7001-1375
C4413
281-0809-00
B044541
CAP.
.FXD.CER DI:200PF,5%,100V
72982 8013T2ADDC1G201J
C4414
283-0643-00
B010100
B010609
CAP.
,FXD,MICA D:22PF,+/-0.5PF,300V 00853 D105C220D
C4414
281-0763-00
B010610
B029999
CAP.
.FXD.CER DI:47PF,10%,100V
72982
8035D9AADC1G470K
8 7
REV G, MAY 1980
