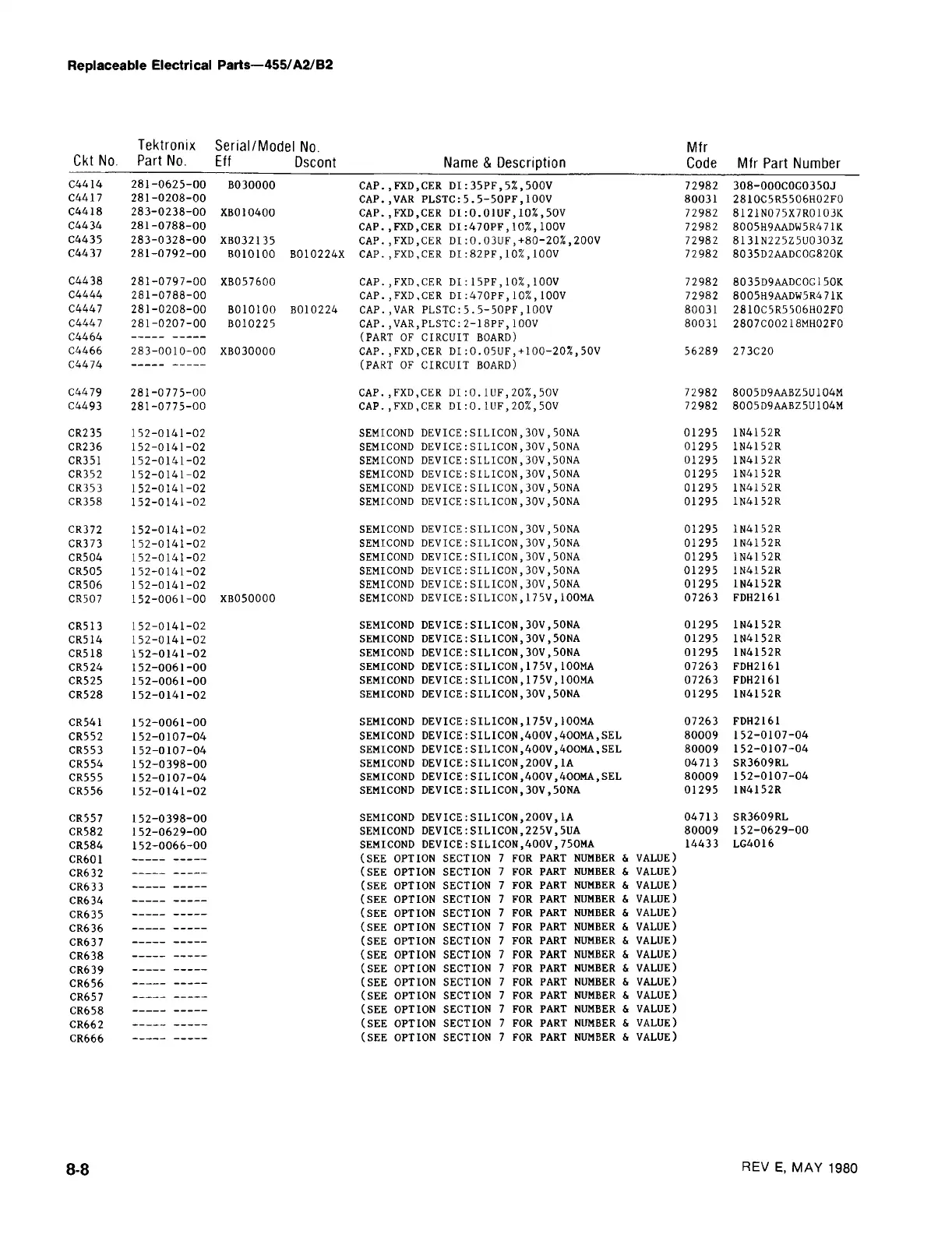

Replaceable Electrical Parts—455/A2/B2
Ckt No.
Tektronix
Part No.
Serial/Model No.
Eff Dscont
Name & Description
Mfr
Code
Mfr Part Number
C4414
281-0625-00
B030000 CAP. , FXD,,CER DI:35PF,5%,500V
72982 308-000C0G0350J
C4417
281-0208-00
CAP., VAR PLSTC:5.5-50PF,100V
80031 2810C5R5506H02F0
C4418
283-0238-00
XBO10400 CAP.,FXDj.CER DI:0.01UF,10%,50V 72982
8121N075X7R0103K
C4434
281-0788-00 CAP., FXD,,CER DI:470PF,10%,100V 72982
8005H9AADW5R471K
C4435
283-0328-00
XB032135 CAP.,FXDj,CER DI:0.03UF,+80-20%,200V 72982 8131N225Z5U0303Z
C4437
281-0792-00
B010100 B010224X
CAP.,FXD,CER DI:82PF,10%,100V
72982 8035D2AADC0G820K
C4438
281-0797-00 XB057600 CAP.,FXD,CER DI:15PF,10%,100V
72982
8035D9AADC0G150K
C4444
281-0788-00
CAP.,FXD,CER DI:470PF,10%,100V 72982 8005H9AADW5R471K
C4447
281-0208-00 B010100 B010224 CAP.,VAR PLSTC:5.5-50PF,100V 80031
2810C5R5506H02F0
C4447
281-0207-00 B010225
CAP.,VAR.,PLSTC:2-18PF,100V
80031 2807C00218MH02F0
C4464 (PART OF CIRCUIT BOARD)
C4466
283-0010-00
XB030000
CAP.,FXD,CER DI:0.05UF,+100-20%,50V
56289
273C20
C4474
(PART OF CIRCUIT BOARD)
C4479
281-0775-00 CAP.,FXD,CER DI:0.1UF,20%,50V
72982
8005D9AABZ5U104M
C4493
281-0775-00
CAP.,FXD,CER DI:0.1UF,20%,50V
72982
8005D9AABZ5U104M
CR235 152-0141-02
SEMICOND DEVICE:SILICON,30V,50NA
01295
1N4152R
CR236
152-0141-02
SEMICOND
DEVICE:SILICON,30V,50NA
01295
1N4152R
CR351 152-0141-02
SEMICOND DEVICE:SILICON,30V,50NA
01295
1N4152R
CR352
152-0141-02
SEMICOND
DEVICE:SILICON,30V,50NA
01295
1N4152R
CR353
152-0141-02
SEMICOND
DEVICE:SILICON,30V,50NA
01295
1N4152R
CR358
152-0141-02
SEMICOND DEVICE:SILICON,30V,50NA
01295
1N4152R
CR372
152-0141-02
SEMICOND DEVICE:SILICON,30V,50NA
01295
1N4152R
CR373
152-0141-02
SEMICOND DEVICE:SILICON,30V,50NA
01295
1N4152R
CR504 152-0141-02
SEMICOND DEVICE:SILICON,30V,50NA
01295
1N4152R
CR505 152-0141-02
SEMICOND
DEVICE:SILICON,30V,50NA
01295
1N4152R
CR506
152-0141-02
SEMICOND
DEVICE:SILICON,30V,50NA
01295
1N4152R
CR507 152-0061-00
XB050000
SEMICOND DEVICE:SILICON,175V,100MA 07263
FDH2161
CR513
152-0141-02
SEMICOND
DEVICE:SILICON,30V,50NA 01295 1N4152R
CR514
152-0141-02
SEMICOND
DEVICE:SILICON,30V,50NA
01295
1N4152R
CR518
152-0141-02
SEMICOND
DEVICE:SILICON,30V,50NA
01295
1N4152R
CR524 152-0061-00
SEMICOND
DEVICE:SILICON,175V,100MA
07263
FDH2161
CR525 152-0061-00
SEMICOND DEVICE:SILICON,175V,1OOMA 07263 FDH2161
CR528 152-0141-02
SEMICOND DEVICE:SILICON,30V,50NA
01295
1N4152R
CR541 152-0061-00
SEMICOND
DEVICE:SILICON,175V,1OOMA 07263
FDH2161
CR552 152-0107-04
SEMICOND
DEVICE:SILICON,400V,400MA.SEL
80009
152-0107-04
CR553 152-0107-04
SEMICOND
DEVICE:SILICON,400V,400MA.SEL
80009
152-0107-04
CR554
152-0398-00
SEMICOND
DEVICE:SILICON,200V,1A
04713
SR3609RL
CR555 152-0107-04
SEMICOND DEVICE:SILICON,400V,400MA,SEL 80009
152-0107-04
CR556 152-0141-02
SEMICOND DEVICE:SILICON,30V,50NA 01295
1N4152R
CR557 152-0398-00
SEMICOND
DEVICE:SILICON,200V,1A 04713
SR3609RL
CR582 152-0629-00
SEMICOND
DEVICE:SILICON,225V,5UA
80009
152-0629-00
CR584 152-0066-00
SEMICOND
DEVICE:SILICON,400V,750MA 14433
LG4016
CR601 (SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
CR632 (SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
CR633 (SEE OPTION SECTION 7 FOR PART NUMBER 6, VALUE)
CR634 (SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
CR635 (SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
CR636 (SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
CR637 (SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
CR638 (SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
CR639 (SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
CR656 (SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
CR657 (SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
CR658 (SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
CR662 (SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
CR666 (SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
8-8
REV E, MAY 1980
