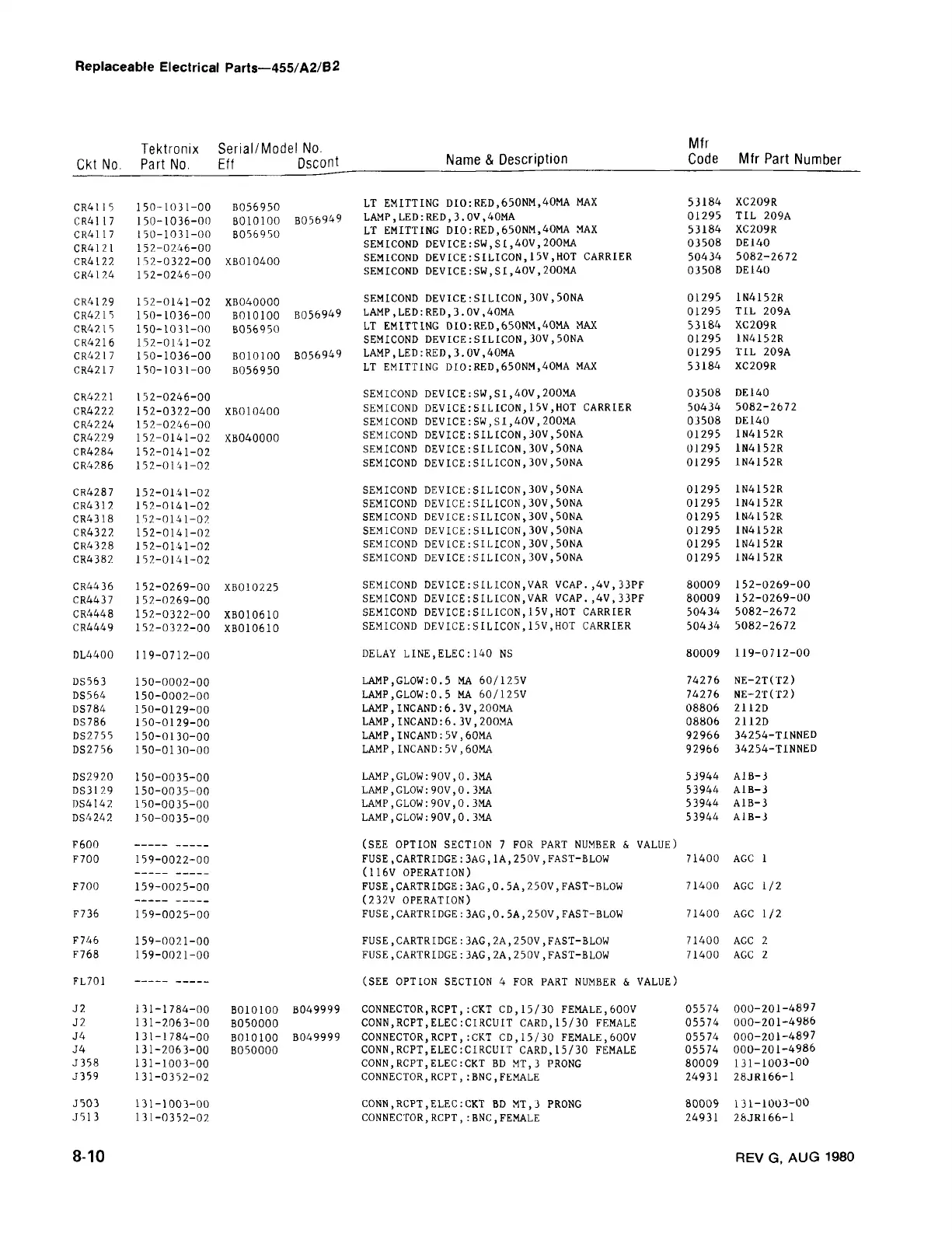

Replaceable Electrical Parts—455/A2/B2
Ckt No.
Tektronix
Part No.
Serial/Model No.
Eft Dscont
Name
&
Description
Mfr
Code
Mfr Part Number
CR4115
150-1031-00
B056950
LT EMITTING DIO:RED,650NM.40MA MAX
53184
XC209R
CR4117
150-1036-00 B010100
B056949
LAMP,LED:RED,3.OV,40MA
01295 TIL 209A
CR4117 I 50-1031-00 BO^^O
LT EMITTING DIO:RED,650NM.40MA MAX
53184
XC209R
CR4121
152-0246-00
SEMICOND DEVICE:SW,SI,40V,200MA
03508
DE140
CR4122 152-0322-00
XB010400
SEMICOND DEVICE:SILICON,15V,HOT CARRIER
50434
5082-2672
CR417.4
152-0246-00
SEMICOND DEVICE:SW,SI,40V,200MA
03508
DEI 40
CR4129 152-0141-02 XB040000
SEMICOND DEVICE:SIHCON,30V,50NA
01295
1N4152R
CR4215
150-1036-00
BO 10100
B056949
LAMP,LED:RED,3.OV,40MA
01295 TIL 209A
CR4715 150-1031-00
B056950
LT EMITTING DIO:RED,650NM,40MA MAX
53184
XC209R
CR4216 152-0141-02
SEMICOND DEVICE:SILICON,30V,50NA
01295 1N4152R
CR4217
150-1036-00 BO 10100
B056949
LAMP,LED:RED,3.OV,40MA
01295
TIL 209A
CR4217 150-1031-00
B056950
LT EMITTING DIO:RED,650NM.40MA MAX
53184
XC209R
CR4221
152-0246-00
SEMICOND DEVICE:SW,SI ,40V,200MA
03508 DEI 40
CR47.22
152-0322-00 XB010400
SEMICOND DEVICE:SILICON,15V,HOT CARRIER
50434
5082-2672
CR4224 152-0246-00
SEMICOND DEVICE:SW,S1,40V,200MA
03508 DE140
CR4229 152-0141-02
XB040000
SEMICOND DEVICE:SILICON,30V,50NA
01295
1N4152R
CR4284
152-0141-02
SEMICOND DEVICE:SILICON,30V,50NA
01295
1N4152R
CR4286 152-0141-02
SEMICOND DEVICE:SILICON,30V,50NA 01295
1N4152R
CR4287
1.52-0141-02
SEMICOND DEVICE:SILICON,30V,50NA
01295
1N4152R
CR4312
152-0141-02
SEMICOND DEVICE:SILICON,30V,50NA 01295
1N4152R
CR4318
152-0141-02
SEMICOND DEVICE:SILIC0N,30V,50NA
01295
1N4152R
CR4322
152-0141-02
SEMICOND DEVICE:SILIC0N,30V,50NA 01295
1N4152R
CR4328
152-0141-02
SEMICOND DEVICE:SILIC0N,30V,50NA
01295
1N4152R
CR4382
152-0141-02
SEMICOND DEVICE:SILICON,30V,50NA
01295
IN4152R
CR4436
152-0269-00
XB010225
SEMICOND DEVICE:SILICON,VAR VCAP.,4V,33PF 80009
152-0269-00
CR4437
152-0269-00
SEMICOND DEVICE:SILICON,VAR VCAP.,4V,33PF 80009
152-0269-00
CR4448
152-0322-00
XB010610
SEMICOND DEVICE:SILICON,15V,HOT CARRIER
50434
5082-2672
CR4449
152-0322-00 XB010610
SEMICOND DEVICE:SILICON,15V,HOT CARRIER 50434 5082-2672
DL4400
119-0712-00
DELAY LINE,ELEC:140 NS 80009
119-0712-00
DS563
150-0002-00
LAMP,GLOW:0.5 MA 60/125V
74276 NE-2TCT2)
DS564
150-0002-00
LAMP,GLOW:0.5 MA 60/125V
74276
NE-2T(T2)
DS784
150-0129-00
LAMP,INCAND:6.3V,200MA
08806 2112D
DS786
150-0129-00
LAMP,INCAND:6.3V,200MA
08806
2112D
DS2755
150-0130-00
LAMP,INCAND:5V,60MA 92966
34254-TINNED
DS2756
150-0130-00
LAMP,INCAND:5V,60MA
92966
34254-TINNED
DS2920
150-0035-00
LAMP,GLOW:90V,0.3MA
53944
A1B-3
DS3129
150-0035-00
LAMP,GLOW:90V,0.3MA 53944 A1B-3
DS4142
150-0035-00
LAMP,GLOW:90V,0.3MA
53944
A1B-3
DS4242
150-0035-00
LAMP,GLOW:90V,0.3MA
53944 A1B-3
F600 (SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
F700
159-0022-00
FUSE,CARTRIDGE:3AG,1A,250V,FAST-BLOW
71400 AGC 1
(116V OPERATION)
F700
159-0025-00
FUSE,CARTRIDGE:3AG,0.5A,250V,FAST-BLOW
71400 AGC 1/2
(232V OPERATION)
F736
159-0025-00
FUSE,CARTRIDGE:3AG,0.5A,250V,FAST-BLOW 71400 AGC 1/2
F746
159-0021-00
FUSE,CARTRIDGE:3AG,2A,2 50V,FAST-BLOW
71400 AGC 2
F768
159-0021-00
FUSE,CARTRIDGE:3AG,2A,250V,FAST-BLOW 71400 AGC 2
FL701
(SEE OPTION SECTION 4 FOR PART NUMBER & VALUE)
J2
131-1784-00
B010100
B049999
CONNECTOR,RCPT,:CKT CD,15/30 FEMALE,600V
05574
000-201-4897
J2
131-2063-00
B050000
CONN,RCPT,ELEC:CIRCUIT CARD,15/30 FEMALE
05574
000-201-4986
J4
131-1784-00
B010100
B049999 CONNECTOR,RCPT,:CKT CD,15/30 FEMALE,600V
05574
000-201-4897
J4
131-2063-00 B050000
CONN,RCPT,ELECiCIRCUIT CARD,15/30 FEMALE 05574
000-201-4986
J 338
131-1003-00
CONN,RCPT,ELEC:CKT BD MT,3 PRONG
80009
131-1003-00
J359
131-0352-02
CONNECTOR,RCPT,:BNC,FEMALE 24931 28JR166-1
J503
131-1003-00
CONN,RCPT,ELEC:CKT BD MT,3 PRONG
80009
131-1003-00
J513
131-0352-02
CONNECTOR,RCPT,:BNC,FEMALE
24931
28JR166-1
8-10 REV G, AUG 1980
