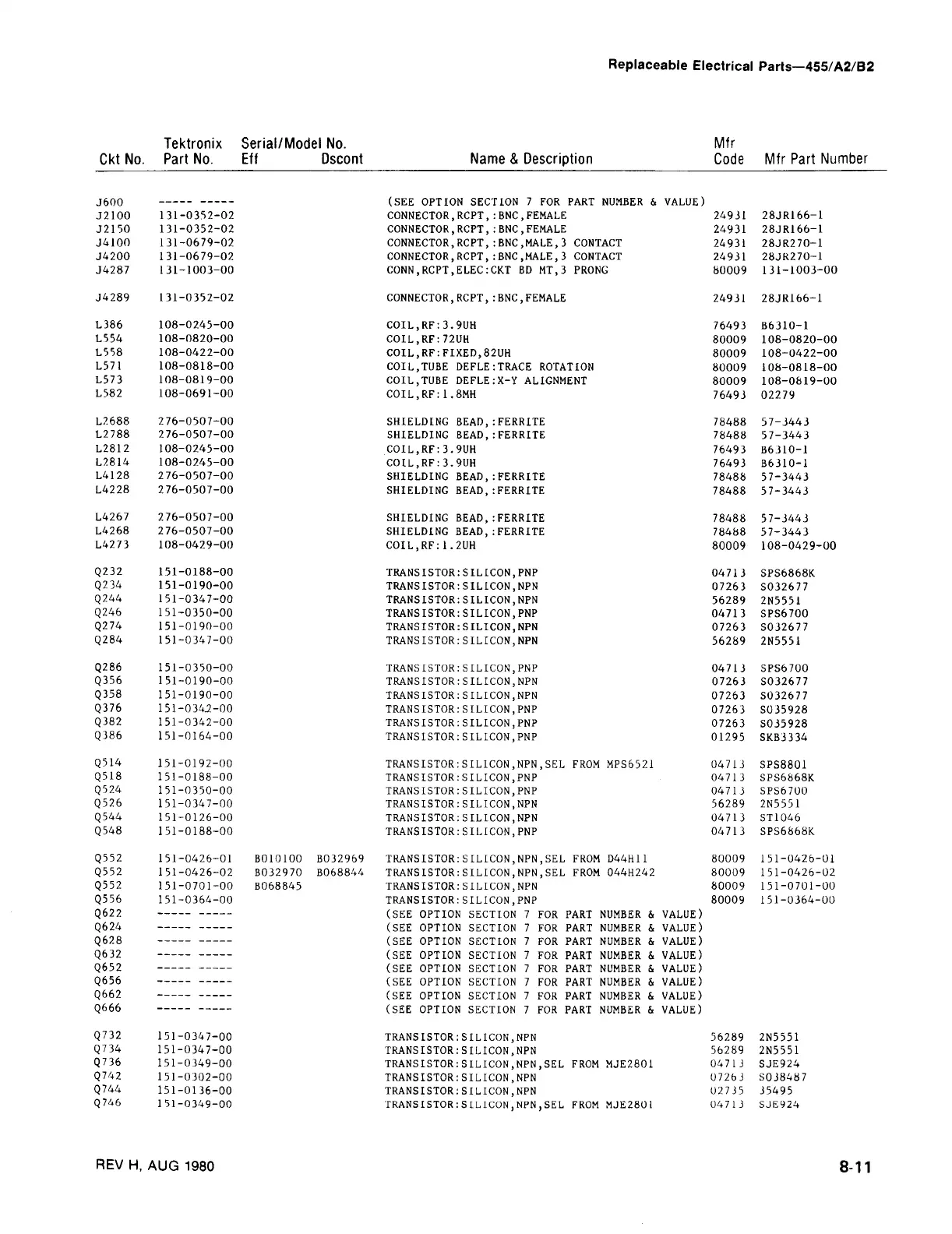

Replaceable Electrical Parts—455/A2/B2
Ckt No.
Tektronix
Part No.
Serial/Model No.
Eft Dscont Name & Description
Mfr
Code
Mfr Part Nur
J600
(SEE OPTION SECTION 7 FOR PART NUMBER 6 VALUE)
J2100
131-0352-02
CONNECTOR,RCPT,:BNC,FEMALE 24931
28JR166-1
J2150 131-0352-02
CONNECTOR,RCPT,:BNC,FEMALE
24931
28JR166-1
J4100
131-0679-02 CONNECTOR,RCPT,:BNC,MALE,3 CONTACT
24931
28JR270-1
J4200 131-0679-02 CONNECTOR,RCPT,:BNC,MALE,3 CONTACT
24931
28JR270-1
J4287 131-1003-00 CONN,RCPT,ELEC:CKT BD MT,3 PRONG
80009
131-1003-00
J4289
131-0352-02
CONNECTOR,RCPT,:BNC,FEMALE
24931
28JR166-1
L386 108-0245-00 COIL.RF:3.9UH
76493 B6310-1
L554
108-0820-00
COIL.RF:72UH
80009
108-0820-00
L558 108-0422-00
COIL,RF:FIXED,82UH
80009
108-0422-00
L571
108-0818-00
COIL,TUBE DEFLE:TRACE ROTATION
80009
108-0818-00
L573 108-0819-00
COIL,TUBE DEFLE:X-Y ALIGNMENT
80009 108-0819-00
L582
108-0691-00
COIL.RF:1.8MH
76493 02279
L2688 276-0507-00
SHIELDING BEAD,:FERRITE
78488 57-3443
L2788 276-0507-00
SHIELDING BEAD,:FERRITE
78488 57-3443
L2812
108-0245-00
COIL.RF:3.9UH
76493 B6310-1
L2814
108-0245-00
COIL,RF:3.9UH
76493 B6310-1
L4128
276-0507-00
SHIELDING BEAD,:FERRITE
78488 57-3443
L4228
276-0507-00
SHIELDING BEAD,:FERRITE
78488 57-3443
L4267
276-0507-00
SHIELDING BEAD,:FERRITE
78488 57-3443
L4268
276-0507-00
SHIELDING BEAD,:FERRITE
78488
57-3443
L4273
108-0429-00
COIL,RF:1.2UH
80009 108-0429-00
Q232
151-0188-00
TRANSISTOR:SILICON,PNP
04713 SPS6868K
Q234
151-0190-00
TRANSISTOR:SILICON,NPN
07263 S032677
Q244
151-0347-00
TRANSISTOR:SILICON,NPN
56289
2N5551
Q246
151-0350-00 TRANSISTOR:SILICON,PNP
04713 SPS6700
Q274
151-0190-00 TRANS ISTOR:SILICON,NPN
07263
S032677
Q284
151-0347-00
TRANSISTOR:SILICON,NPN
56289 2N5551
Q286
151-0350-00 TRANSISTOR:SILICON,PNP
04713
SPS6700
Q356
151-0190-00
TRANSISTOR:SILICON,NPN
07263 S032677
Q358
151-0190-00 TRANSISTOR:SILICON,NPN
07263 S032677
Q376
1 51-034.2-00
TRANSISTOR:SILICON,PNP
07263
S035928
Q382
151-0342-00
TRANSISTOR:SILICON,PNP
07263
S035928
Q386
151-0164-00
TRANSISTOR:SILICON,PNP
01295
SKB3334
Q514
151-0192-00
TRANSIST0R:SIL1C0N,NPN,SEL FROM MPS6521
04713
SPS8801
Q518
151-0188-00
TRANSISTOR:SILICON,PNP 04713
SPS6868K
Q524
151-0350-00
TRANSISTOR:SILICON,PNP 04713 SPS6700
Q526
151-0347-00
TRANSISTOR:SILICON,NPN 56289 2N5551
Q544
151-0126-00 TRANSISTOR:SILICON,NPN 04713 ST1046
Q548
151-0188-00
TRANSISTOR:SILICON,PNP
04713 SPS6868K
Q552
151-0426-01 B010100 B032969 TRANSISTOR:SILICON,NPN,SEL FROM D44H11 80009 151-0426-01
Q552
151-0426-02 B032970 B068844 TRANSISTOR:SILICON,NPN,SEL FROM 044H242 80009 151-0426-02
Q552
151-0701-00
B068845
TRANSISTOR:SILICON,NPN
80009
151-0701-00
Q556
151-0364-00 TRANSISTOR:SILICON,PNP
80009
151-0364-00
Q622 ---------
(SEE OPTION SECTION
7 FOR PART NUMBER & VALUE)
Q624 ---------
(SEE OPTION SECTION 7 FOR PART NUMBER
&
VALUE)
Q62.8 ---------
(SEE
OPTION
SECTION 7 FOR PART NUMBER & VALUE)
Q632 ---------
(SEE OPTION SECTION 7
FOR PART NUMBER &
VALUE)
Q652 ---------
(SEE
OPTION SECTION
7 FOR PART NUMBER & VALUE)
Q656 ---------
(SEE OPTION SECTION
7 FOR
PART
NUMBER &
VALUE)
Q662 ---------
(SEE OPTION SECTION
7 FOR PART NUMBER
6
VALUE)
Q666 ---------
(SEE OPTION SECTION
7 FOR PART NUMBER & VALUE)
Q732
Q734
Q736
Q742
Q744
Q746
151-0347-00
151-0347-00
151-0349-00
151-0302-00
151-0136-00
151-0349-00
TRANSISTOR:SILICON,NPN 56289 2N5551
TRANSISTOR:SILICON,NPN 56289 2N5551
TRANSISTOR:SILICON,NPN,SEL FROM MJE2801 04713 SJE924
TRANSISTOR:SILICON,NPN 07263 S038487
TRANSISTOR:SILICON,NPN 02735 35495
TRANSISTOR:SLLICON,NPN,SEL FROM MJE2801 04713 SJE924
REV H, AUG 1980
