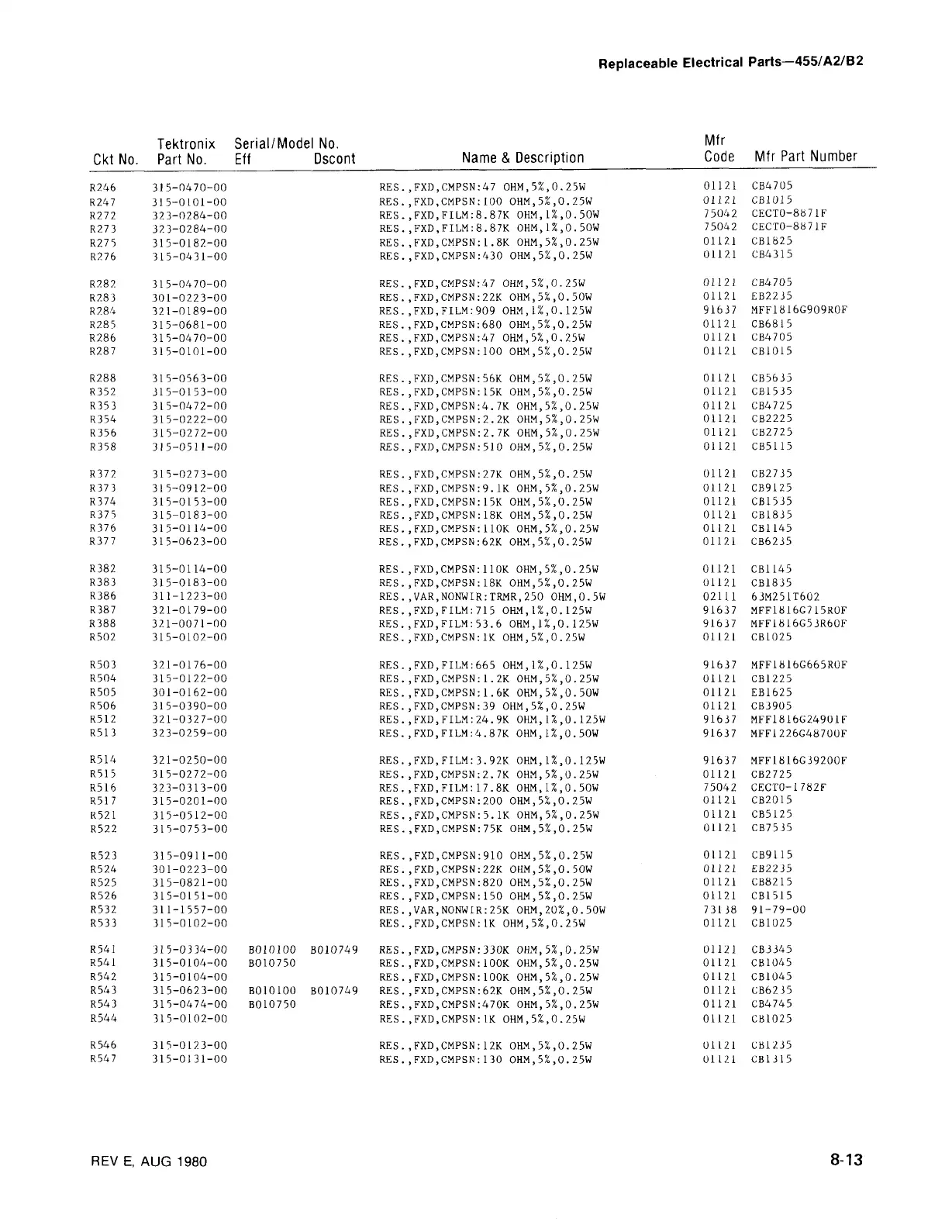

Replaceable Electrical Parts—455/A2/B2
Ckt No.
Tektronix
Part No.
Serial/Model No.
Eft Dscont
Name & Description
Mfr
Code
Mfr Part Number
R246 315-0470-00
RES.
,FXD,CMPSN:47 OHM,5%,0.25W
01121 CB4705
R247 315-0101-00
RES .
,FXD,CMPSN:100 OHM,5%,0.25W
Oil 21
CB1015
R272
323-0284-00
RES.
, FXD,FILM:8.87K OHM,1%,0.50W
75042
CECTO-887IF
R27 3 323-0284-00
RES.
,FXD,FILM:8.87K OHM,1%,0.50W
75042
CECTO-8871F
R27 3
315-0182-00
RES.
,FXD,CMPSN:1.8K OHM,5%,0.25W
01121 CB1825
R276 315-0431-00
RES.
,FXD,CMPSN:430 OHM,5%,0.25W
01121
CB4315
R282 315-0470-00 RES.
,FXD,CMPSN:47 0HM,5%,0.25W
01121 CB4705
R283
301-0223-00 RES .
,FXD,CMPSN:22K OHM,5%,0.50W
01121 EB2235
R284
321-0189-00
RES .
,FXD,FILM:909 OHM,1%,0.125W
91637
MFF1816G909R0F
R28 5 315-0681-00 RES .
,FXD,CMPSN:680 OHM,5%,0.25W
01121 CB6815
R286 315-0470-00 RES. ,FXD,CMPSN:47 OHM,5%,0.25W
01121
CB4705
R287
315-0101-00 RES .,FXD,CMPSN:100 OHM,5%,0.25W
01121 CB1015
R288
315-0563-00 RES .,FXD,CMPSN:56K OHM,5%,0.25W
01121 CB5635
R352
315-0153-00 RES. ,FXD,CMPSN:15K OHM,5%,0.25W
01121
CB1535
R35 3 315-0472-00
RES.
,FXD,CMPSN:4.7K OHM,5%,0.25W
01121 CB4725
R354
315-0222-00
RES.
,FXD,CMPSN:2.2K OHM,5%,0.25W
01121
CB2225
R356 315-0272-00 RES.
,FXD,CMPSN:2.7K OHM,5%,0.25W
01121 CB2725
R358 315-0511-00
RES. ,FXD,CMPSN:510 OHM,5%,0.25W
01121 CB5115
R372
315-0273-00
RES.
,FXD,CMPSN:27K OHM,5%,0.25W
01121 CB2735
R373
315-0912-00 RES. ,FXD,CMPSN:9.IK OHM,5%,0.25W
01121 CB9125
R374 315-0153-00
RES. ,FXD,CMPSN:15K OHM,5%,0.25W
01121 CB1535
R375
315-0183-00
RES.
,FXD,CMPSN:18K OHM,5%,0.25W
01121 CB1835
R376 315-0114-00
RES .,FXD,CMPSN:110K OHM,5%,0.25W
01121 CB1145
R37 7
315-0623-00
RES. ,FXD,CMPSN:62K OHM,5%,0.25W
01121 CB6235
R382
315-0114-00
RES.
,FXD,CMPSN:110K OHM,5%,0.25W 01121 CB1145
R383 315-0183-00
RES. ,FXD,CMPSN:18K OHM,5%,0.25W 01121 CB1835
R386
311-1223-00
RES .,VAR,NONWIR:TRMR,250 OHM.0.5W 02111 63M251T602
R387 321-0179-00
RES. ,FXD,FILM:715 OHM,1 %,0.125W 91637
MFF1816G715R0F
R388 321-0071-00
RES. ,FXD,FILM:53.6 OHM,1%,0.125W
91637
MFF1816G53R60F
R502
315-0102-00
RES.
,FXD,CMPSN:IK OHM,5%,0.25W
01121 CB1025
R503 32.1-0176-00
RES .,FXD,FILM:665 OHM,1%,0.125W
91637
MFF1816G665R0F
R504
315-0122-00 RES .,FXD,CMPSN:1.2K OHM,5%,0.25W 01121 CB1225
R505 301-0162-00
RES .
,FXD,CMPSN:1.6K OHM,5%,0.50W 01121 EB1625
R506 315-0390-00
RES .,FXD,CMPSN:39 OHM,5%,0.25W 01121 CB3905
R512
321-0327-00
RES.
,FXD,FILM:24.9K OHM,1 %,0.125W 91637 MFF1816G24901F
R513
323-0259-00
RES. ,FXD,FILM:4.87K OHM,1%,0.50W
91637
MFF1226G48700F
R514
321-0250-00
RES .
,FXD,FILM:3.92K OHM,1%,0.125W 91637
MFF1816G39200F
R515 315-0272-00
RES. ,FXD,CMPSN:2.7K OHM,5%,0.25W 01121 CB2725
R516 323-0313-00 RES. ,FXD,FILM:17.8K OHM,1%,0.50W
75042 CECTO-1782F
R517
315-0201-00 RES. ,FXD,CMPSN:200 OHM,5%,0.25W
01121 CB2015
R521 315-0512-00 RES. ,FXD,CMPSN:5.IK OHM,5%,0.25W
01121 CBS 125
R522 315-0753-00 RES .,FXD,CMPSN:75K OHM,5%,0.25W
01121
CB7535
R523
315-0911-00
RES.
,FXD,CMPSN:910 0HM,5%,0.25W
01121 CB9115
R524
301-0223-00 RES .
,FXD,CMPSN:22K OHM,5%,0.50W
01121 EB2235
R525 315-0821-00 RES. ,FXD,CMPSN:820 OHM,5%,0.25W
01121
CB8215
R526
315-0151-00 RES. ,FXD,CMPSN:150 OHM,5%,0.25W
01121 CB1515
R532
311-1557-00 RES .,VAR,NONWIR:25K OHM,20%,0.50W 73138
91-79-00
R533 315-0102-00
RES. ,FXD,CMPSN:IK OHM,5%,0.25W
01121
CB1025
R541
315-0334-00 B010100 B010749 RES .
,FXD,CMPSN:330K OHM,5%,0.25W 01121 CB3345
R541
315-0104-00 B010750 RES. ,FXD,CMPSN:100K OHM,5%,0.25W
01121 CB1045
R542
315-0104-00 RES .,FXD,CMPSN:100K OHM,5%,0.25W
01121 CB1045
R543
315-0623-00 B010100 B010749 RES.
,FXD,CMPSN:62K OHM,5%,0.25W 01121
CB6235
R543
315-0474-00
B010750
RES.
,FXD,CMPSN:470K OHM,5%,0.25W
01121 CB4745
R544
315-0102-00
RES. ,FXD,CMPSN:IK OHM,5%,0.25W
01121 CB1025
R546
315-0123-00 RES. ,FXD,CMPSN:12K OHM,5%,0.25W
01121
CB1235
R547
315-0131-00 RES.
,FXD,CMPSN:130 OHM,5%,0.25W
01121
CB1315
REV E, AUG 1980
8-13
