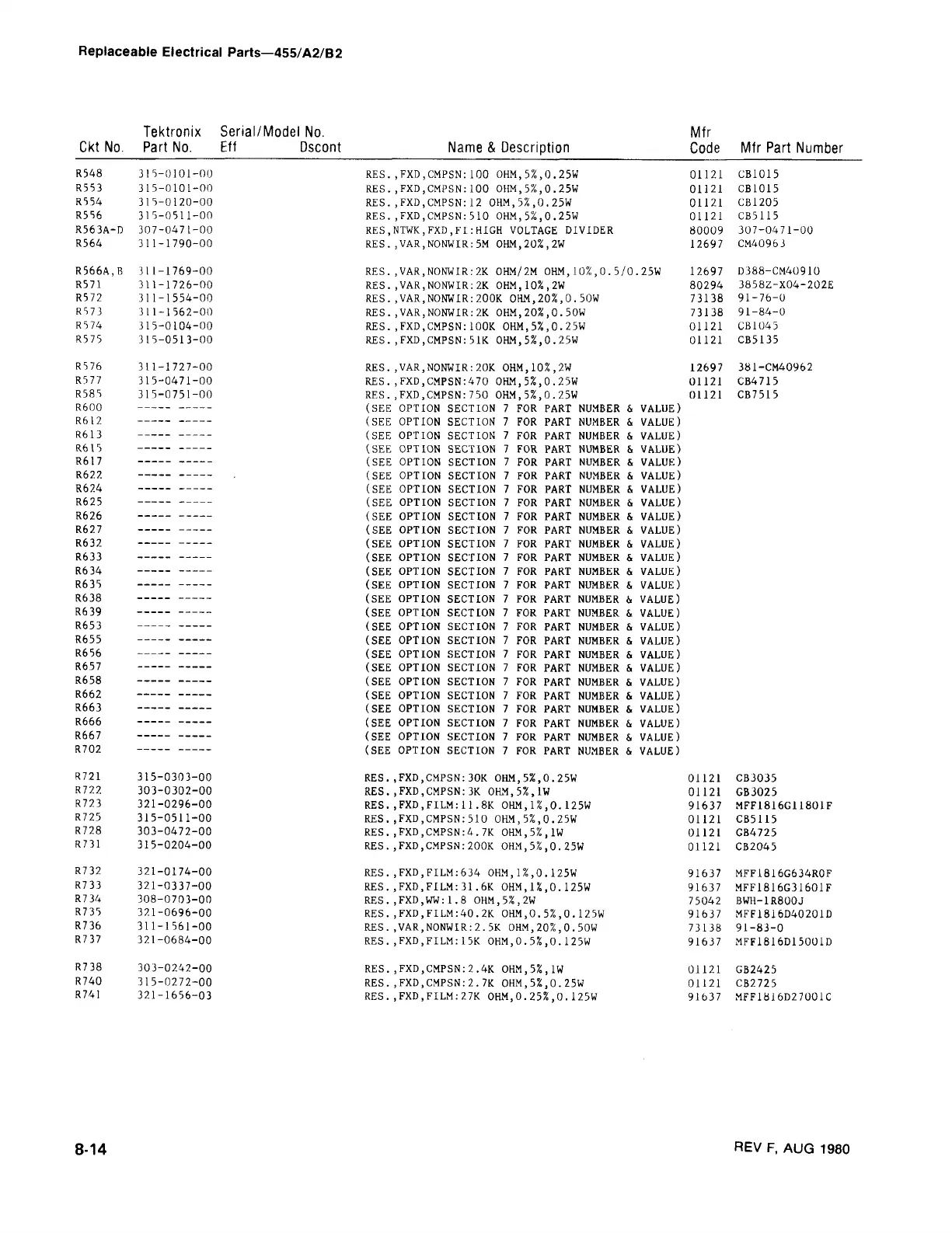

Replaceable Electrical Parts—455/A2/B2
Ckt No.
Tektronix Serial/Model No.
Part No. Eff Dscont
Name & Description
Mfr
Code Mfr Part Number
R548 315-0101-00
R553 315-0101-00
R554 315-0120-00
R556 315-0511-00
R563A-D 307-0471-00
R564 311-1790-00
RES.,FXD,CMPSN:100 OHM,5%,0.25W 01121
RES.,FXD,CMPSN:100 OHM,5%,0.25W 01121
RES.,FXD,CMPSN:12 OHM,5%,0.25W 01121
RES.,FXD,CMPSN:510 OHM,5%,0.25W 01121
RES,NTWK,FXD,FI:HIGH VOLTAGE DIVIDER 80009
RES.,VAR,NONWIR:5M OHM,20%,2W 12697
R566A,B 311-1769-00
R571 311-1726-00
R572 311-1554-00
R 57 3 3 1 1-1 562-00
R574 315-0104-00
R575 315-0513-00
RES.,VAR,NONWIR:2K 0HM/2M OHM,10%,0.5/0.25W 12697
RES. ,VAR,NONWIR: 2K OHM,107.,2W 80294
RES.,VAR,NONWIR:200K OHM,207,0.50W 73138
RES.,VAR,NONWIR:2K OHM,207,0.50W 73138
RES.,FXD,CMPSN:100K OHM,57,0.25W 01121
RES.,FXD,CMPSN:51K OHM,57,0.25W 01121
R576 311-1727-00 RES.,VAR,NONWIR:20K OHM,107,2W 12697
R577 315-0471-00 RES.,FXD,CMPSN:470 OHM,57,0.25W 01121
R585 315-0751-00 RES.,FXD,CMPSN:750 OHM,57,0.25W 01121
R600 ---------- (SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
R612 ---- ----- (SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
R613 --------- (SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
R615 ---- ----- (SEE OPTION SECTION 7 FOR PART NUMBER 8. VALUE)
R617 ---------- (SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
R62.2. --------- (SEE OPTION SECTION 7 FOR PART NUMBER S, VALUE)
R62.4 --------- (SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
R625 --------- (SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
R626 --------- (SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
R627 ---- ----- (SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
R632 --------- (SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
R633 --------- (SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
R634 ---------- (SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
R635 --------- (SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
R638 ---- ----- (SEE OPTION SECTION 7 FOR PART NUMBER i, VALUE)
R6 39 ---------- (SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
R653 --------- (SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
R655 ---- ----- (SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
R656 --------- (SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
R657 --------- (SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
R658 ---------- (SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
R662 ---------- (SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
R663 --------- (SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
R666 ---------- (SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
R667 ---- ----- (SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
R702 ---- ---- (SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
R72 1
315-0303-00
RES
R722
303-0302-00
RES
R72 3
321-0296-00
RES
R725
315-0511-00
RES
R728
303-0472-00
RES
R731
315-0204-00
RES
R7 32
321-0174-00
RES
R733
321-0337-00
RES
R734
308-0703-00
RES
R735
321-0696-00
RES
R736
311-1561-00
RES
R737
321-0684-00
RES
R738
303-0242-00 RES
R740
315-0272-00 RES
R741
321-1656-03
RES
FXD,CMPSN:30K 0HM,5%,0.25W 01121
FXD,CMPSN:3K 0HM,5%,1W 01121
FXD,FILM:11.8K OHM,1 %,0.125W 91637
FXD,CMPSN:510 OHM,5%,0.25W 01121
FXD,CMPSN:4.7K 0HM,5%,1W 01121
FXD,CMPSN:200K OHM,5%,0.25W 01121
FXD,FILM:634 OHM,1 %,0.125W 91637
FXD,FILM:31.6K OHM,1% ,0.125W 91637
FXD,WW:1.8 OHM,5%,2W 75042
FXD,FILM:40.2K OHM,0.5%,0.125W 91637
VAR,NONWIR:2.5K OHM,20%,0.50W 73138
FXD,FILM:15K OHM,0.5%,0.125W 91637
FXD,CMPSN:2.4K OHM,5%,1W 01121
FXD,CMPSN:2.7K OHM,5%,0.25W 01121
FXD,FILM:27K OHM,0.25%,0.125W 91637
CB1015
CB1015
CB1205
CB5115
307-0471-00
CM40963
D388-CM40910
3858Z-X04-202E
91-76-0
91-84-0
CB1045
CB5135
381-CM40962
CB4715
CB7515
CB3035
GB3025
MFF1816G11801F
CB5115
GB4725
CB2045
MFF1816G634R0F
MFF1816G31601F
BWH-1R800J
MFF1816D40201D
91-83-0
MFF1816D15001D
GB2425
CB2725
MFF1816D27001C
8-14
REV F, AUG 1980
