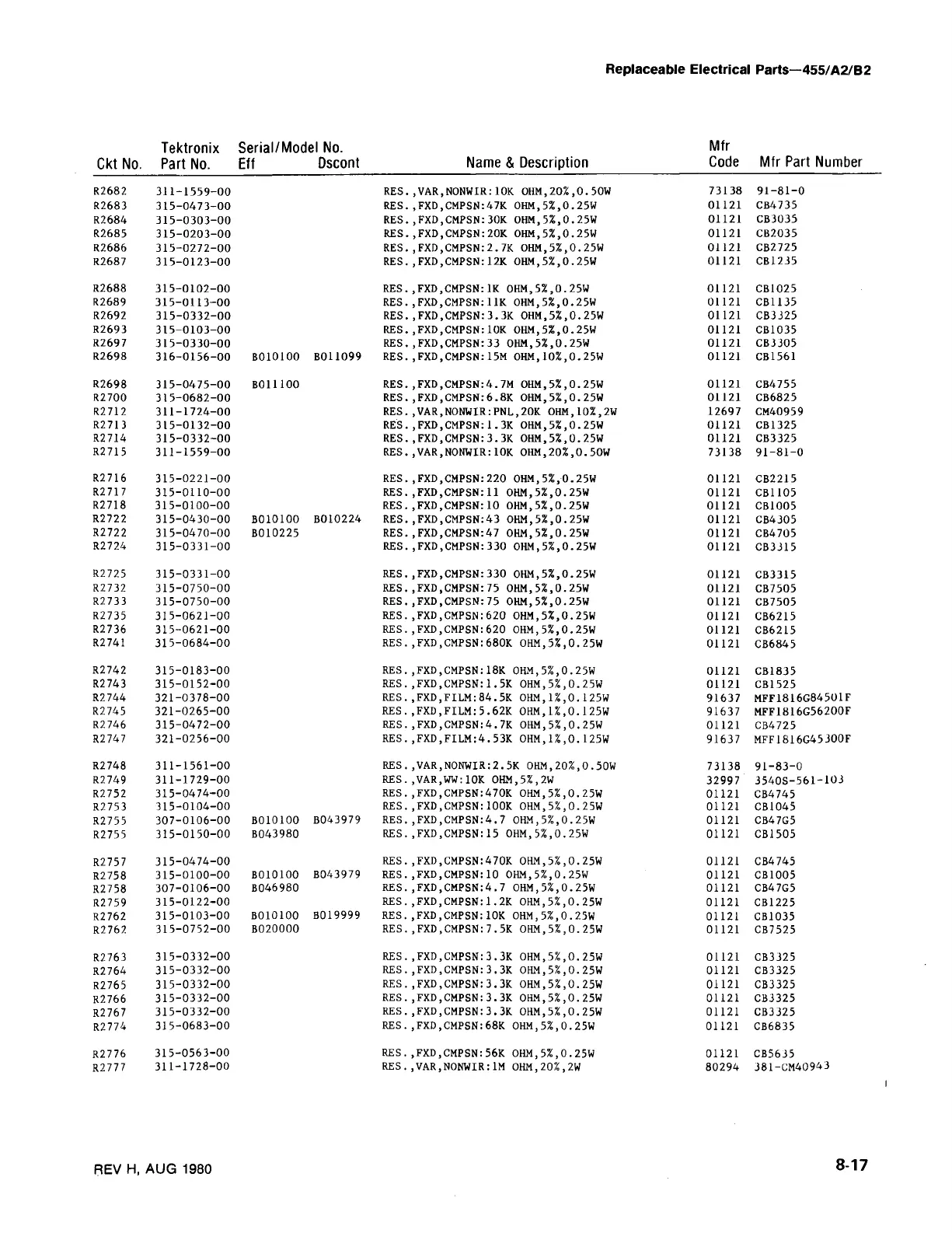

Replaceable Electrical Parts—455/A2/B2
Ckt No.
Tektronix
Part No.
Serial/Model No.
Eft Dscont
Name & Description
Mfr
Code Mfr Part Number
R2682
311-1559-00
RES. ,VAR,NONWIR:10K OHM,20%,0.50W
73138
91-81-0
R2683
315-0473-00
RES. ,FXD,CMPSN:47K OHM,5%,0.25W
01121
CB4735
R2684
315-0303-00
RES. ,FXD,CMPSN:30K OHM,5%,0.25W
01121 CB3035
R2685
315-0203-00
RES. ,FXD,CMPSN:20K OHM,5%,0.25W 01121 CB2035
R2686
315-0272-00
RES. ,FXD,CMPSN:2.7K OHM,5%,0.25W
01121 CB2725
R2687
315-0123-00
RES. ,FXD,CMPSN:12K OHM,5%,0.25W
01121 CB1235
R2688
315-0102-00
RES.
,FXD,CMPSN:IK 0HM,5%,0.25W 01121 CB1025
R2689
315-0113-00
RES. ,FXD,CMPSN:1IK OHM,5%,0.25W
01121
CB1135
R2692
315-0332-00
RES. ,FXD,CMPSN:3.3K OHM,5%,0.25W
01121
CB3325
R2693
315-0103-00 RES.
,FXD,CMPSN:10K OHM,5%,0.25W
01121
CB1035
R2697
315-0330-00
RES. ,FXD,CMPSN:33 OHM,5%,0.25W
01121
CB3305
R2698
316-0156-00
B010100 B011099 RES.
,FXD,CMPSN:15M OHM,10%,0.25W 01121
CB1561
R2698 315-0475-00 B011100
RES. ,FXD,CMPSN:4.7M OHM,5%,0.25W
01121
CB4755
R2700
315-0682-00
RES.
,FXD,CMPSN:6.8K OHM,5%,0.25W
01121
CB6825
R2712
311-1724-00
RES. ,VAR,NONWIR:PNL,20K OHM,10%,2W 12697
CM40959
R2713
315-0132-00
RES. ,FXD,CMPSN:1.3K OHM,5%,0.25W 01121
CB1325
R2714 315-0332-00
RES.
,FXD,CMPSN:3.3K OHM,5%,0.25W
01121
CB3325
R2715 311-1559-00
RES.
,VAR,NONWIR:1OK OHM,20%,0.50W 73138 91-81-0
R2716
315-0221-00
RES.
,FXD,CMPSN:220 OHM,5%,0.25W 01121 CB2215
R2717
315-0110-00
RES. ,FXD,CMPSN:11 OHM,5%,0.25W
01121
CB1105
R2718
315-0100-00 RES. ,FXD,CMPSN:10 OHM,5%,0.25W 01121
CB1005
R2722
315-0430-00 B010100
B010224
RES. ,FXD,CMPSN:43 OHM,5%,0.25W
01121
CB4305
R2722
315-0470-00 B010225
RES. ,FXD,CMPSN:47 OHM,5%,0.25W
01121
CB4705
R2724
315-0331-00
RES. ,FXD,CMPSN:330 OHM,5%,0.25W
01121
CB3315
R2725
315-0331-00
RES. ,FXD,CMPSN:330 OHM,5%,0.25W
01121
CB3315
R2732
315-0750-00 RES. ,FXD,CMPSN:75 OHM,5%,0.25W 01121
CB7505
R2733
315-0750-00
RES.
,FXD,CMPSN:75 OHM,5%,0.25W 01121
CB7505
R2735
315-0621-00
RES.
,FXD,CMPSN:620 OHM,5%,0.25W
01121
CB6215
R2736 315-0621-00
RES.
,FXD,CMPSN:620 OHM,5%,0.25W
01121
CB6215
R2741 315-0684-00
RES.
,FXD,CMPSN:680K OHM,5%,0.25W
01121
CB6845
R2742 315-0183-00
RES.
,FXD,CMPSN:18K OHM,5%,0.25W
01121
CB1835
R2743
315-0152-00
RES.
,FXD,CMPSN:1.5K OHM,5%,0.25W
01121
CB1525
R2744
321-0378-00
RES.
,FXD,FILM:84.5K OHM,1%,0.125W
91637
MFF1816G84501F
R2745
321-0265-00
RES.
,FXD,FILM:5.62K OHM,1%,0.125W
91637
MFF1816G56200F
R2746 315-0472-00
RES.
,FXD,CMPSN:4.7K OHM,5%,0.25W
01121
CB4725
R2747 321-0256-00
RES.
,FXD,FILM:4.53K OHM,1%,0.125W
91637
MFF1816G45300F
R2748
311-1561-00
RES.
,VAR,NONWIR:2.5K OHM,20%,0.50W
73138 91-83-0
R2749
311-1729-00
RES.
,VAR.WW:10K 0HM,5%,2W
32997
3540S-561-103
R2752
315-0474-00
RES.
,FXD,CMPSN:470K OHM,5%,0.25W
01121
CB4745
R2753
315-0104-00
RES.
,FXD,CMPSN:100K OHM,5%,0.25W
01121
CB1045
R2755
307-0106-00 B010100
B043979
RES.
,FXD,CMPSN:4.7 OHM,5%,0.25W
01121
CB47G5
R2755
315-0150-00
B043980
RES.
,FXD,CMPSN:15 0HM,5%,0.25W 01121
CB1505
R2757
315-0474-00
RES.
,FXD,CMPSN:470K OHM,5%,0.25W 01121
CB4745
R2758
315-0100-00
B010100
B043979 RES.
,FXD,CMPSN:10 OHM,5%,0.25W 01121
CB1005
R2758
307-0106-00 B046980
RES. ,FXD,CMPSN:4.7 OHM,5%,0.25W
01121
CB47G5
R2759
315-0122-00
RES.
,FXD,CMPSN:1.2K OHM,5%,0.25W
01121
CB1225
R2762
315-0103-00
B010100
B019999
RES.
,FXD,CMPSN:10K OHM,5%,0.25W
01121
CB1035
R2762
315-0752-00 B020000
RES.
,FXD,CMPSN:7.5K OHM,5%,0.25W
01121
CB7525
R2763
315-0332-00 RES.
,FXD,CMPSN:3.3K OHM,5%,0.25W
01121
CB3325
R2764
315-0332-00
RES.
,FXD,CMPSN:3.3K OHM,5%,0.25W
01121
CB3325
R2765
315-0332-00
RES.
,FXD,CMPSN:3.3K OHM,5%,0.25W 01121
CB3325
R2766
315-0332-00
RES.
,FXD,CMPSN:3.3K OHM,5%,0.25W
01121
CB3325
R2767
315-0332-00
RES.
,FXD,CMPSN:3.3K OHM,5%,0.25W
01121
CB3325
R2774
315-0683-00
RES.
,FXD,CMPSN:68K OHM,5%,0.25W
01121
CB6835
R2776
315-0563-00 RES.
,FXD,CMPSN:56K OHM,5%,0.25W
01121
CB5635
R2777
311-1728-00 RES.
,VAR,NONWIR:1M OHM,20%,2W
80294
381-CM40943
i
REV H, AUG 1980
