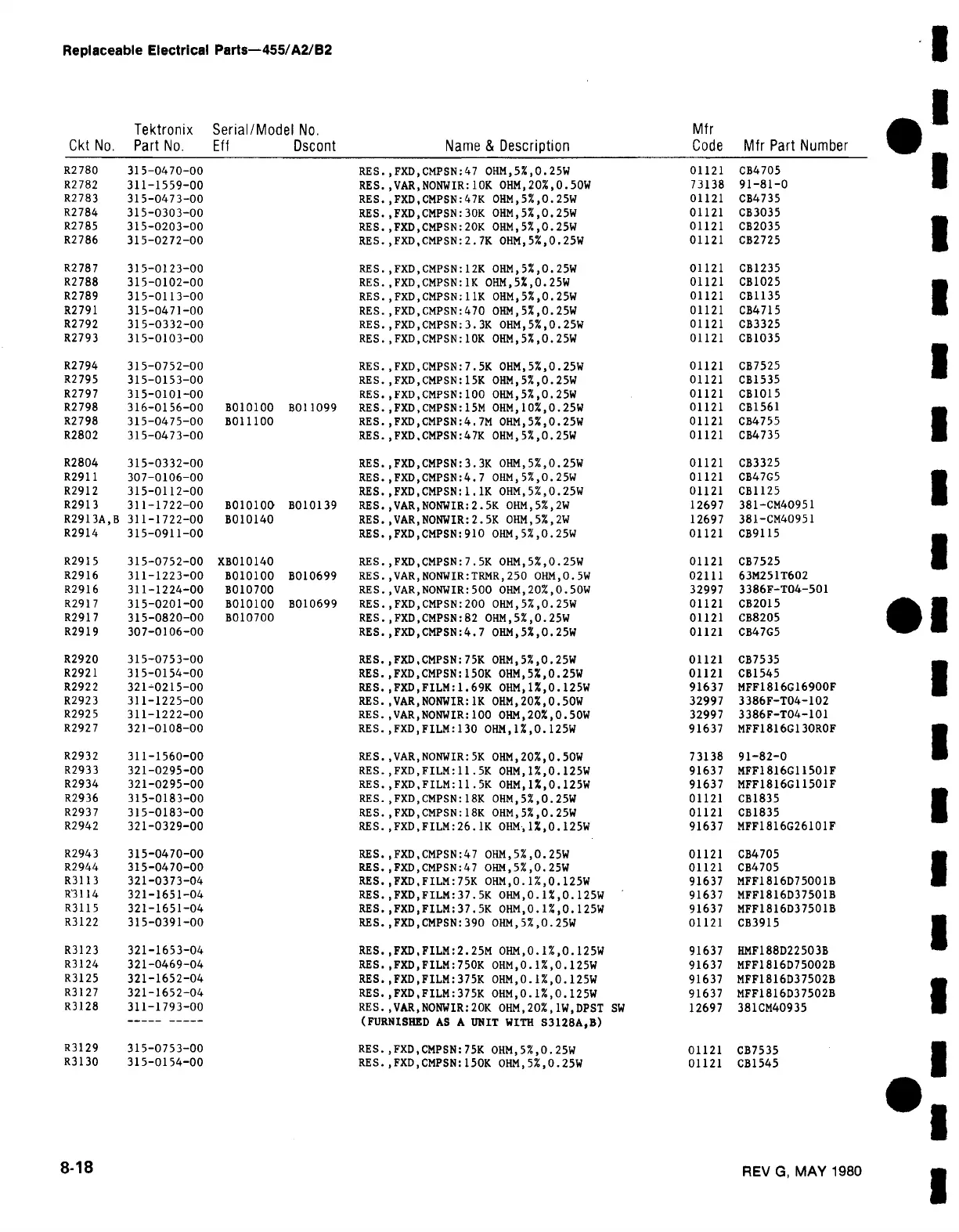

Replaceable Electrical Parts—455/A2/B2
Ckt No.
Tektronix
Part No.
Serial/M o del No.
Eft Dscont Nam e & Description
Mfr
Code
Mfr Part Number
R2780
315-0470-00
RES ,FXD,CMPSN:47 OHM,5%,0.25W
01121 CB4705
R2782
311-1559-00 RES.
,VAR,NONWIR:1 OK OHM,20%,0.50W
73138
91-81-0
R2783
315-0473-00
RES.
,FXD,CMPSN:47K OHM,5%,0.25W
01121 CB4735
R2784
315-0303-00
RES.
,FXD,CMPSN:30K OHM,5%,0.25W 01121 CB3035
R2785
315-0203-00
RES.
,FXD,CMPSN:20K OHM,5%,0.25W
01121 CB2035
R2786
315-0272-00 RES.
,FXD,CMPSN:2.7K OHM,5%,0.25W
01121 CB2725
R2787
315-0123-00 RES ,FXD,CMPSN:12K OHM,5%,0.25W
01121 CB1235
R2788
315-0102-00 RES. ,FXD,CMPSN:IK OHM,5%,0.25W
01121
CB1025
R2789
315-0113-00 RES ,FXD,CMPSN:1IK OHM,5%,0.25W
01121 CB1135
R2791
315-0471-00 RES.
,FXD,CMPSN:470 OHM,5%,0.25W
01121 CB4715
R2792
315-0332-00 RES ,FXD,CMPSN:3.3K OHM,5%,0.25W
01121 CB3325
R2793
315-0103-00 RES ,FXD,CMPSN:1 OK OHM,5%,0.25W
01121 CB1035
R2794
315-0752-00 RES.
,FXD,CMPSN:7.5K OHM,5%,0.25W
01121
CB7525
R2795
315-0153-00
RES. ,FXD,CMPSN:15K OHM,5%,0.25W
01121
CB1535
R2797
315-0101-00 RES. ,FXD,CMPSN:100 OHM,5%,0.25W
01121
CB1015
R2798
316-0156-00 B010100 B011099 RES. ,FXD,CMPSN:15M OHM,10%,0.25W
01121 CB1561
R2798
315-0475-00 B011100 RES.
,FXD,CMPSN:4.7M OHM,5%,0.25W
01121
CB4755
R2802
315-0473-00 RES. ,FXD.CMPSN:47K OHM,5%,0.25W
01121
CB4735
R2804
315-0332-00 RES. ,FXD,CMPSN:3.3K OHM,5%,0.25W
01121
CB3325
R2911 307-0106-00
RES.
,FXD,CMPSN:4.7 OHM,5%,0.25W
01121
CB47G5
R2912
315-0112-00 RES. ,FXD,CMPSN:1.IK OHM,5%,0.25W 01121
CB1125
R2913
311-1722-00
B010100 B010139 RES. ,VAR,NONWIR:2.5K OHM,5%,2W
12697
381-CM40951
R2913A.B
311-1722-00 B010140 RES. ,VAR,NONWIR:2.5K OHM,5%,2W 12697
381-CM40951
R2914
315-0911-00 RES.
,FXD,CMPSN:910 OHM,5%,0.25W
01121
CB9115
R2915
315-0752-00 XB010140
RES.
,FXD,CMPSN:7.5K OHM,5%,0.25W 01121
CB7525
R2916
311-1223-00
B010100 B010699
RES ,VAR,NONWIR:TRMR,250 0HM.0.5W
02111
63M251T602
R2916
311-1224-00
B010700
RES ,VAR,NONWIR:500 OHM,20%,0.50W 32997
3386F-T04-501
R2917
315-0201-00 B010100
B010699 RES ,FXD,CMPSN:200 OHM,5%,0.25W 01121
CB2015
R2917 315-0820-00 B010700 RES
,FXD,CMPSN:82 OHM,5%,0.25W 01121 CB8205
R2919
307-0106-00
RES.
,FXD,CMPSN:4.7 OHM,5%,0.25W
01121 CB47G5
R2920 315-0753-00 RES.
,FXD,CMPSN:75K OHM,5%,0.25W 01121 CB7535
R2921
315-0154-00 RES.
,FXD,CMPSN:150K OHM,5%,0.25W
01121 CB1545
R2922
321-0215-00
RES. ,FXD,FILM:1.69K OHM,1%,0.125W
91637
MFF1816G16900F
R2923
311-1225-00 RES.
,VAR,NONWIR:IK OHM,20%,0.50W
32997 3386F-T04-102
R2925
311-1222-00
RES.
,VAR,NONWIR:100 OHM,20%,0.50W
32997
3386F-T04-101
R2927
321-0108-00
RES.
,FXD,FILM:130 OHM,1%,0.125W
91637
MFF1816G130R0F
R2932
311-1560-00 RES. ,VAR,NONWIR:5K OHM,20%,0.50W 73138 91-82-0
R2933
321-0295-00
RES.
,FXD,FILM:11.5K OHM,1%,0.125W 91637
MFF1816G11501F
R2934
321-0295-00 RES. ,FXD,FILM:11.5K OHM,1%,0.125W 91637
MFF1816G11501F
R2936
315-0183-00 RES. ,FXD,CMPSN:18K OHM,5%,0.25W 01121 CB1835
R2937
315-0183-00 RES. ,FXD,CMPSN:18K OHM,5%,0.25W 01121
CB1835
R2942
321-0329-00
RES.
,FXD,FILM:26.IK OHM,1%,0.125W 91637
MFF1816G26101F
R2943
315-0470-00 RES. ,FXD,CMPSN:47 OHM,5%,0.25W
01121 CB4705
R2944
315-0470-00 RES. ,FXD,CMPSN:47 OHM,5%,0.25W 01121 CB4705
R3113 321-0373-04
RES.
,FXD,FILM:75K OHM,0.1%,0.125W 91637
MFF1816D75001B
R'3114
321-1651-04
RES. ,FXD,FILM:37.5K OHM,0.1%,0.125W 91637
MFF1816D37501B
R3115
321-1651-04 RES.
,FXD,FILM:37.5K OHM.O.1%,0.125W 91637
MFF1816D37501B
R3122
315-0391-00
RES. ,FXD,CMPSN:390 OHM,5%,0.25W 01121
CB3915
R3123 321-1653-04
RES. ,FXD,FILM:2.25M OHM,0.1%,0.125W
91637
HMF188D22503B
R3124
321-0469-04 RES.
,FXD,FILM:750K 0HM,0.1%,0.125W
91637
MFF1816D75002B
R3125 321-1652-04
RES.
,FXD,FILM:375K OHM.O.1%,0.125W 91637
MFF1816D37502B
R3127
321-1652-04
RES.
,FXD,FILM:375K OHM.O.1%,0.125W 91637
MFF1816D37502B
R3128
311-1793-00 RES.
,VAR,NONWIR:20K OHM,20%,1W.DPST SW
12697 381CM40935
(FURNISHED AS A UNIT WITH S3128A.B)
R3129
315-0753-00
RES.
,FXD,CMPSN:75K OHM,5%,0.25W
01121
CB7535
R3130
315-0154-00 RES.
,FXD,CMPSN:150K OHM,5%,0.25W
01121 CB1545
8-18
REV G, MAY 1980
