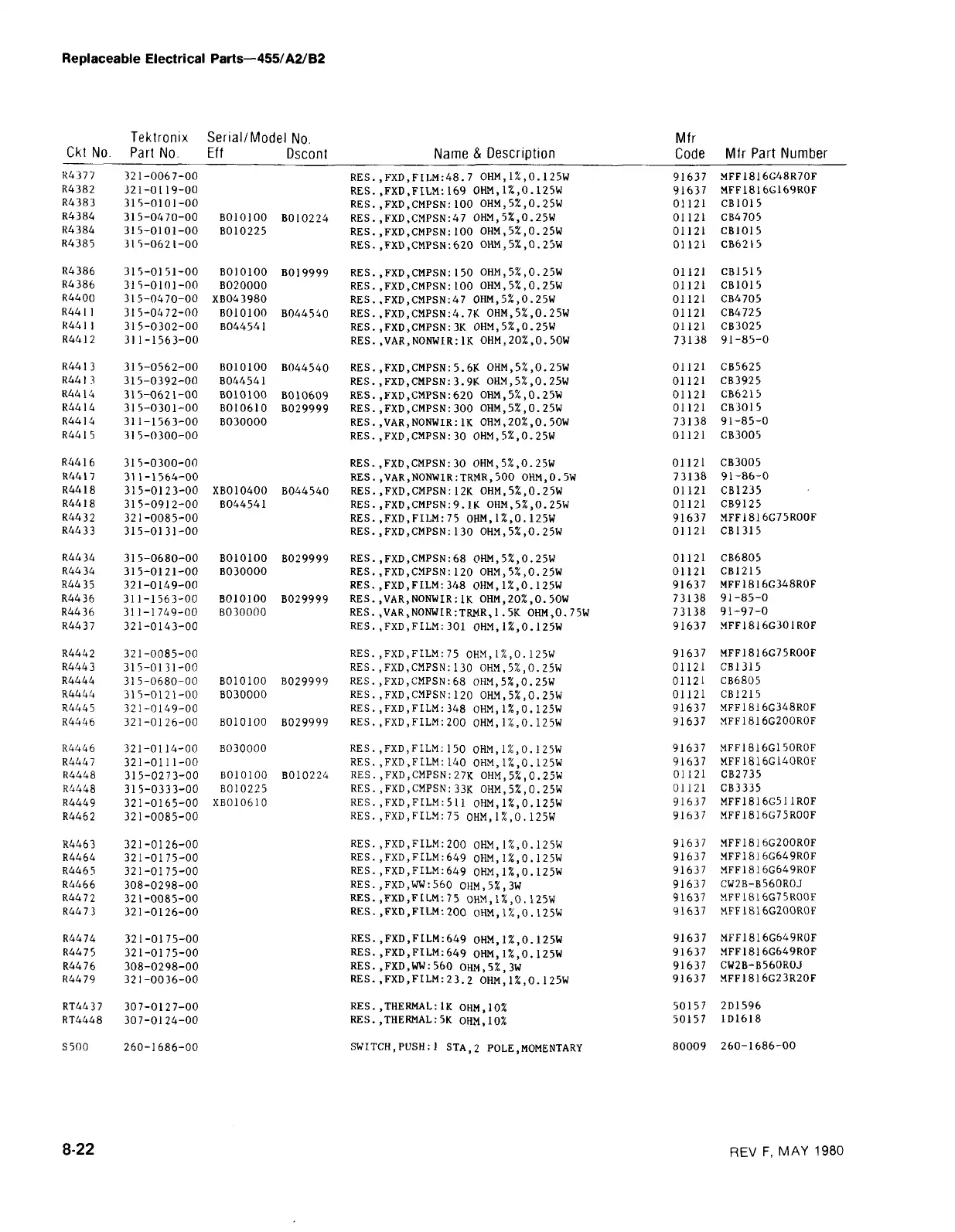

Tektronix 455 - Page 160

Replaceable Electrical Parts—455/A2/B2
Ckt No.
Tektronix
Part No.
Serial/Model No.
Eft Dscont
Name & Description
Mfr
Code
Mfr Part Number
R4377
321-0067-00
RES ,FXD,FILM:48.7 OHM,1 %,0.125W
91637
MFF1816G48R70F
R4382 321-0119-00
RES ,FXD,FILM:169 OHM,1%,0.125W
91637
MFF1816G169R0F
R4383
316-0101-00
RES .FXD.CMPSN:100 OHM,5%,0.25W 01121
CB1015
R4384
315-0470-00
B010100
BO 10224
RES
,FXD,CMPSN:47 0HM,5%,0.25W 01121
CB4705
R4384
315-0101-00
B010225 RES
,FXD.CMPSN:100 OHM,5%,0.25W
01121
CB1015
R4385
315-0621-00
RES ,FXD.CMPSN:620 OHM,5%,0.23W 01121
CB6215
R4386
315-0151-00
BO 10100
B019999
RES .FXD.CMPSN:150 OHM,5%,0.25W 01121
CBl515
R4386
315-0101-00
B020000 RES
.FXD.CMPSN:100 OHM,5%,0.25W
01121
CB1015
R4400
315-0470-00
XB043980 RES
.FXD.CMPSN:47 OHM,5%,0.25W
01121
CB4705
R441 1
315-0472-00
B010100
B044540
RES
,FXD.CMPSN:4.7K 0HM,5%,0.25W
01121
CB4725
R44] ]
315-0302-00 B044541
RES .FXD.CMPSN:3K 0HM,5%,0.25W 01121
CB3025
R4412
311-1563-00
RES ,VAR,NONWIR:IK OHM,20%,0.50W
73138 91-85-0
R441 3
315-0562-00
B010100
B044540
RES
.FXD.CMPSN:5.6K OHM,5%,0.25W
01121 CB5625
R44 1 3
315-0392-00 B044541
RES. .FXD.CMPSN:3.9K OHM,5%,0.25W 01121
CB3925
R4414
315-0621-00 B010100
BO 10609
RES .FXD.CMPSN: 620 OHM, 5%,0.25VJ
01121
CB6215
R4414
315-0301-00
BOI0610
B029999
RES
.FXD.CMPSN:300 OHM,5%,0.25W
01121
CB3015
R441 4
311-1563-00 B030000 RES
,VAR,NONWIR:IK OHM,20%,0.50W
73138
91-85-0
R441 5
315-0300-00
RES.
.FXD.CMPSN:30 0HM,5%,0.25W
01121
CB3005
R4416
315-0300-00 RES.
.FXD.CMPSN:30 OHM,5%,0.25W
01121
CB3005
R4417
311-1564-00
RES ,VAR,NONWIR:TRMR,500 OHM.0.5W
73138
91-86-0
R4418
315-0123-00 XB010400
B044540
RES
.FXD.CMPSN:12K OHM,5%,0.25W
01121 CB1235
R4418
315-0912-00 B044541 RES
,FXD.CMPSN:9.IK OHM,5%,0.25W
01121 CB9125
R4432 321-0085-00 RES
,FXD,FILM:75 OHM,1%,0.125W
91637
MFF1816G75ROOF
R4433 315-0131-00 RES.
.FXD.CMPSN:130 0HM,5%,0.25W
01121 CB1315
R4434
315-0680-00 B010100
B029999
RES
,FXD.CMPSN:68 0HM,5%,0.25W
01121
CB6805
R44 34
315-0121-00
B030000 RES.
.FXD.CMPSN:120 OHM,5%,0.25W
01121
CBl215
R4435 321-0149-00 RES.
,FXD,FILM:348 OHM,1%,0.125W
91637
MFF1816G348R0F
R4436
311-1563-00
B010100
B029999
RES.
,VAR,NONWIR:IK OHM,20%,0.50W
73138
91-85-0
R4436
311-1749-00 B030000
RES.
,VAR,N0NWIR:TRMR,1.5K OHM.0.75W
73138
91-97-0
R4437
321-0143-00
RES
,FXD,FILM:301 OHM,1%,0.125W
91637
MFF1816G301ROF
R4442
321-0085-00
RES.
,FXD,FILM:75 OHM,1 %,0.125W
91637 MFF1816G75R00F
R4443
315-0131-00
RES.
.FXD.CMPSN:130 OHM,5%,0.25W
01121
CBl315
R4444 315-0680-00 B010100
B029999
RES.
,FXD,CMPSN:68 OHM,5%,0.25W
01121
CB6805
R4444
315-0121-00
B030000 RES
,FXD.CMPSN:120 0HM,5%,0.25W
01121
CB1215
R4445
321-0149-00
RES
,FXD,FILM:348 OHM,1 %,0.125W
91637
MFF1816G348R0F
R4446
321-0126-00
B010100
B029999
RES
,FXD,FILM:200 OHM,1%,0.125W
91637
MFF1816G200R0F
R4446
321-0114-00
B030000 RES
,FXD,FILM:150 OHM,1 %,0.125W
91637
MFF1816G150R0F
R4447 321-0111-00
RES
,FXD,FILM:140 OHM,1%,0.125W
91637
MFF1816G140R0F
R4448
315-0273-00
B010100 B010224
RES
,FXD,CMPSN:27K OHM,5%,0.25W
01121 CB2735
R4448 315-0333-00
B010225
RES
.FXD.CMPSN:33K OHM,5%,0.25W
01121 CB3335
R4449 321-0165-00
XB010610
RES
,FXD,FILM:511 OHM,1%,0.125W
91637
MFF1816G511ROF
R4462 321-0085-00
RES
,FXD,FILM:75 OHM,1 X ,0.125W
91637
MFF1816G75R00F
R4463 321-0126-00
RES
,FXD,FILM:200 OHM,1%,0.125W
91637
MFF1816G200R0F
R4464
321-0175-00
RES
,FXD,FILM:649 OHM,1 %,0.125W
91637
MFF1816G649R0F
R4465
321-0175-00
RES
,FXD,FILM:649 OHM,1 %,0.125W
91637
MFF1816G649R0F
R4466
308-0298-00
RES
,FXD,WW:560 OHM,5%,3W
91637
CW2B-B560R0J
R4472
321-0085-00
RES
,FXD,FILM:75 OHM,1%,0.125W
91637
MFF1816G75ROOF
R4473
321-0126-00
RES
,FXD.FILM:200 OHM,1%,0.125W
91637
MFF1816G200R0F
R4474
321-0175-00
RES
,FXD,FILM:649 OHM,1%,0.125W
91637
MFF1816G649R0F
R4475
321-0175-00
RES
,FXD,FILM:649 OHM,1 %,0.125W
91637
MFF1816G649R0F
R4476
308-0298-00
RES
,FXD.WW:560 OHM,5%,3W
91637
CW2B-B560R0J
R4479 321-0036-00
RES.
,FXD,FILM:23.2 0HM,1%,0.125W
91637
MFF1816G23R20F
RT4437 307-0127-00
RES
.THERMAL:IK OHM,10%
50157 2D1596
RT4448 307-0124-00
RES.
.THERMAL:5K OHM,10%
50157
1D1618
S 500
260-1686-00 SWITCH,PUSH:1 STA.2 POLE,MOMENTARY
80009
260-1686-00
8-22 REV F, MAY 1980
