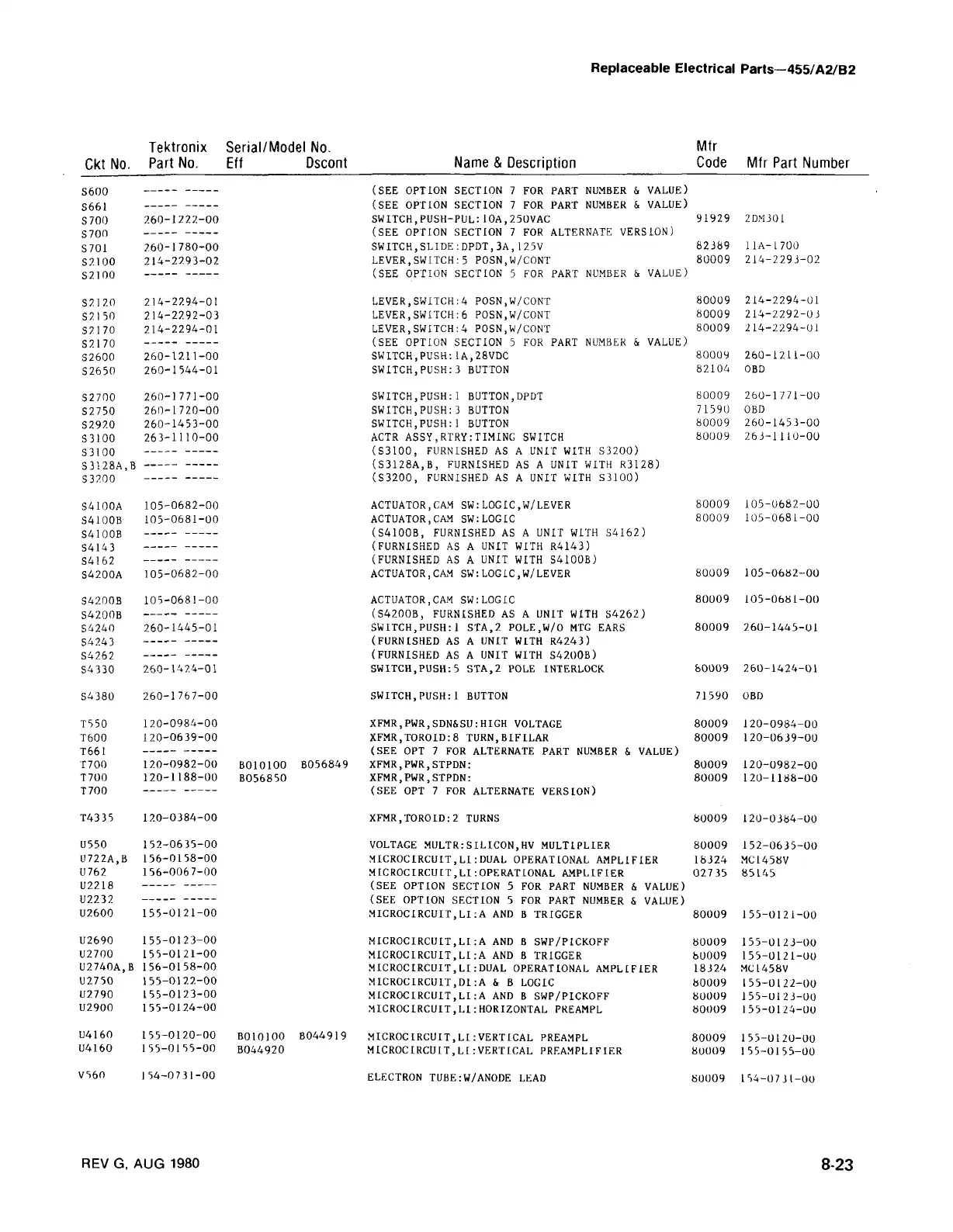

Replaceable Electrical Parts—455/A2/B2
Ckt No.
Tektronix
Part No.
Serial/Model No.
Eft Dscont
Name & Description
Mfr
Code
Mfr Part Number
S600
(SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
S661
(SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
S700
260-1222-00
SWITCH,PUSH-PUL:1OA,250VAC
91929 2DM301
S700
(SEE OPTION SECTION 7 FOR ALTERNATE VERSION)
S701
260-1780-00
SWITCH,SLIDE:DPDT,3A,125V
82389 11A-1700
S2100
214-2293-02
LEVER,SWITCH:5 POSN,W/CONT
80009
214-2293-02
S2100
(SEE OPTION SECTION 5 FOR PART NUMBER & VALUE)
szi zo
214-2294-01
LEVER,SWITCH:4 POSN.W/CONT
80009
214-2294-01
S21 50
214-2292-03
LEVER,SWITCH:6 POSN.W/CONT
80009 214-2292-03
S7.1 70
214-2294-01 LEVER,SWITCH:4 POSN.W/CONT
80009 214-2294-01
S2170
(SEE OPTION SECTION 5 FOR PART NUMBER & VALUE)
S2600
260-12.11-00
SWITCH,PUSH:1A.28VDC
80009 260-1211-00
S2650
260-1544-01
SWITCH,PUSH:3 BUTTON
82104
OBD
S2.700
260-1771-00
SWITCH,PUSH:1 BUTTON,DPDT
80009 260-1771-00
S2750
260-1720-00
SWITCH,PUSH:3 BUTTON
71590
OBD
S292.0
260-1453-00
SWITCH,PUSH : 1 BUTTON
80009
260-1453-00
S 3100
263-1110-00
ACTR ASSY,RTRY:TIMING SWITCH
80009
263-1110-00
S 3100
( S3 100, FURNISHED AS A UNIT WITH S3200)
S3128A.B
(S3128A.B, FURNISHED AS A UNIT WITH R3128)
S 3200
( S3200, FURNISHED AS A UNIT WITH S3IOO)
S4100A
105-0682-00
ACTUATOR,CAM SW : LOGIC.W/LEVER
80009 105-0682-00
S4100B
105-0681-00
ACTUATOR,CAM SW:LOGIC
80009
105-0681-00
S4100B
(S4100B, FURNISHED AS A UNIT WITH S4162)
S4143
(FURNISHED AS A UNIT WITH R4143)
S 416 2
(FURNISHED AS A UNIT WITH S4100B)
S4200A
105-0682-00
ACTUATOR,CAM SW:LOGIC.W/LEVER
80009 105-0682-00
S4200B
105-0681-00
ACTUATOR,CAM SW:LOGIC
80009 105-0681-00
S4200B
( S4200B, FURNISHED AS A UNIT WITH S4262 )
S4240
260-1445-01
SWITCH,PUSH:1 STA,2 POLE.W/O MTG EARS
80009
260-1445-01
S4243
(FURNISHED AS A UNIT WITH R4243)
S4262
(FURNISHED AS A UNIT WITH S4200B)
S4330
260-1424-01 SWITCH,PUSH:5 STA.2 POLE INTERLOCK 80009 260-1424-01
S4380
260-1767-00
SWITCH,PUSH:1 BUTTON 71590 OBD
T550
120-0984-00 XFMR,PWR,SDN&SU:HIGH VOLTAGE 80009
120-0984-00
T600
120-0639-00 XFMR,TOROID:8 TURN.BIFILAR 80009
120-0639-00
T661
(SEE OPT 7 FOR ALTERNATE PART NUMBER & VALUE)
T700
120-0982-00
B010100
B056849 XFMR,PWR,STPDN:
80009
120-0982-00
T700 120-1188-00
B056850
XFMR,PWR,STPDN:
80009
120-1188-00
T700 (SEE OPT 7 FOR ALTERNATE VERSION)
T43 3 5
120-0384-00
XFMR,TOROID:2 TURNS
80009
120-0384-00
U550
152-0635-00
VOLTAGE MULTR:SILICON,HV MULTIPLIER
80009
152-0635-00
U722A.B 156-0158-00
MICROCIRCUIT,LI:DUAL OPERATIONAL AMPLIFIER 18324
MCI 458V
U762 156-0067-00
MICROCIRCUIT, LI OPERATIONAL AMPLIFIER 02735
85145
U2218
(SEE OPTION SECTION 5 FOR PART NUMBER & VALUE)
U2232
(SEE OPTION SECTION 5 FOR PART NUMBER & VALUE)
U2600
155-0121-00
MICROCIRCUIT,LI:A AND B TRIGGER
80009
155-0121-00
U2690
155-0123-00
MICROCIRCUIT,LI:A AND B SWP/PICKOFF
80009
155-0123-00
U2700 155-0121-00
MICROCIRCUIT,LI:A AND B TRIGGER
80009
155-0121-00
U2740A.B 156-0158-00
MICROCIRCUIT,LI.-DUAL OPERATIONAL AMPLIFIER
18324
MC1458V
U2750 155-0122-00
MICROCIRCUIT,DI:A & B LOGIC
80009
155-0122-00
U2790
155-0123-00
MICROCIRCUIT,LI:A AND B SWP/PICKOFF
80009
155-0123-00
U2900
155-0124-00
MICROCIRCUIT,LI:HORIZONTAL PREAMPL 80009
155-0124-00
U4160
155-0120-00
BO 10100
B044919
MICROCIRCUIT,LI:VERTICAL PREAMPL
80009
155-0120-00
U4160 155-0155-00
B044920
MICROCIRCUIT,LI:VERTICAL PREAMPLIFIER
80009
155-0155-00
VS60
154-0731-00
ELECTRON TUBE:W/ANODE LEAD
80009
154-0731-00
REV G, AUG 1980
8-23
