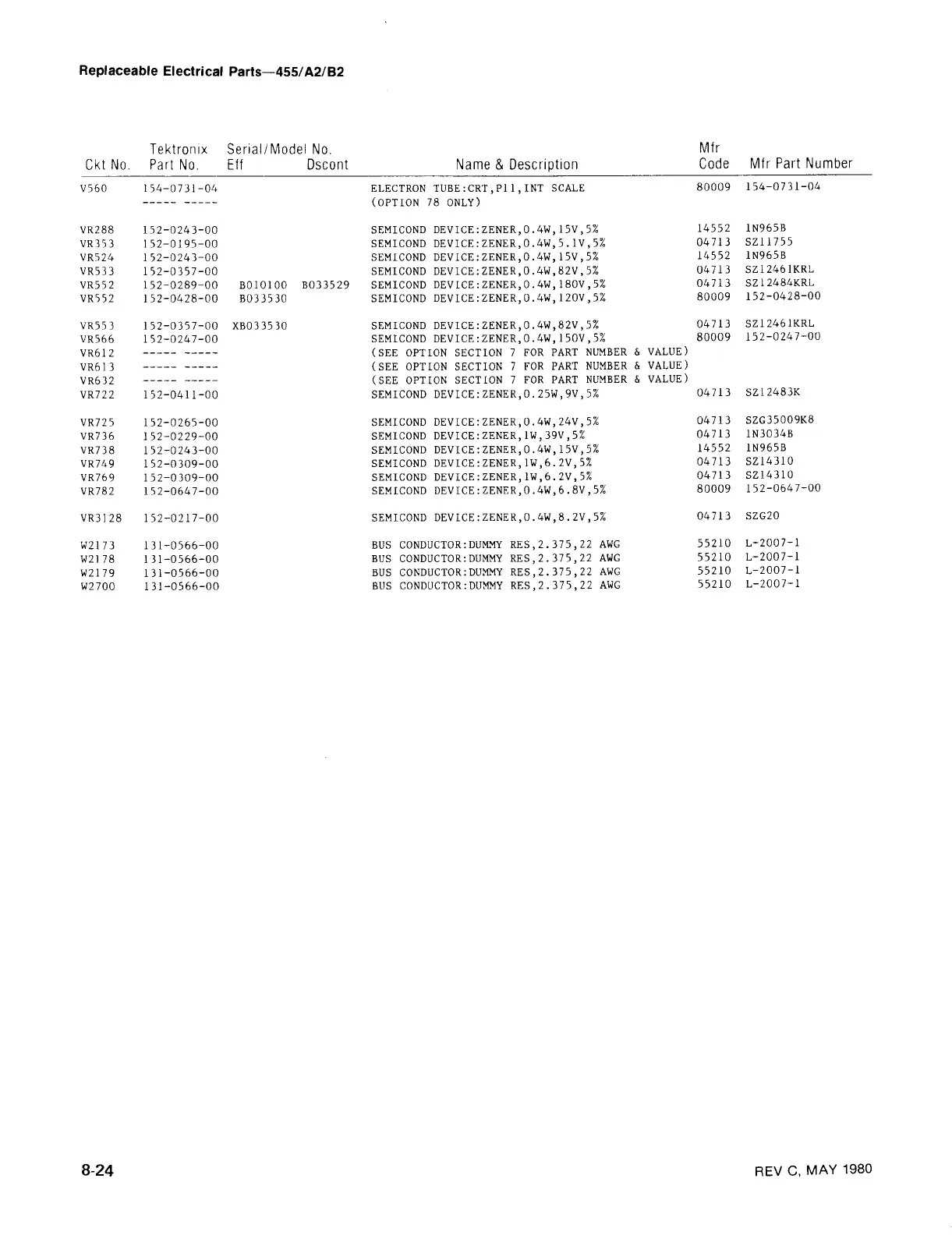

Replaceable Electrical Parts—455/A2/B2
Tektronix Serial/Model No. Mfr
Ckt No. Part No. Eft Dscont Name & Description Code Mfr Part Number
V560 154-0731-04 ELECTRON TUBE:CRT,PI 1,INT SCALE 80009 154-0731-04
--------- (OPTION 78 ONLY)
VR288 152-0243-00 SEMICOND DEVICE:ZENER,0.4W,15V,5% 14552 1N965B
VR353 152-0195-00 SEMICOND DEVICE:ZENER,0.4W,5.1V ,5% 04713 SZ11755
VR524 152-0243-00 SEMICOND DEVICE:ZENER,0.4W,15V,5% 14552 1N965B
VR533 152-0357-00 SEMICOND DEVICE:ZENER,0.4W,82V,5% 04713 SZ12461KRL
VR552 152-0289-00 B010100 B033529 SEMICOND DEVICE:ZENER,0.4W,180V,5% 04713 SZ12484KRL
VR552 152-0428-00 B033530 SEMICOND DEVICE:ZENER,0.4W,120V,5% 80009 152-0428-00
VR553 152-0357-00 XB033530 SEMICOND DEVICE: ZENER, 0.4W, 82V, 5% 04713 SZ12461K.RL
VR566 152-0247-00 SEMICOND DEVICE:ZENER,0.4W,150V,5% 80009 152-0247-00
VR612 ---- ----- (SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
VR613 ---- ---- (SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
VR632 ---- ---- (SEE OPTION SECTION 7 FOR PART NUMBER & VALUE)
VR722 152-0411-00 SEMICOND DEVICE:ZENER,0.25W,9V,5% 04713 SZ12483K
VR725 152-0265-00 SEMICOND DEVICE:ZENER,0.4W,24V,5% 04713 SZG35009K8
VR736 152-0229-00 SEMICOND DEVICE:ZENER,1W,39V,5% 04713 1N3034B
VR738 152-0243-00 SEMICOND DEVICE:ZENER,0.4W,15V,5% 14552 1N965B
VR749 152-0309-00 SEMICOND DEVICE:ZENER,1W,6.2V,5% 04713 SZ14310
VR769 152-0309-00 SEMICOND DEVICE:ZENER,1W,6.2V,5% 04713 SZ14310
VR782 152-0647-00 SEMICOND DEVICE:ZENER,0.4W,6.8V,5% 80009 152-0647-00
VR3128 152-0217-00 SEMICOND DEVICE:ZENER,0.4W,8.2V,5% 04713 SZG20
W2173 131-0566-00 BUS CONDUCTOR:DUMMY RES,2.375,22 AWG 55210 L-2007-1
W2178 131-0566-00 BUS CONDUCTOR:DUMMY RES,2.375,22 AWG 55210 L-2007-1
W2179 131-0566-00 BUS CONDUCTOR:DUMMY RES,2.375,22 AWG 55210 L-2007-1
W2700 131-0566-00 BUS CONDUCTOR:DUMMY RES,2.375,22 AWG 55210 L-2007-1
8-24 REV C, MAY 1980
