Maintenance
Remove instrument from
rack and remove top cover
1. Disconnect any
power cords and signal cables from the instrument.
2. If applicable, remove the instrument from the equipment rack:
WARNING. To p
revent injury when removing the product from the rack, do not
forcefully and abruptly pull the product from the rack. Pull with a consistent, even
motion, with the minimum force required to move the instrument.
a. Loosen the knob screws, if present, that attach the front of the instrument
to the rack.
b. Gently pull the instrument toward you until you can reach the levers at
therearoftheinstrument.
c. Tilt both lever handles upward simultaneously to allow them to c lear the
stops.
d. Pull the instrument past the stops and out of the rack.

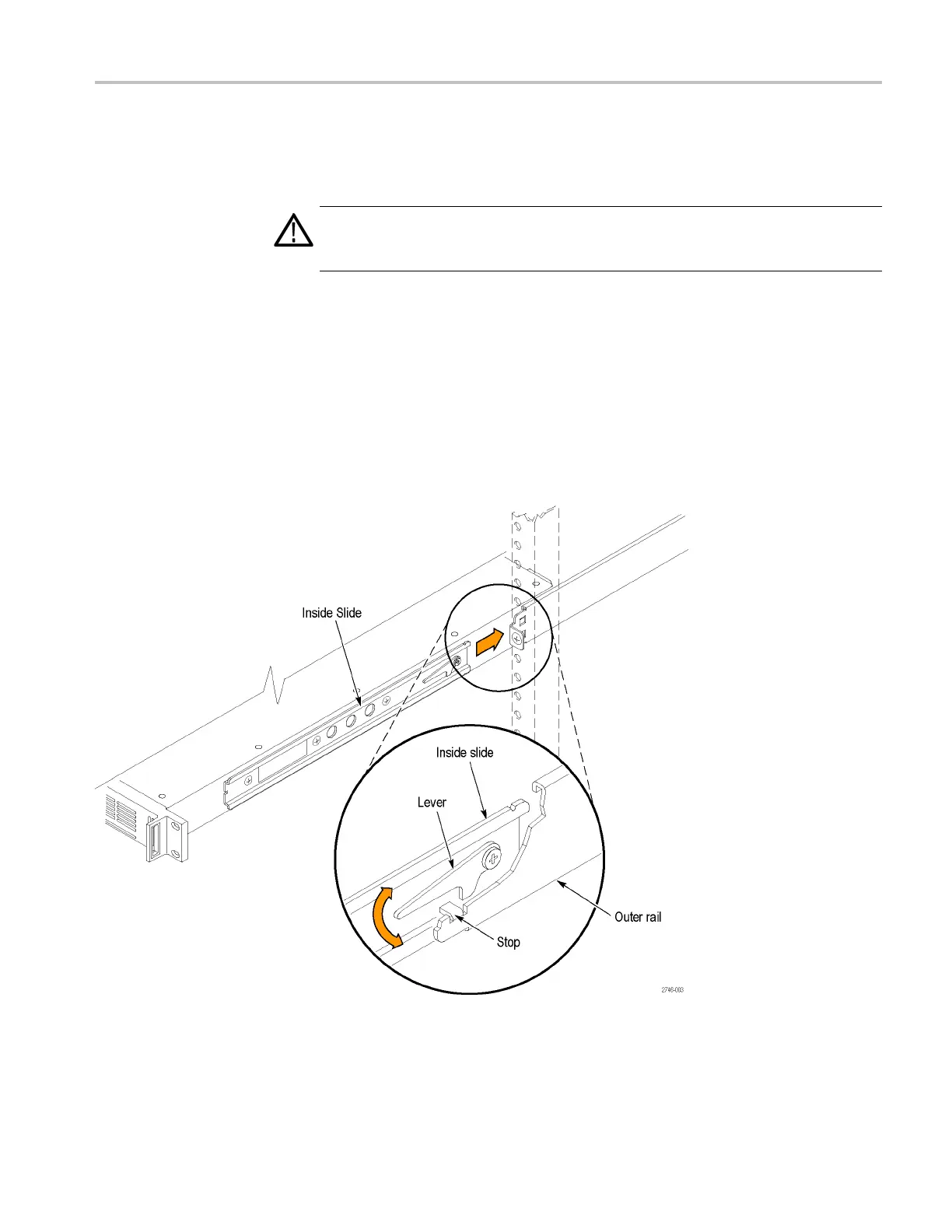

Figure 3-1: Installing or removing the instrument into or from the rack
ECO8000 Series Service Manual 3–7
