Tektronix ECO8000 Series - Figure 3-4: Removing the Cable Tie; Figure 3-5: Removing the Multi-Wire Channel Cables

106 pages

To Next Page

To Previous Page

Maintenance

Remove the Channel

modules

1. Clip or cut the c

able-tie that is securing the two power cables from the

rear-panel line ﬁlters.

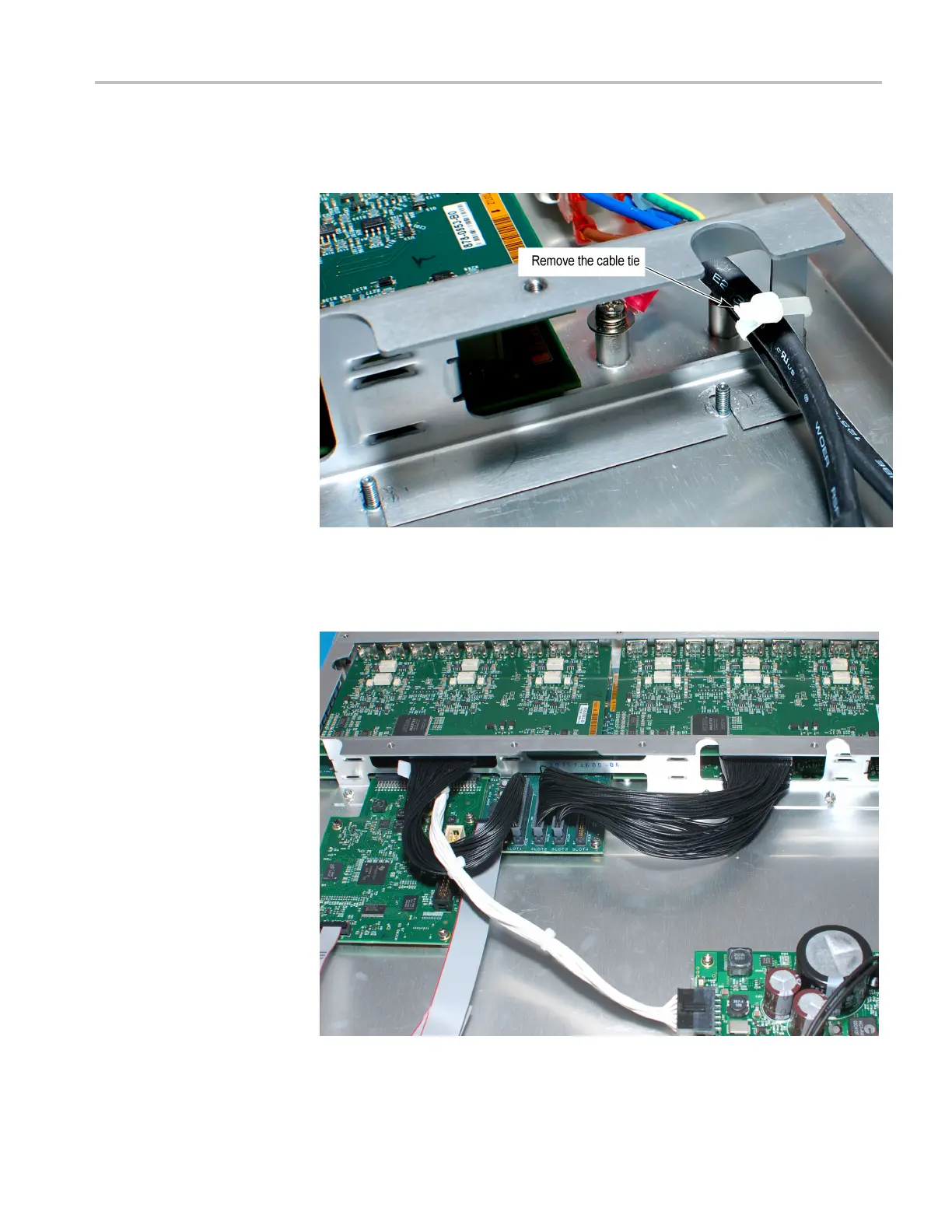

Figure 3-4: Removing the cable tie

2. Disconnect the black multi-wire cables between the Main board and any

channel modules.

Figure 3-5: R emoving the multi-wire channel cables

ECO8000 Series Service Manual 3–11
