Tektronix ECO8000 Series Service Manual

Maintenance
Reassembly. As
semble in the reverse order of the disassembly procedure. The
following areas require attention while reassembling:
Board shield:
Do not forget to install the shield u nder the Combiner board.
Cables from AC power filter(s): Connect the AC filter cable 1 to J10.
Connect the
AC filter cable 2 to J20. (See Figure 3-3.)
Install light pipes: Install the light pipe ends in the Combiner board. Use
the followi
ng illustrations to determine where to install each light pipe. Use
needle nose pliers to hold the light pipe near the end and push it firmly into
the connector on the board. Route the light pipes under the tabs located on
the side of the power supply bays.

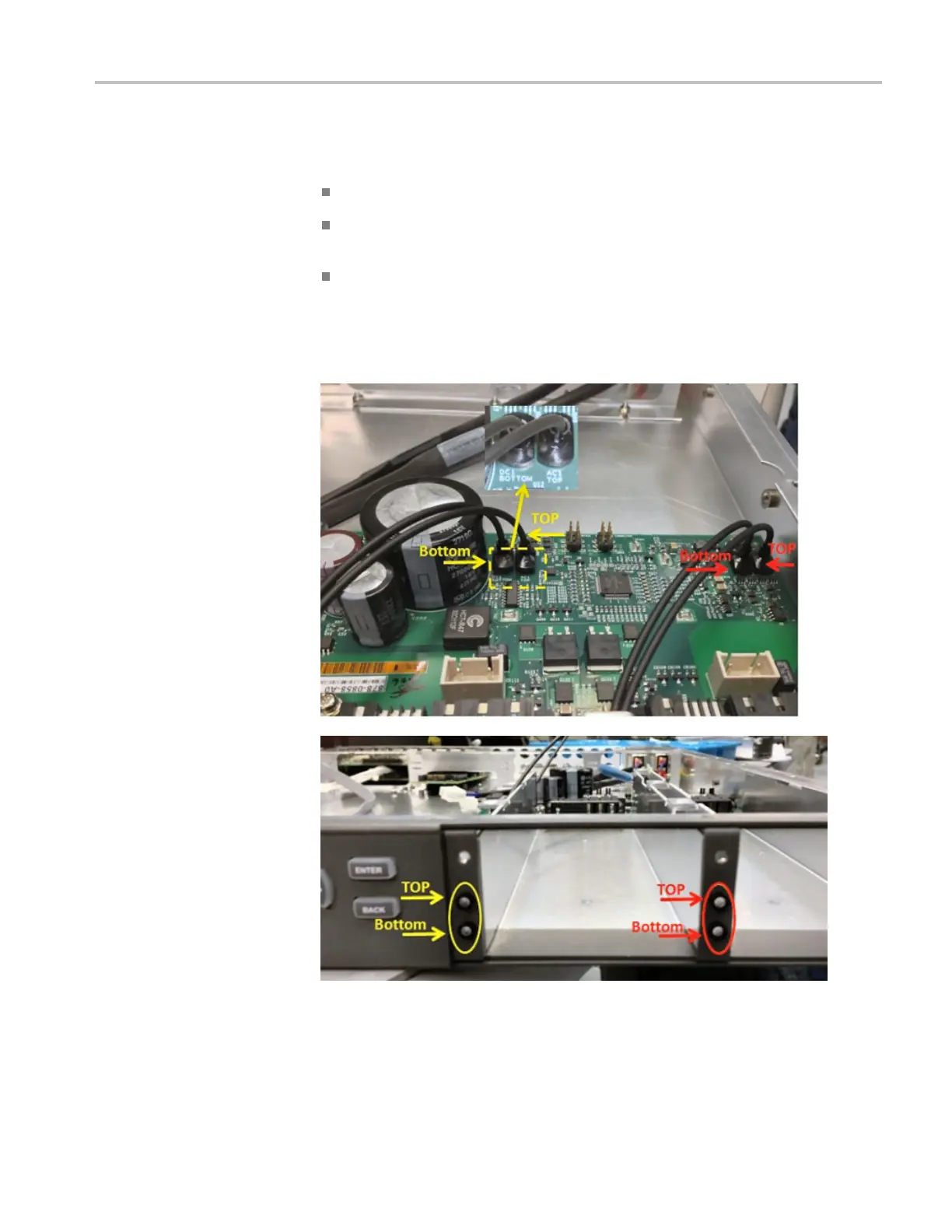

Figure 3-15: Light pipe connections
ECO8000 Series Service Manual 3–21
