Maintenance

3. Move the instru

ment to an appropriate antista tic work area. Wear a correctly

grounded antistatic wrist strap when disassembling or assembling the

instrument.

4. Use the screwdriver handle with a P2 driver bit to remove the instrument top

cover (reassembly torque: 4.0 in/lb.)

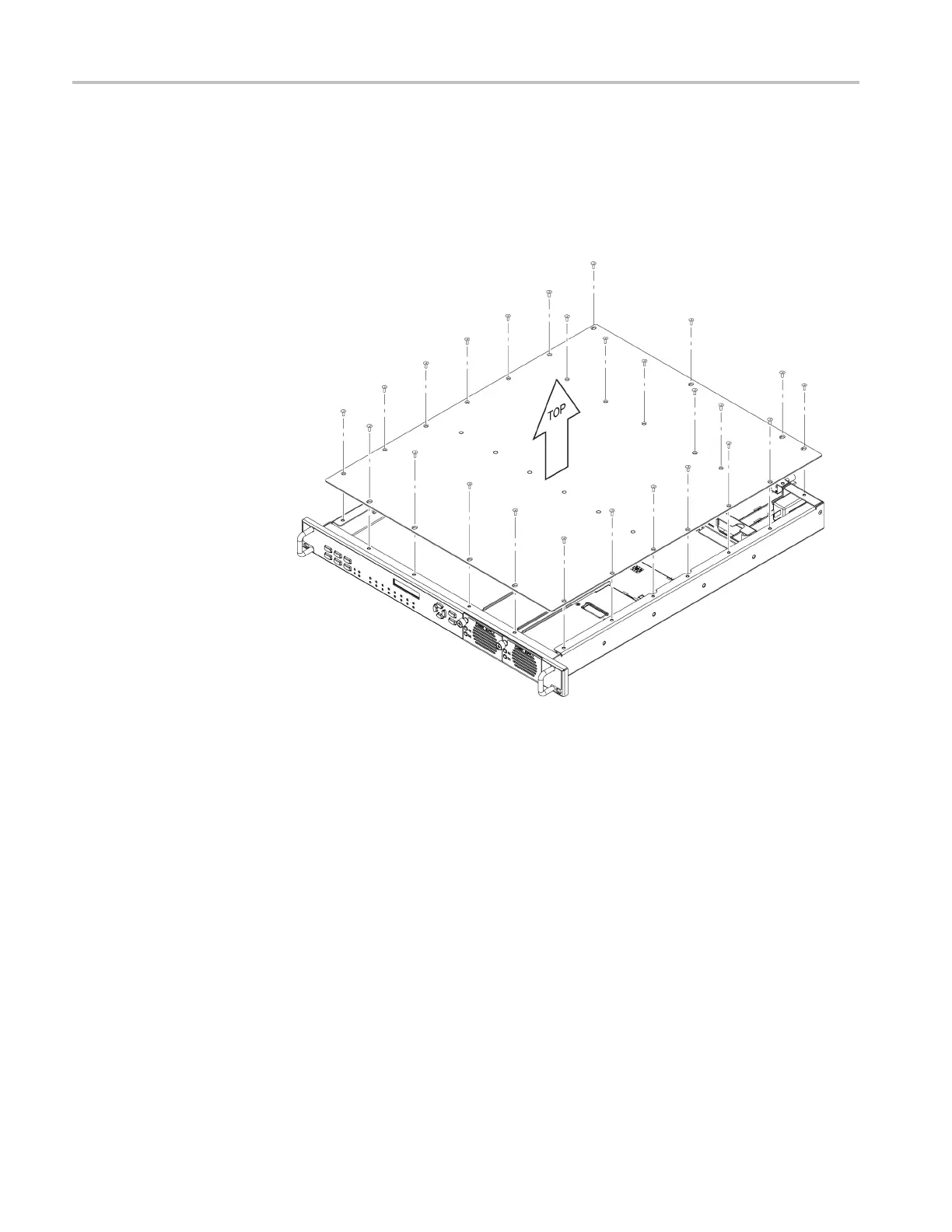

Figure 3 -2: Removing the top cover

3–8 ECO8000 Series Service Manual
