Maintenance

Reassembly. Re

assemble in the reverse order of the disassembly procedure. The

following areas require attention while reassembling:

Installing th

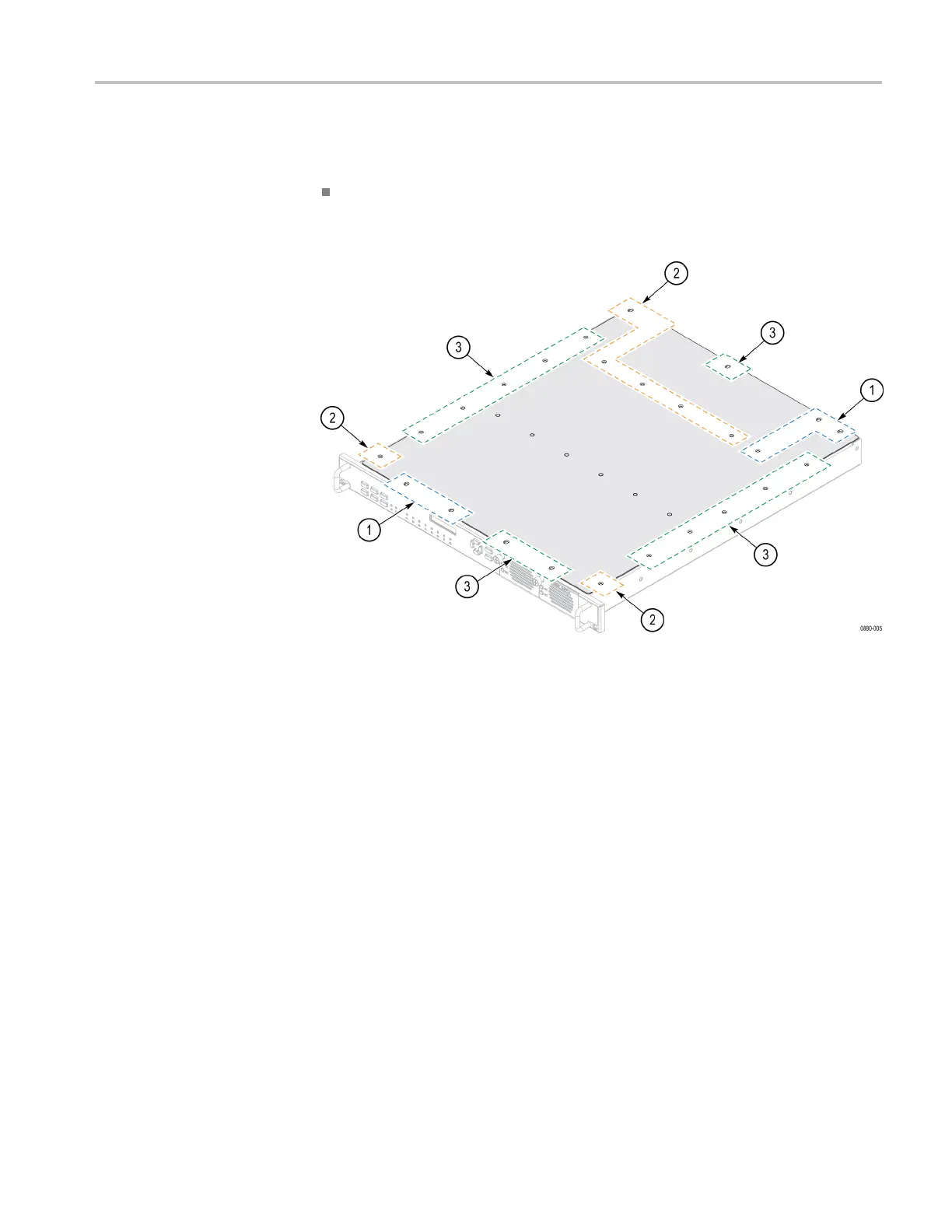

e top cover: Install the top cover screws in the following order:

install group one screws, then group two screws, then group three screws. Do

not tighten the screws until all are installed. Torque: 4.0 in/lb.

ECO8000 Series Service Manual 3–9
