106 Phaser 740 and 750 Color Printers
Paper feed/fuser gear train
1. Remove all consumables and vacuum the printer.
2. Turn the printer on its right side.
3. Remove the bottom chassis pan.
4. Remove the frame cross member.
5. Replace the desired gears.

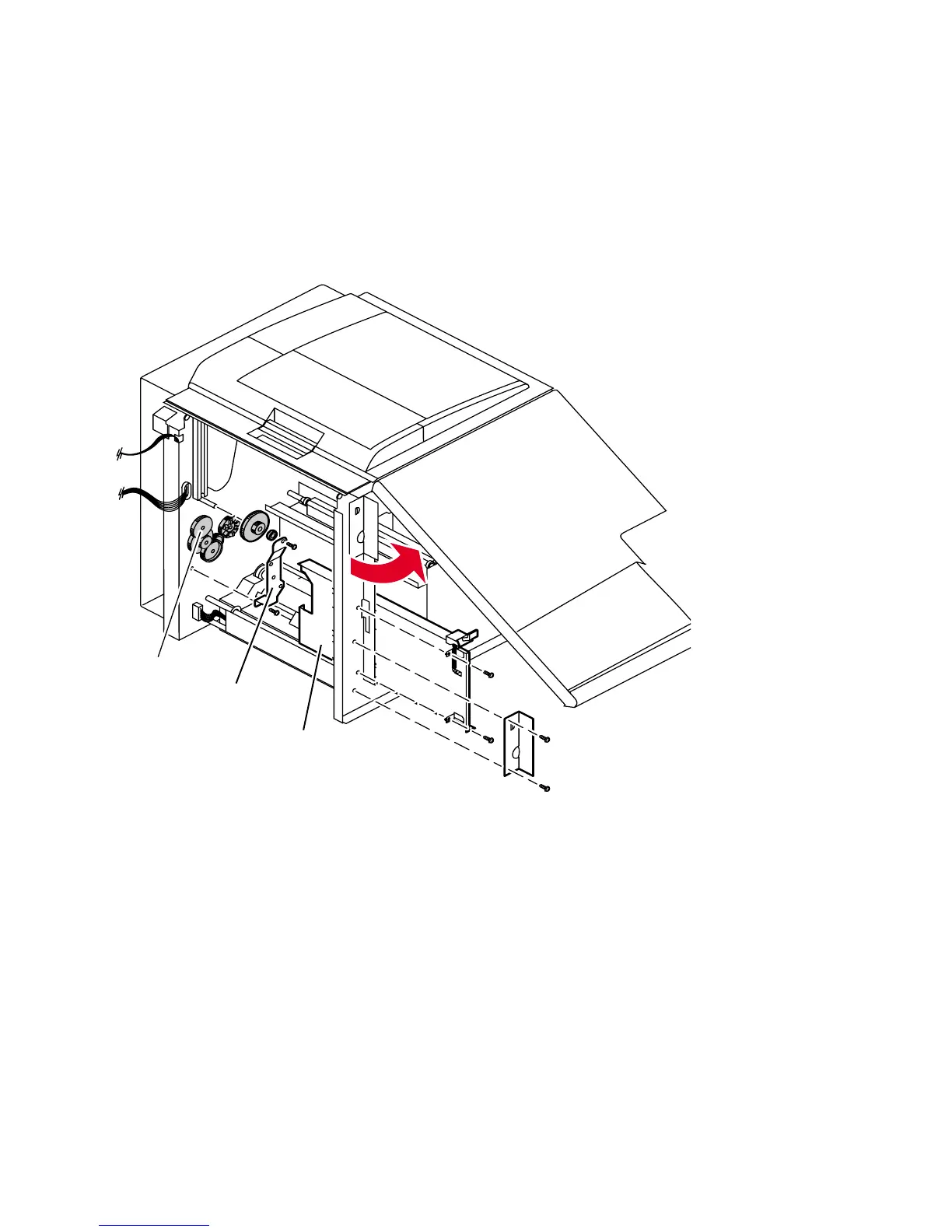

Removing the gear train
Gear train
Gear train
retainer
Frame cross
member
740-7-18
