132 Phaser 740 and 750 Color Printers
Phaser 750 printer test prints

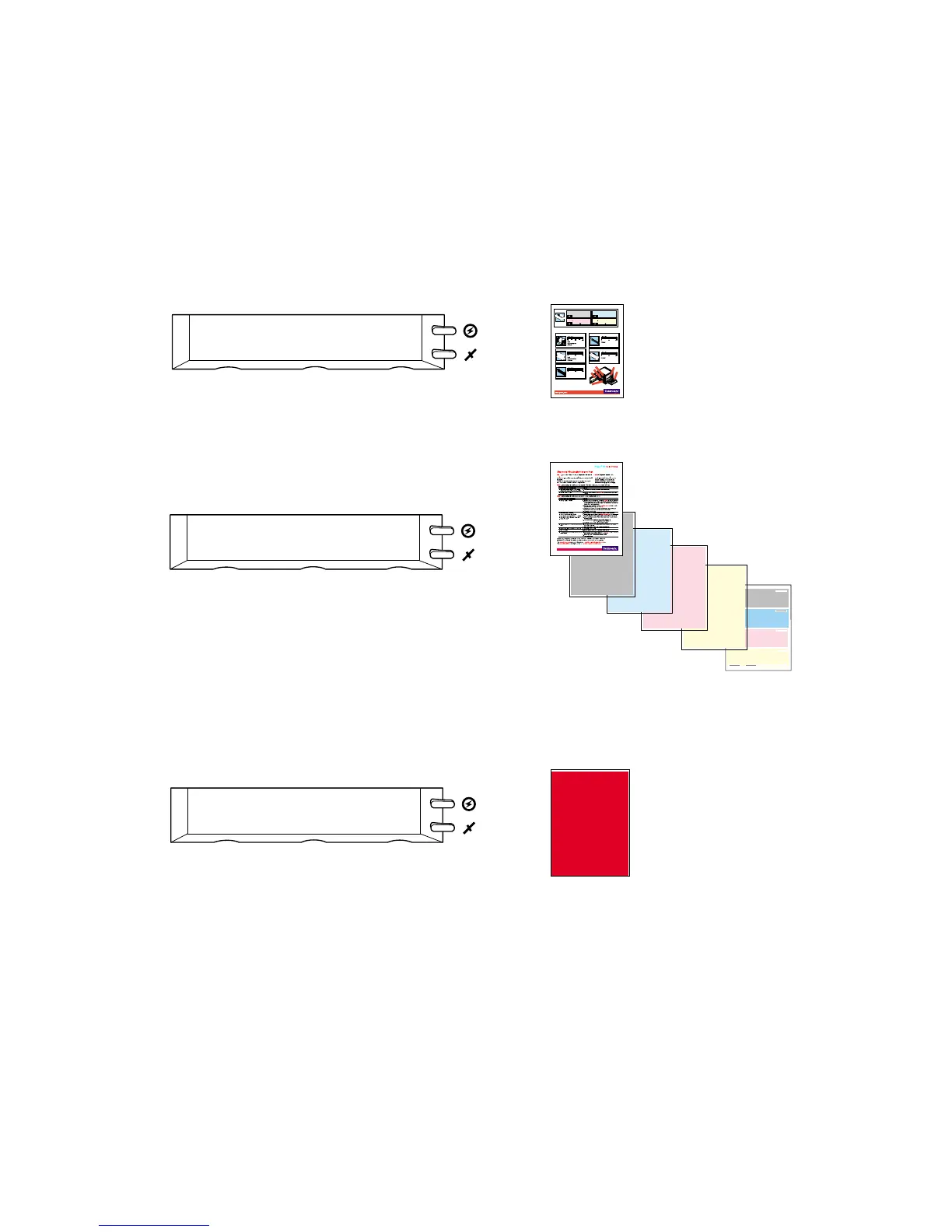

The Supplies Print consists of four 25% tint primary color bands and a “gas gauge” for
each consumable. Diagnostic Test Pages prints out four pages of 25% tint primary
color fills, one page of all for colors at 25% fill, and a page describing how to interpret
the prints. The Solid Fill Test Page prints a solid-fill red print.
3102-45
Power
Error
Diagnostic Test Pages
<--- ---> Print
=
Black
Cyan
Magenta
Yellow
Consumables Print
Power
Error
Solid Fill Test Page
<--- ---> Print
=
Black
Cyan
Magenta
Yellow
CMYK
Power
Error
Supplies Page
<--- ---> Print
Press the Help button.
From the Help Guide, scroll to the Print Quality menu item
Press Menu and scroll to the Help pages
Press Menu and scroll to Supplies Page . Press Print
=
Phaser 750
Toner Cartridges
}
Toner Door
Fuser
& Fuser Roll
Front Panel Display
Imaging Unit
& Main Charge Grid
Front Door
Toner
Imaging Unit
Main Charge Grid
Fuser Roll
Transfer Kit
(located in paper feeder)
Fuser
Reorder: 016-1662-00
110V Reorder: 016-1660-00
Reorder: 016-1664-00
Reorder: 016-1665-00
Reorder: 016-1663-00
Black
Pages Remaining: >500 @ 5% coverage
Standard Reorder: 016-1807-00
Cyan
Hi-Capacity Reorder: 016-1803-00
220V Reorder: 016-1661-00
HEX XXX
HEX XXX
HEX XXX
HEX XXX
HEX XXX
Pages Remaining: >500 @ 5% coverage
Standard Reorder: 016-1804-00
Hi-Capacity Reorder: 016-1800-00
Magenta
Standard Reorder: 016-1805-00
Standard Reorder: 016-1806-00
®
Press the Help button.
From the Help Guide, scroll to the Print Quality menu item
Press Menu and scroll to the Help pages
Press Menu and scroll to Solid fill Test Page . Press Print
Press the Help button.
From the Help Guide, scroll to the Print Quality menu item
Press Menu and scroll to the Help pages
Press Menu and scroll to
Diagnostic Test Page . Press Print
