Phaser 740 and 750 Color Printers
Table 1 FRU parts list of the printer cabinet
Fig 1
parts
Part
number
Serial number
Effective Discont’d
Qty Name and description
1 118-9893-00
116-0852-00
1
1
Front door with hinges (Phaser 740)
Front door with hinges (Phaser 750)
2 118-9892-00 1 Upper front cover (operation panel)
w/display board
3 118-9537-00 1 Right side cover rear
4 118-9208-00 1 Right side cover front
5 118-9894-00 1 Right side cover lower
6 118-9541-00 1 Bottom front cover
7 116-0024-00 1 Output tray (standard)
118-9996-00 1 Lower feeder front cover
118-9622-01 1 Lower feeder left cover
118-9604-00 1 Lower feeder right cover
118-9606-00 1 Lower feeder rear cover

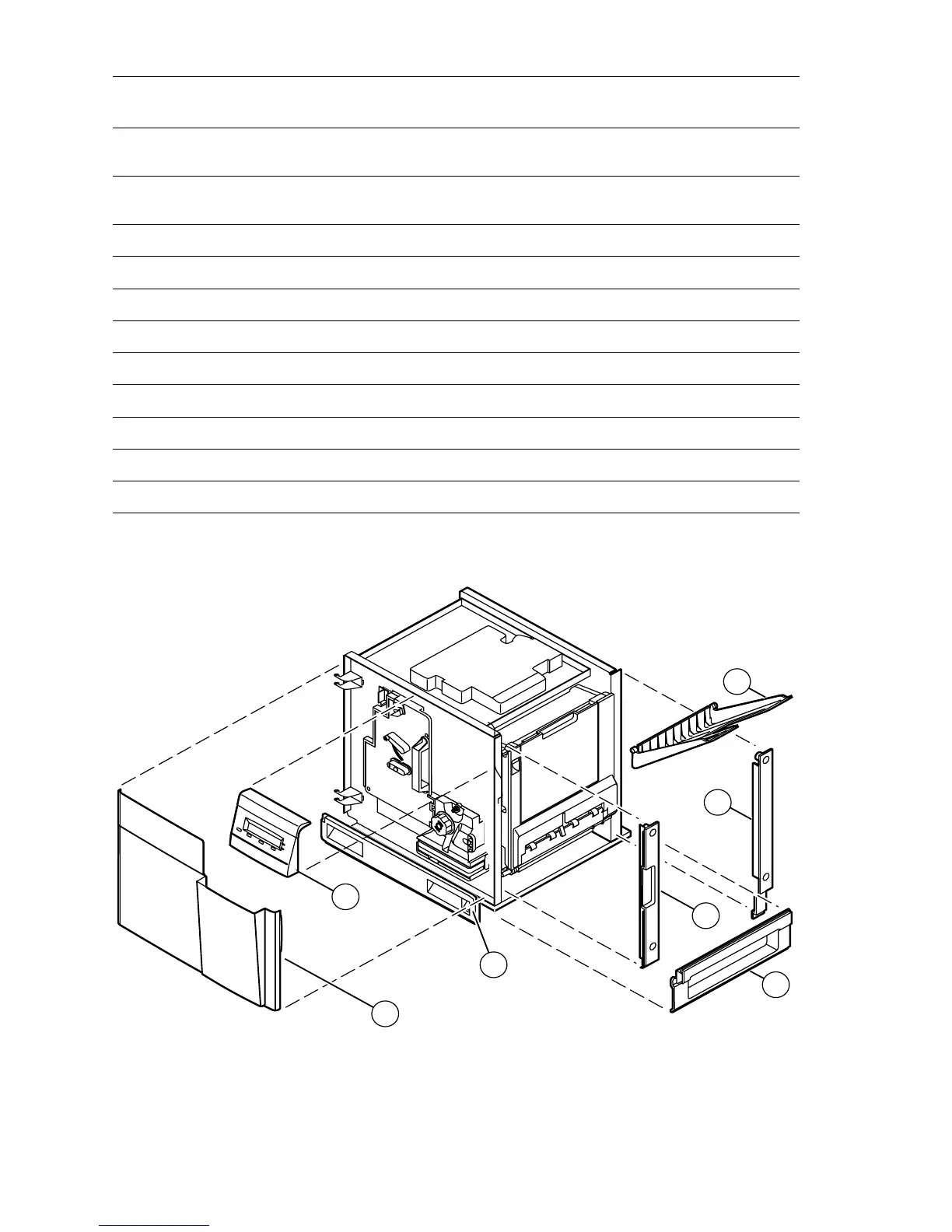

Figure 1 Cabinet FRUs
3102-26
1
4
2
6
5
4
3
7
