Tektronix Phaser 740 - Print Engine Assemblies; Print Engine Major Components

10 Phaser 740 and 750 Color Printers
Print engine assemblies

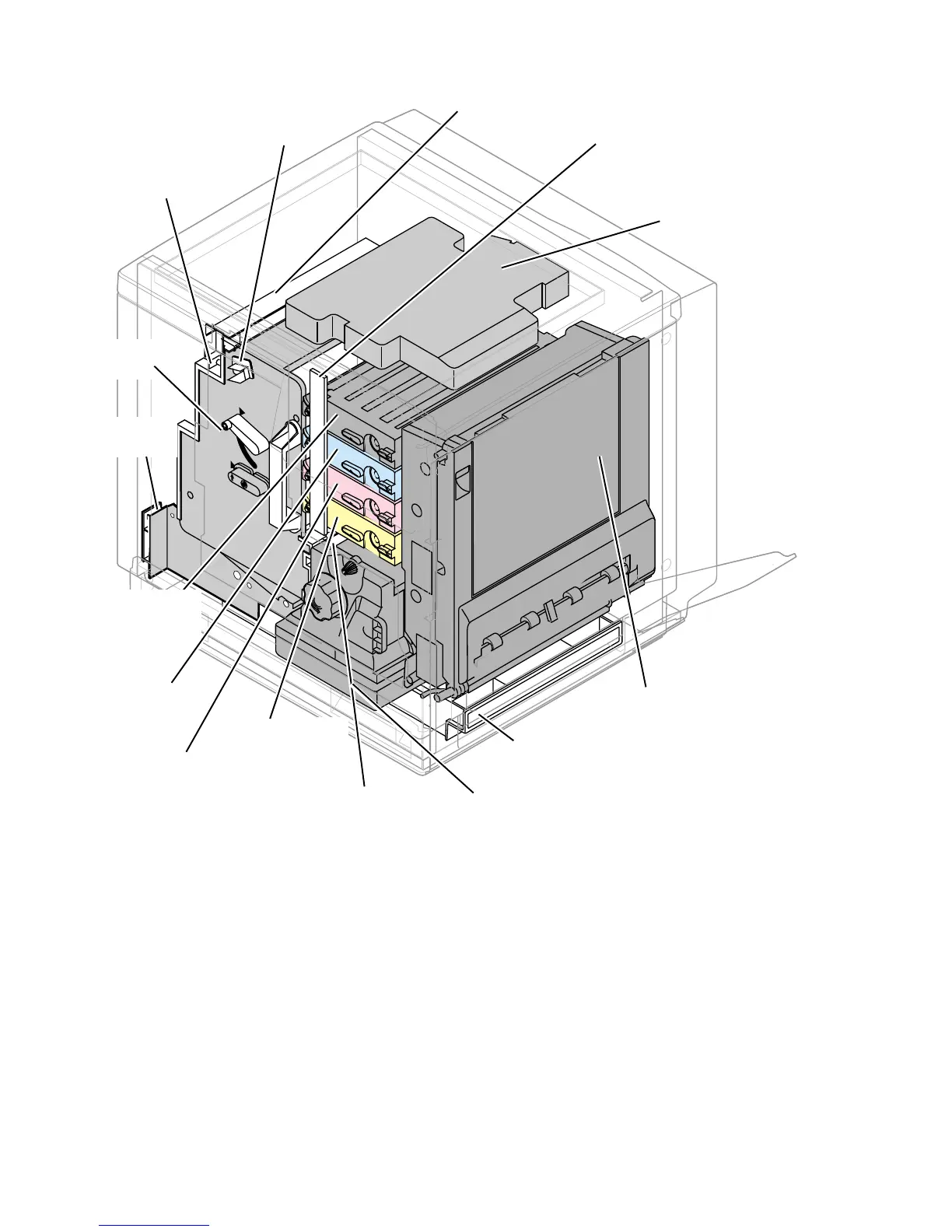

Print engine major components
A
4
A4
3102-0
2
Laser scanner
Ozone filter
Pre-exposure
lamp
Imaging
unit
Paper
feeder
Cyan toner
cartridge
Magenta
toner
cartridge
Yellow toner
cartridge
Pre-transfer lamp
Fuser
Toner level
sensor board
Paper tray
Toner cartridge
selector/paper
exit unit
(right door)
Main charger
corona unit
Black
toner
cartridge
