Tektronix Phaser 740 User Manual

Service Guide
131
Test Prints
This appendix illustrates the test prints produced by the printer. The topic “Printing
and print quality problems” on page 54 discusses solutions to problems revealed in
the test prints.

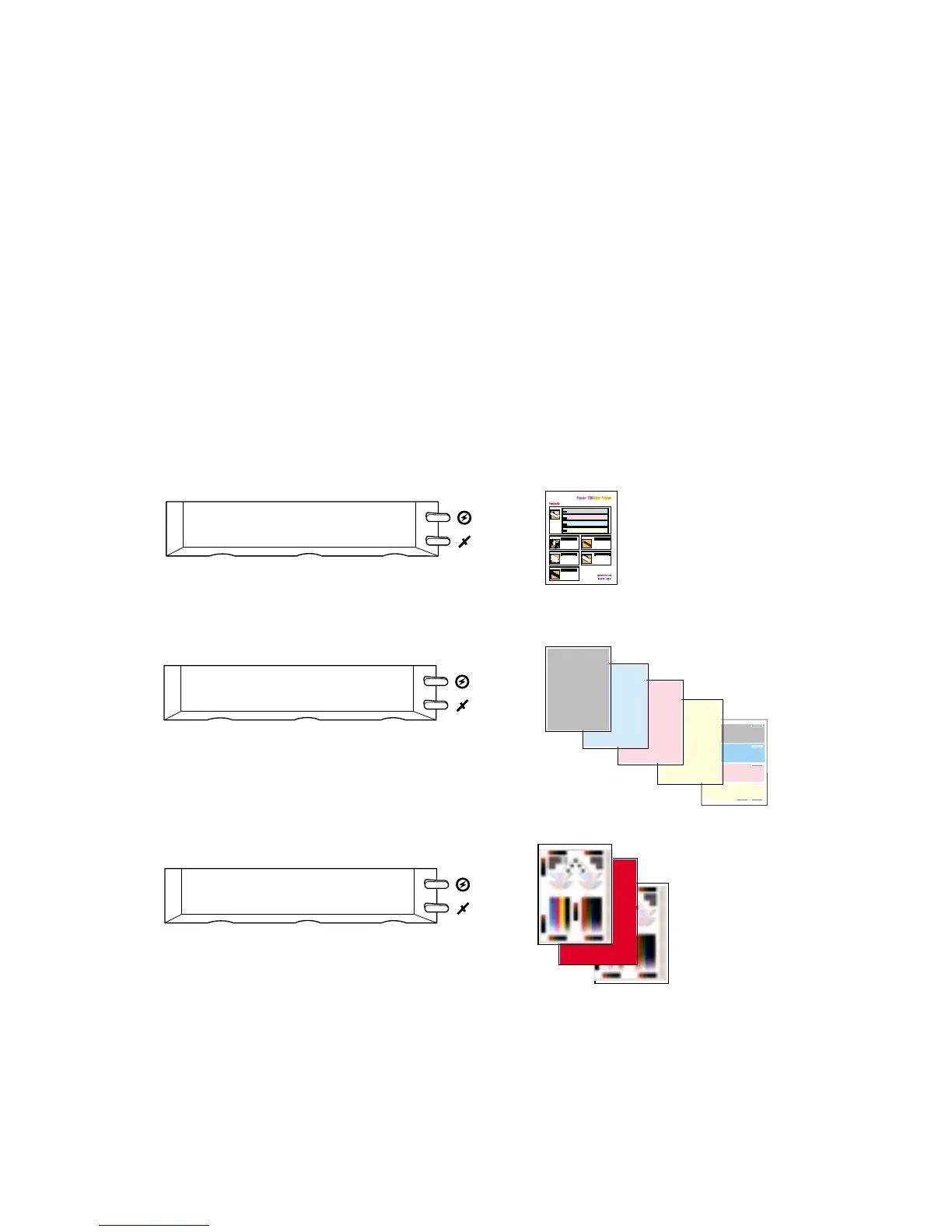

Phaser 740 printer test prints
The Consumables Print consists of four 25% tint primary color bands and “gas
gauges” for each consumable. Service Print 1 prints out four 25% tint full page fills,
each page one primary color. Service Print 2 produces a 1200 dpi test print, a solid red
fill prints and a 600 dpi test print.
3102-36
Power
Error
Service Print 1
<--- ---> Print
From the Help Pages menu in the front panel, select Service Print 1
=
Black
Cyan
Magenta
Yellow
Consumables Print
Power
Error
Service Print 2
<--- ---> Print
From the Help Pages menu in the front panel, select Service Print 2
=
Black
Cyan
Magenta
Yellow
CMYK
Power
Error
Consumables page
<--- ---> Print
From the Help Pages menu in the front panel, select Consumables Page
=
Toner
Imaging Unit
Main Charge Grid
Fuser Roll
Transfer Kit
Fuser
Black
Page Remaining: >500 @ 5% coverage
Your average coverage/page: TBD%
Page Remaining: >500 @ 5% coverage
Your average coverage/page: TBD%
Page Remaining: >500 @ 5% coverage
Your average coverage/page: TBD%
Page Remaining: >500 @ 5% coverage
Your average coverage/page: TBD%
Magenta
Cyan
Yellow
0% 50% 100%
%
Life Remaining
Count (Pages)
Serial #
Avg. Toner Coverage/Color
Date Installed
0% 50% 100%
%
Life Remaining
Count (Pages)
Serial #
Avg. Toner Coverage/Color
Date Installed
0% 50% 100%
%
Life Remaining
Count (Pages)
0% 50% 100%
%
Life Remaining
Count (Pages)
0% 50% 100%
%
Life Remaining
Count (images)
OK
OK
OK
OK
Phaser 740
