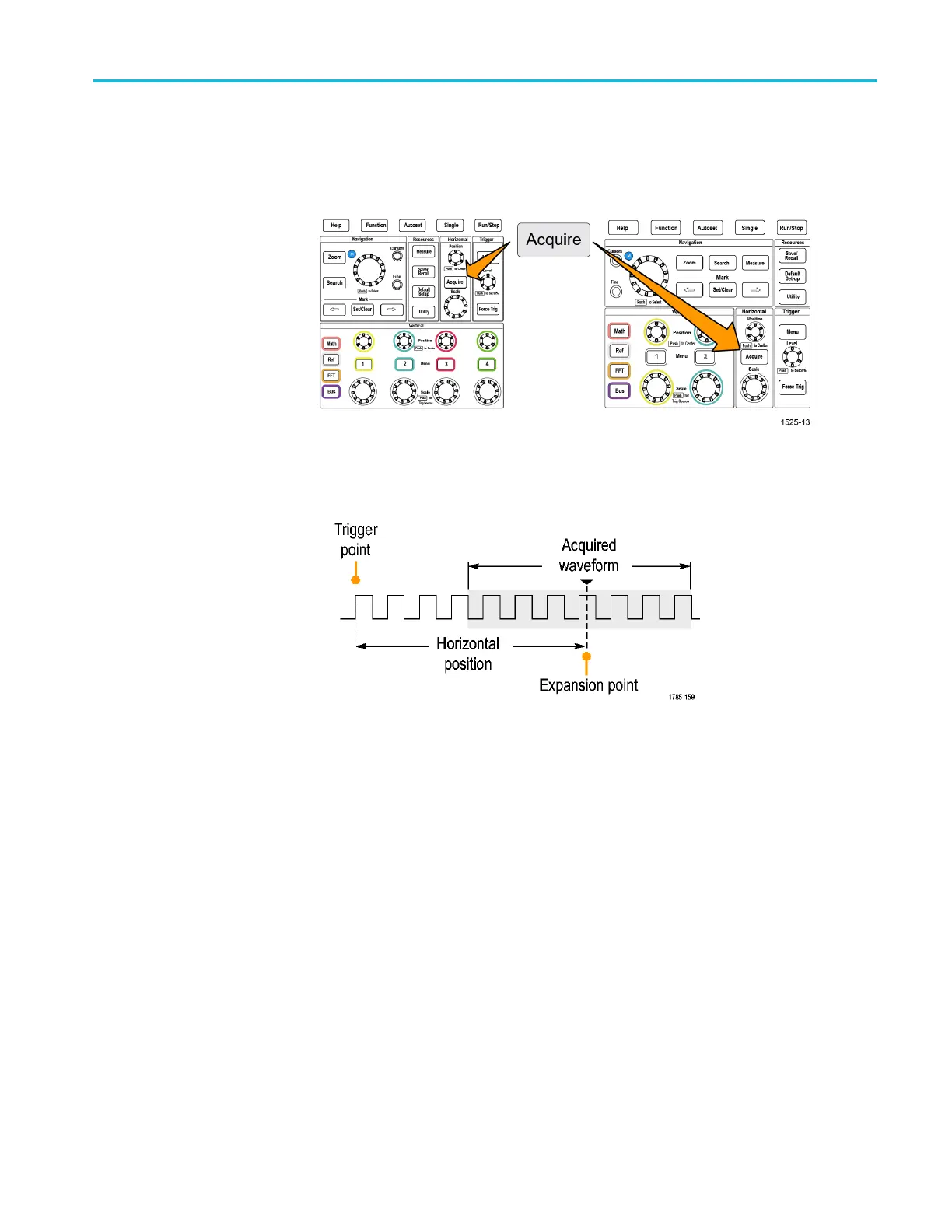

Setting the acquisition trigger delay time

1. Push Acquire.

2. Push the Delay side-menu button to toggle between On and Off. When set to

Off, the expansion point is tied to the trigger point so that horizontal scale

changes are centered around the trigger point.

Acquisition setup

TBS2000B Series Oscilloscopes User Manual 75
