c. Push the Setup side-menu button and use the Multipurpose knob to
select the setup memory location (1-10).
d. Push the Recall side-menu button. The oscilloscope changes its settings
to those that are in the specified setup memory.
6. To recall (load) setup data from a file on the USB drive:
a. Push the Recall From side-menu button.
b. Select and click USB File (*.SET).
c. Push the Select File side-menu button.
d. Highlight the setup file (*.SET) to load.
e. Push the Multipurpose knob or the Recall side-menu button. The
oscilloscope loads and implements the settings.
Recalling waveform data
Use this procedure to recall (load) waveform data from an external .ISF file to
load into a reference memory location and display on the oscilloscope. The
oscilloscope can only load .ISF waveform data files.
1. Install a USB drive that contains the .ISF waveform data file.

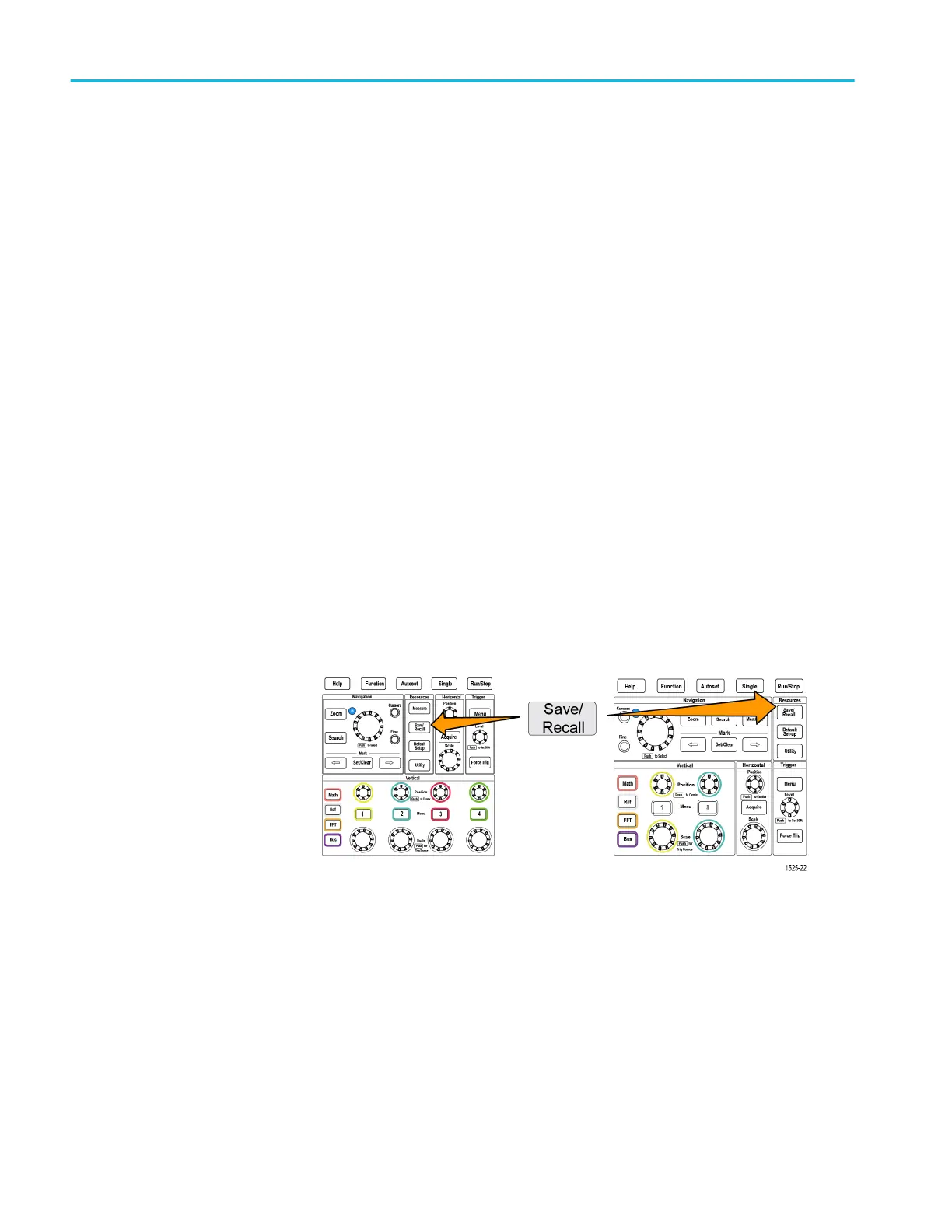

2. Push the Save/Recall front-panel button.
3. Push the Action side-menu button.
4. Use the Multipurpose knob to select and click Recall Waveform.
5. Push the To side-menu button.
6. Select and click Ref1 or Ref2.
7. Push Select File side-menu button to open the File Utility pane.
8. Use the Multipurpose knob to select the waveform file (*.ISF).
Recalling data
136 TBS2000B Series Oscilloscopes User Manual
