How to enable / disable measurement in the oscilloscope
Use this procedure to enable / disable waveform measurements manually.
NOTE.
■
To disable or enable the measurement function requires a password. The
default factory password is 000000.
■
An instructor in a TekSmartlab
™
equipped education lab can enable or
disable Measurement from the TekSmartLab application, for all the
connected oscilloscopes.

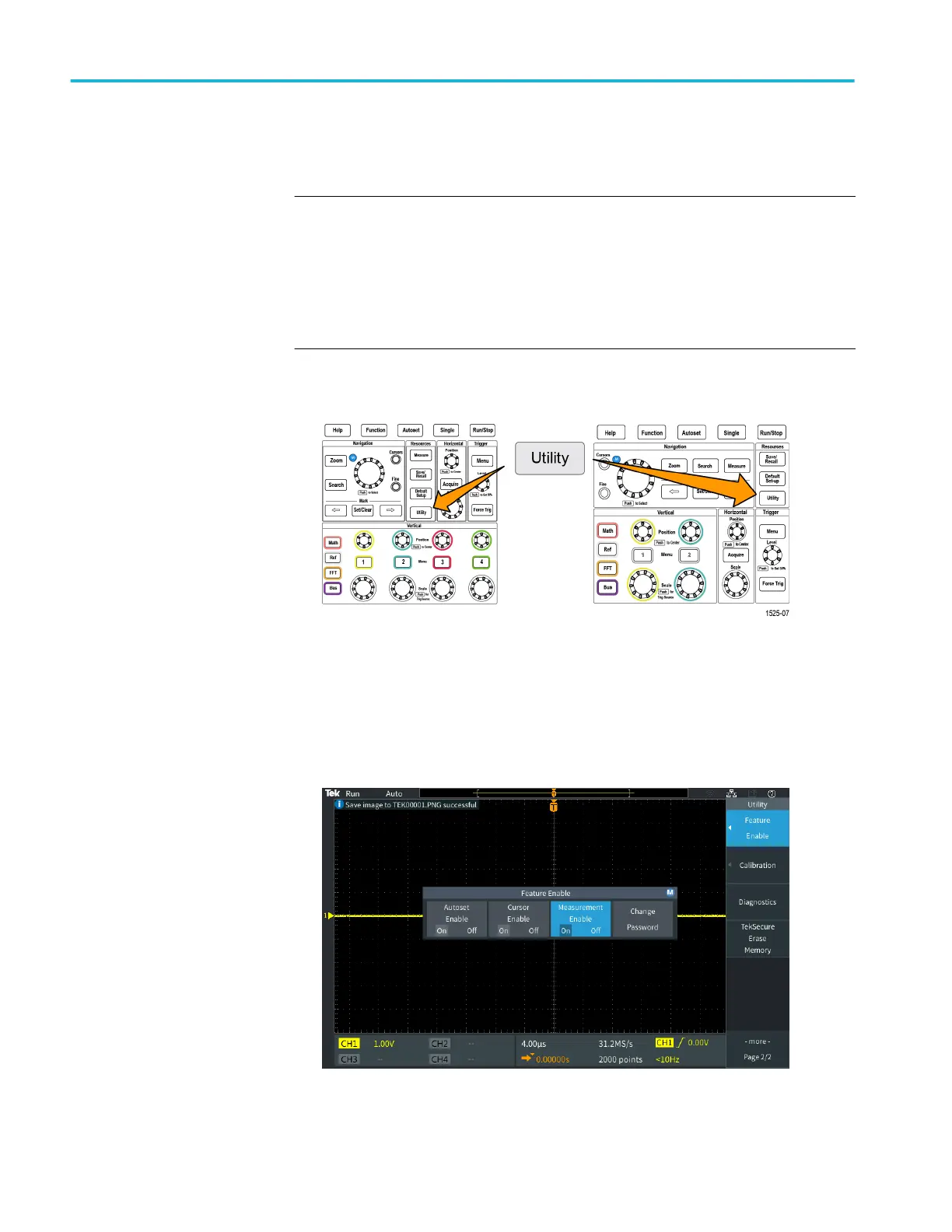

1. Push Utility.
2. Push -More- Page 1/2 side-menu button.
3. Push Feature Enable side-menu button.
4. Use the Multipurpose knob to select and click Measurement Enable. The
oscilloscope opens the Feature Enable password entry screen.
5. Use the Multipurpose knob and side-menu buttons to enter the password
that lets you disable Measurement.
Analyzing a waveform
100 TBS2000B Series Oscilloscopes User Manual
