Push the Position knob to return the trigger point to the center of the screen
(center vertical graticule).
NOTE. You can push the Fine button (Navigation controls) to enable smaller
adjustments with the position knob.
The Acquire button opens the menu that you use to set the acquisition mode and
adjust the record length.
The Trigger controls
The Trigger controls set when the oscilloscope starts acquiring signal data to
create a waveform record. See Trigger concepts on page 40.See Trigger setup on
page 59.

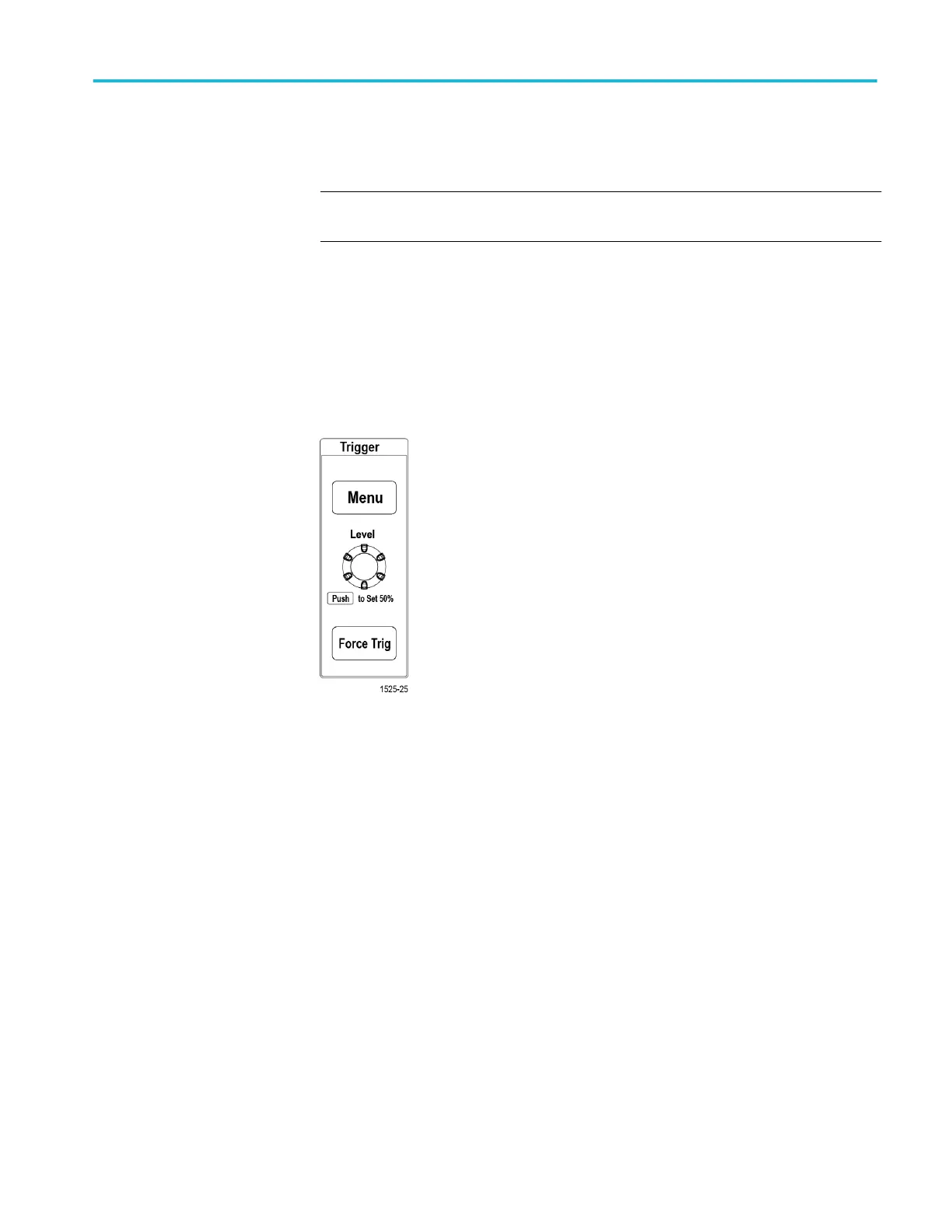

The Trigger Menu button opens the side menu for trigger settings.
The Trigger Level knob adjusts the trigger level. Trigger level is shown with a
horizontal line when using this control.
Push the Trigger Level knob to set the trigger level to 50% (the vertical midpoint
of the waveform).
The Force Trig button forces an immediate trigger event.
