Installation
Installation
Connecting to the Host Instrument
CAUTION. The probe head is a precision assembly. Do not drop the pro be or subject it to physical shock, strain, or sudden changes
in ambient conditions. Do n ot insert conductors larger than 3.8 mm diameter into the probe jaw. Damage to the probe may result.

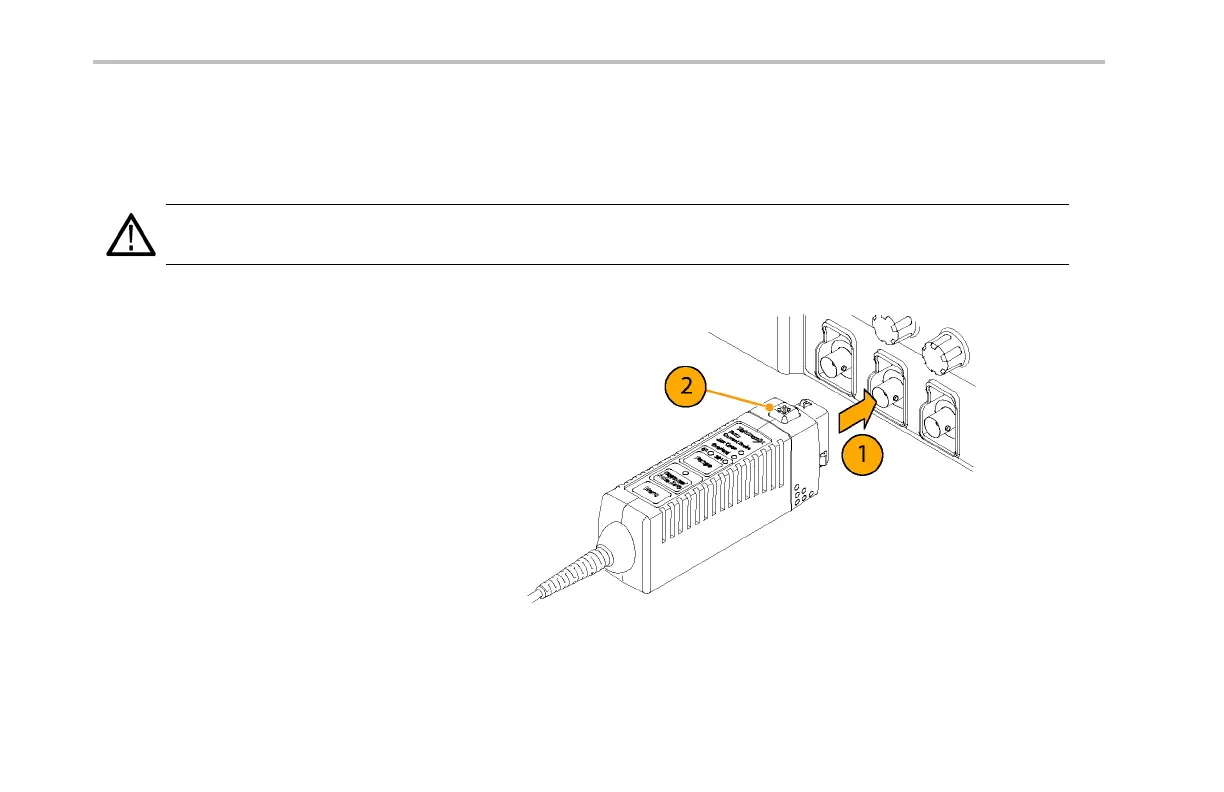

1. Slide the probe into the TekVPI receptacle.
The probe sn aps in when fully engaged.
2. To disconnect, press the latch button and
pull the probe away from the instrume nt.
When the probe is connected, the host
instrument reads information from the probe
and identifies the device. All of the probe LEDs
light briefly for a quick visual check.
2 TCP0030 Current Pro be Instruction Ma nual
