Functional Check
Functional Check
The following procedure checks that your probe is functioning properly. To verify that your probe meets the warranted specifications,
refer to the Performance Verification procedures. (See page 50.)
CAUTION. The pro be jaw opening accommodates insulated conductors with a diameter of 3.8 mm or less. Do not insert
conductors larger than 3.8 mm diameter into the probe jaw. Damage to the probe may result.

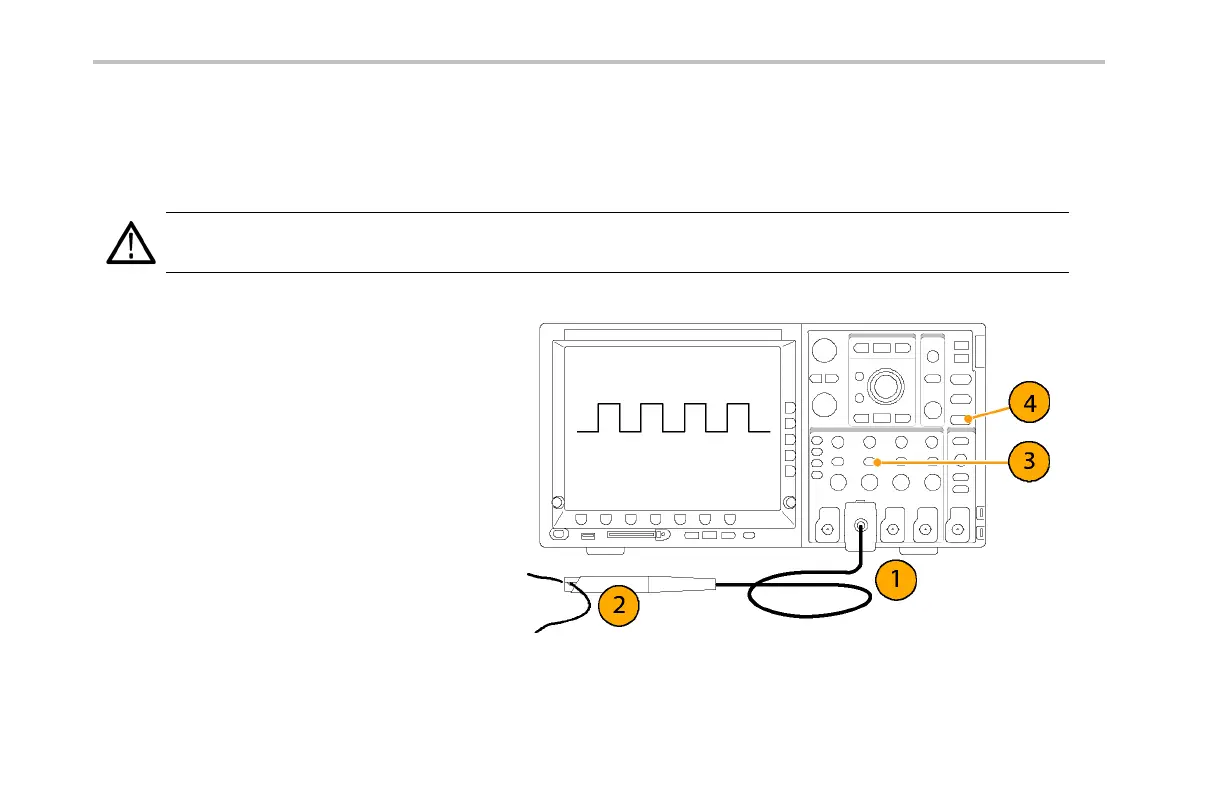

To check that your pro be functions correctly,
do the following:
1. Connect the probe to any channel of the
oscilloscope.
2. Press the Deg auss/AutoZero button.
3. Clamp the probe to your circuit.
4. Set the oscilloscope to display the probe
channel.
5. Adjust the oscillos cope or use the Autoset
function to display a stable waveform.
When you see a stable waveform, your
probe is functioning correctly.
10 TCP0030 Current Probe Instruction Manual
