Accessories and Options
Optional Accessories
This section lists the optional accessories that you can purchase to help you with your probing tasks.

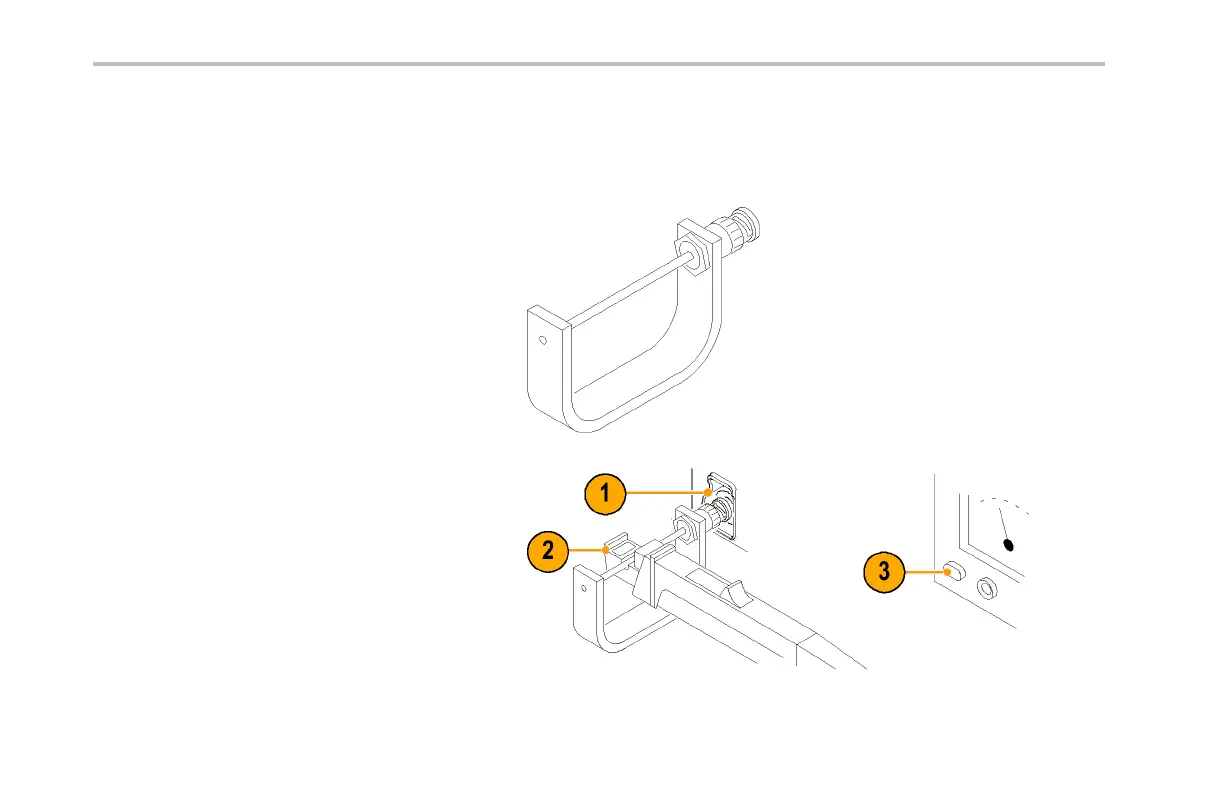

Current Loop
Use the 1-turn, 50 Ω current loop for the
performance verification procedures. The
BNC con nector allows for easy connections to
current sources.
Reorder Tektronix part number: 015-0601-50
1. Connect the current loop to the current
supply.
2. Connect the probe to the loop.
3. Power on the current supply.
4. Follow the procedure for the specifictask
that you are performing (for example,
Performance Verification or Adjustments).
22 TCP0030 Current Probe Instruction Manual
