Maintenance
Probe Head Disassembly

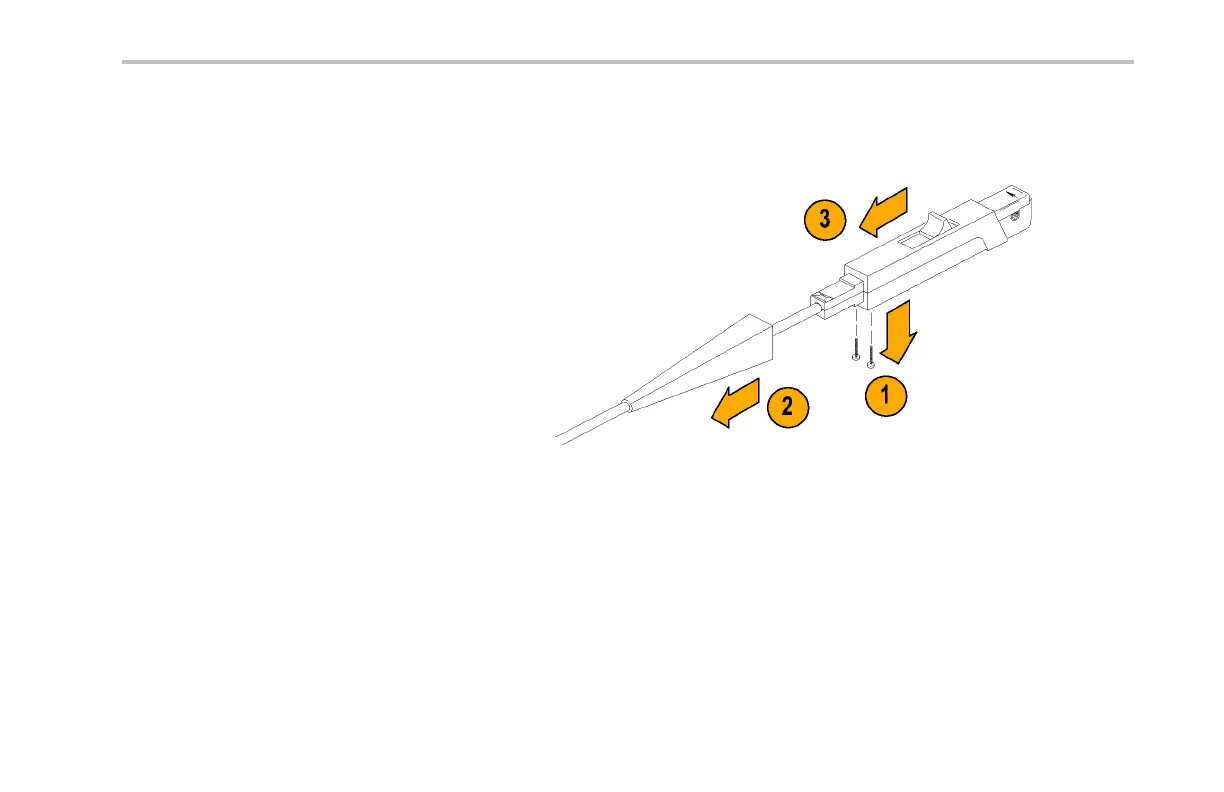

Disassemble the probe head as fo llows:
1. Remove the two screws from t he bottom
of th e probe .
2. Pull the strain relief boot back.
NOTE. The probe slide contains a tiny metal
ball. In step 3, be ca reful not to lose the ball by
accidentally letting it fall ou t.
3. Move the prob e slide assembly to the open
position. (See note above).
TCP0030 C urren t Probe Instruction Manual 69
