Installation
Probe Controls and Indicators
When the probe is powered on, all of the
indicator LEDs light briefly, and at least two
LEDs remain lighted— one to indicate the
current range selected and one to display the
Degauss/AutoZero status.
NOTE. Theprobewillretaintherangestate
and will restore it when it is power cycled.

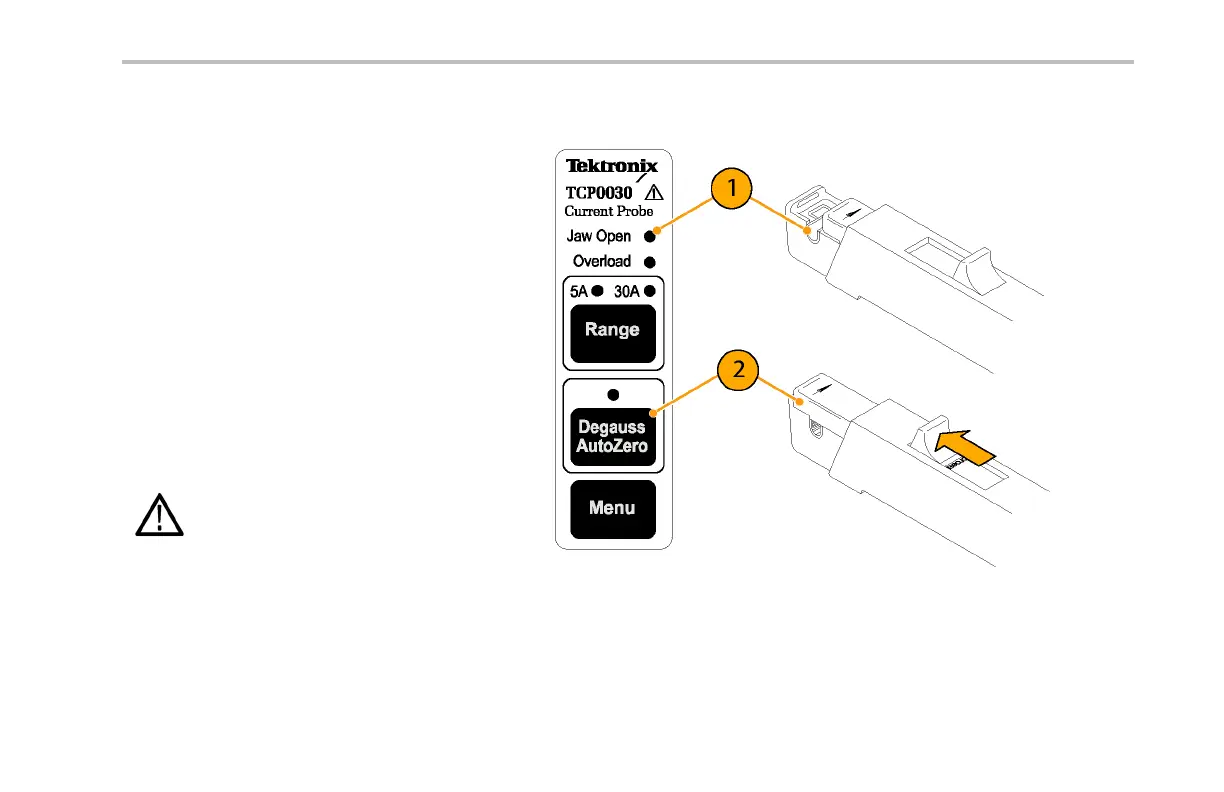

Jaw Open LED
1. If the Jaw Open LED glows, the probe
slider is unlocked.
2. Lock the probe slider to accurately measure
current o r to degauss the probe.
CAUTION. Do not measure conductors larger
than 3.8 mm diameter. Damage to the probe
jaws may result.
TCP0030 C urren t Probe Instruction Manual 5
