Application Examples

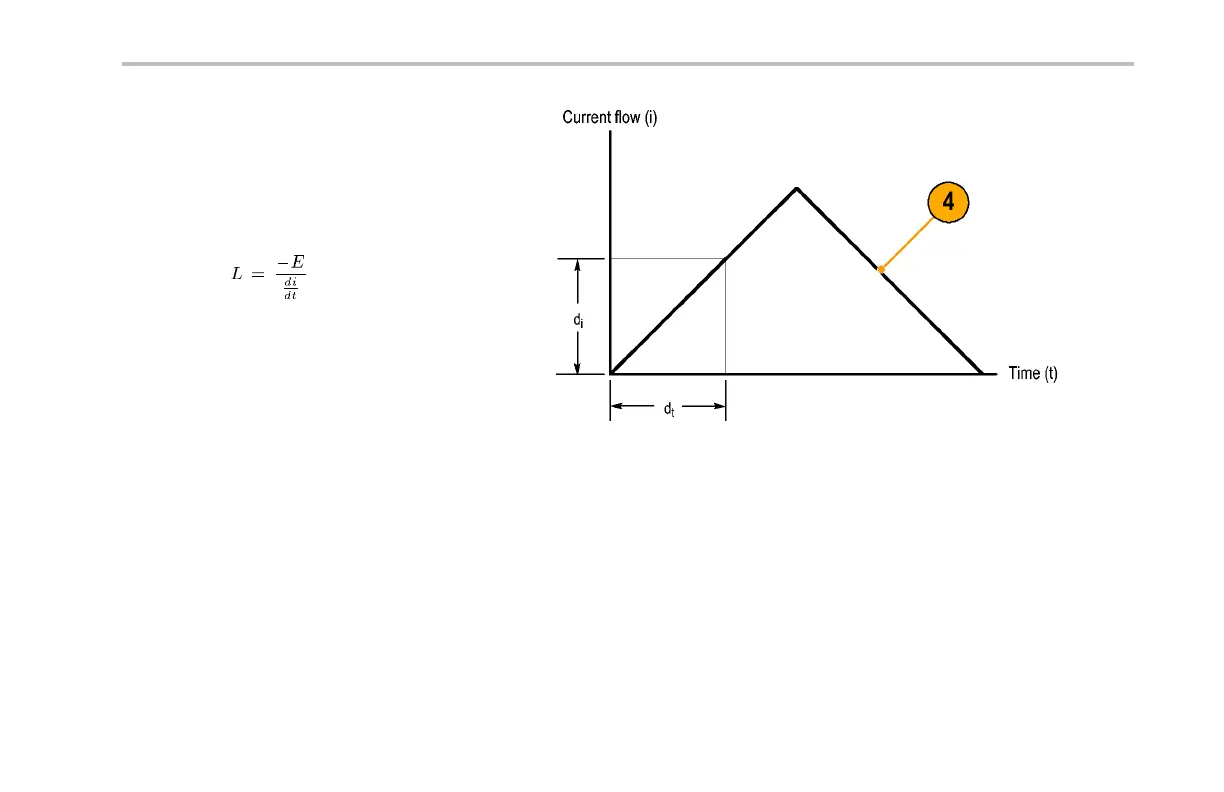

4. Measure the current ramp. The inductance
is effectively d efined by the s lope of the
current ramp shown here.
5. Calculate the inductance using the
following formula:
where:
L is the inductance in henries,
E is the voltage o f the pulse ge nerat or,
dt is the change in time, and
di is th e change in current.
TCP0030 C urren t Probe Instruction Manual 15
